Risco RisControl touch keyboard for LightSYS+ control panels RP432KPT000A
RSK RP432KPT000A
8485840091074

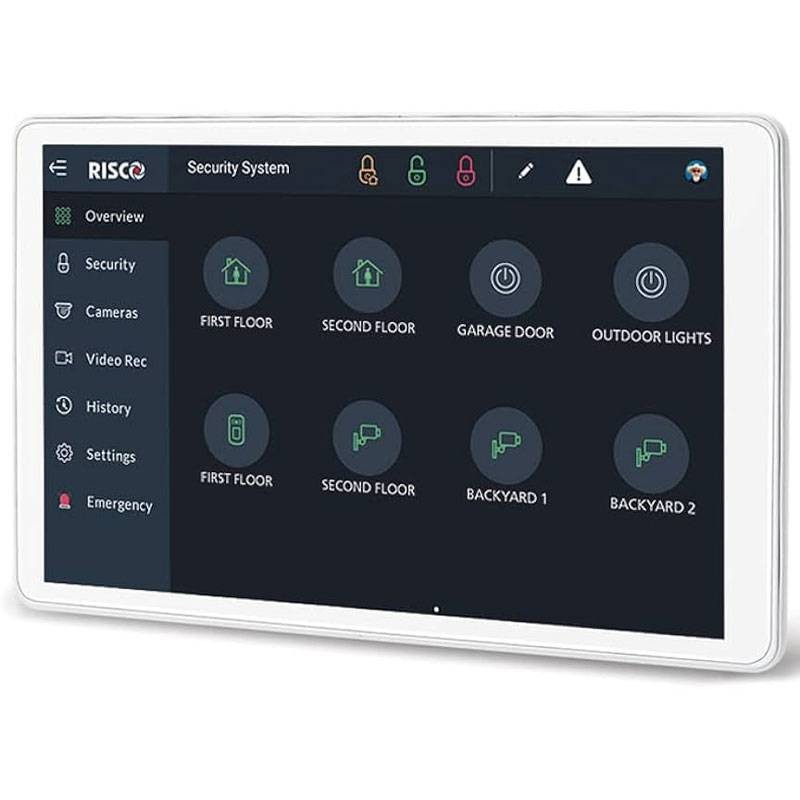

Risco RisControl RP432KPT000A high-resolution 8-inch touch keyboard. Compatible with LightSYS+, LightSYS2 and ProSYS Plus. Supports VUpoint video verification.
-
8-inch high-resolution touchscreen display
-
Wi-Fi connection for updates and cloud
-
Grade 3 certified
-
Supports VUpoint video verification (Live and Recorded)
-
Individual user customization
-
Removable connector for easy wiring
-
Automatic software updates via Wi-Fi
-
Complete control of RISCO systems from a single interface
€235.99
Items Available: 4
Frequently bought together
Risco RisControl RP432KPT000A Touch Keyboard for RISCO control panels.
RisControl is an 8-inch, high-resolution touchscreen keyboard that offers an intuitive and easy-to-use interface. With RisControl, the user can control all of Risco Group's alarms and cloud-based solutions from a single access point. This keypad offers a clear overview of system status, easy on/off functionality, and the ability to view live video and recordings through the VUpoint Video Solution.
With a design that fits any environment, the keypad is ideal for residential and commercial applications and offers a perfect opportunity to upgrade and keep your customers happy.
The keypad functions are presented intuitively allowing users to learn the security system in no time.
RisControl communicates via Risco Bus (RS-485) with the control panel. Communication with Risco Cloud is via Wi-fi. The touchscreen keypad is built for quick and easy installation with a mounting bracket and removable connector for simplified wiring.
Up to 48 RisControl keypads can be installed on ProSYS Plus. The touchscreen keyboard is supported by ProSYS Plus firmware version 1.4.
Total and intuitive control of your security system
The RisControl RP432KPT000A is an 8-inch touchscreen keyboard designed to provide a simple and complete user experience. With its intuitive interface, it allows you to arm/disarm the alarm, view real-time system status, and access RISCO cloud features directly and centrally.
Integration with VUpoint Video Verification
Fully supports the VUpoint solution to view live video or recordings directly from the touch panel. This allows users to have immediate visual control and verify any critical situations or false alarms.
Compatibility and simplified installation
The RisControl keypad is compatible with:
-
LightSYS+
-
ProSYS Plus (with firmware v1.4 or higher)
-
LightSYS2 (with latest available firmware)
Quick installation with included mounting bracket and removable connector that greatly simplifies wiring. Can also be easily mounted in environments with multiple keypads: up to 48 RisControl on ProSYS Plus.
Cloud connection via Wi-Fi
Communication with the RISCO Cloud is via Wi-Fi connection, which enables automatic software updates, remote monitoring, and a built-in smart experience.
RISCO Keyboard Technical Specifications
| Feature | Detail |
|---|---|
| Product Code. | RP432KPT000A |
| Type | Touchscreen keyboard |
| Display | 8" high resolution touchscreen (800x1280) |
| Speaker | 8 Ohm / 1 W |
| Wi-Fi | 802.11 b/g/n 2.4 GHz |
| System interface | RS-485 |
| Protection | Tamperproof tamper |
| Power supply | 13V ±10% |
| Power consumption | 8W |
| Central compatibility | LightSYS+, ProSYS Plus (fw ≥ 1.4), LightSYS2 |
| Central communication | RISCO Bus (RS-485) |
| Cloud communication | Wi-Fi |
| VUpoint Support | Yes - Live and Recorded Video |
| Cloud Functionality | Access to all RISCO smart functions |
| Certification | EN Grade 3 |
| User customization | Yes |
| Technical programming | Not supported by keyboard |
| Installable keyboards | Up to 48 on ProSYS Plus |
| Mounting | Bracket and quick connector included |
| Dimensions (W x H x D) | 208 x 129 x 24 mm |
| Weight | 500 g |
| Operating temperature range | -10°C to 55°C |
There are no reviews
Data sheet
- Type: Keyboards
