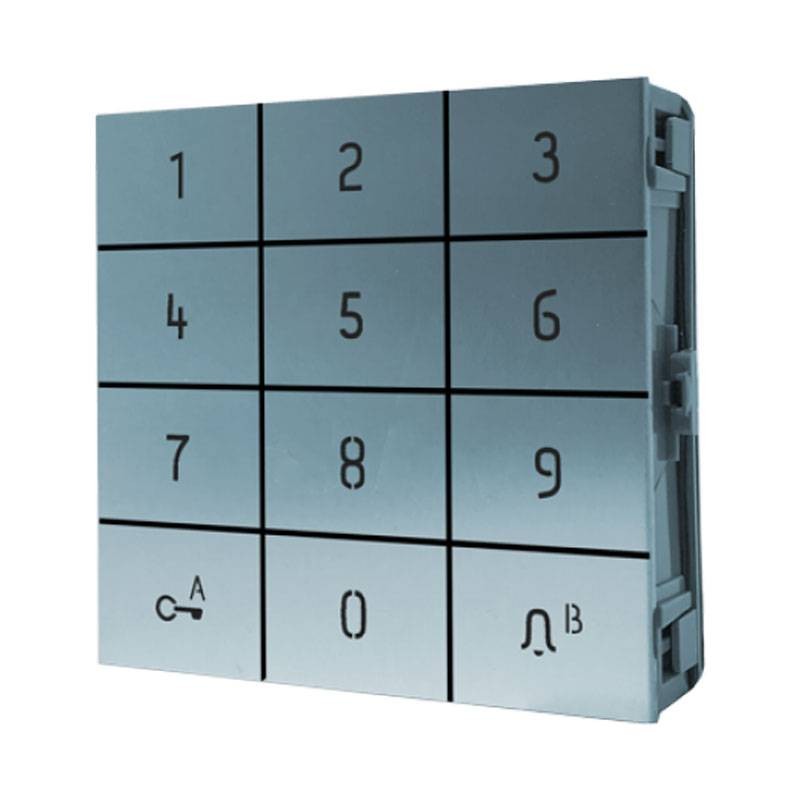

Comelit Ultra 12 Button Number Keypad Module 12V DC IP65 UT9279M
COE UT9279M
8023903400151
Comelit Ultra Number Keypad Module is an advanced solution for access control and call management within video door entry systems. Compatible with a wide range of video door entry systems, the module enables the activation of on-board relays and interaction with audio or audio-video modules by entering access codes. Suitable for residential and business environments, it offers a broad feature set for access control and secure user interaction, with the following features:
-
Power supply: 12V DC (power supply from video intercom bus or external power supply)
-
Maximum power consumption: 3.3W
-
Number of door opener codes: Up to 4000
-
Number of inputs/outputs: 2 inputs, 2 outputs
-
Communication: Micro-USB port, Wiegand 4 bits for each digit entered
-
Degree of protection: IP65 (against dust and water jets)
€260.28
Items Available: 5
Frequently bought together
Comelit Ultra 12 Button Number Keypad Module
The Ultra Number Keypad Module is designed to simplify access control and improve interaction with video door entry systems. With adjustable backlighting and the ability to program up to 4000 access codes, users can easily manage door access as needed.
Advanced features
Each access code can be associated with 4 different actions, and codes can be configured to be permanent, consumable, or with a validity date. Each action can trigger specific operations, such as door control, doorbell ringing, and other system functions. In addition, the module has a comprehensive event log that allows you to monitor and store up to 1275 events, such as the activation of codes, the user who used them, and the users called.
Management via software
Programming and management of the module can be easily done through ViP Manager software, which allows the system to be configured and customized easily and efficiently. In addition, thanks to the Micro-USB port and the ability to interface via Wiegand, the module can be easily integrated into existing access control systems.
Rugged design and outdoor resistance
With an IP65 and IK08 vandal-resistant rating, the module is perfect for use in outdoor or tamper-prone environments, maintaining functionality even in harsh weather conditions. Resistant to temperatures ranging from -25°C to +55°C, the device is suitable for installation in any environment.
Technical Specifications Comelit Keypad Module
General Data
| Type | Modular |
| Height | 90 mm |
| Width | 100 mm |
| Depth | 35 mm |
| Weight | 400 g |
| Coating material | Polycarbonate, Anodized aluminum |
| Color | Aluminum |
| Flush mounting | Yes, with dedicated accessory |
| Wall mounting | Yes, with dedicated accessory |
Compatible Systems
| Audio/video Simplebus 2 art. 4888C | Yes |
| Audio/video Simplebus 2 art. 1210/1210A | Yes |
| Audio Simplebus 2 art. 1210/1210A | Yes |
| Audio Simplebus 1 | Yes |
| ViP | Yes |
Electrical Characteristics
| Power supply type | From video intercom bus or external power supply |
| Power supply voltage | 1233 VDC, 12 VAC |
| Maximum power consumption | 3,3 W |
| Current consumption with 1 relay activated | 75 mA |
| Current consumption with 2 relays activated | 100 mA |
Hardware Features
| Call type | Digital |
| Button type | Mechanical |
| Number of buttons | 12 |
| Backlighting | White or off |
| Terminals | RK, CK, GND, NO1, NC1, COM1, NO2, COM2, V-, V+, D1, D0, IN, GND |
| Number of inputs | 2 |
| Number of outputs | 2 |
| Type of outputs | C-NO-NC relays (4A@1224 VAC/VDC, 10A inrush) |
| Communication ports | Micro-USB, 1 x Wiegand |
Environmental and Compliance Features
| IP Rating | IP65 |
| Degree of protection IK | IK08 |
| Operating Temperature | -25°C TO +55°C |
| Operating humidity | 25% ÷ 95% RH |
| Environmental class | IV |
Main Functions
| Door opener | Yes |
| Number of auxiliary relays | 2 |
| Local door opener input | Yes |
| Access control via code | Yes |
| Number of door opener codes | 4000 |
