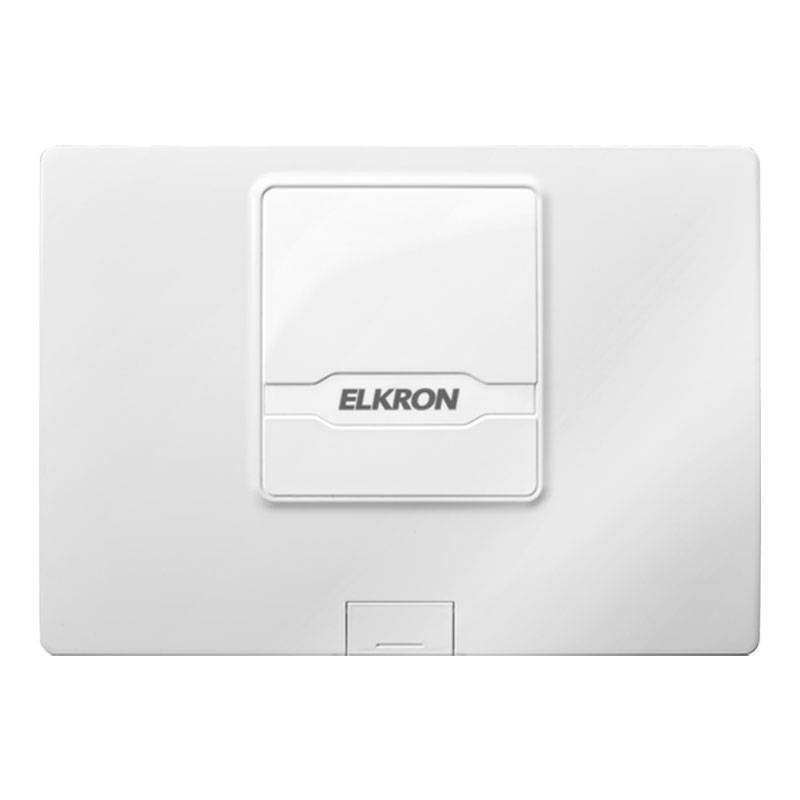

Central unit for alarm, home automation and video surveillance systems, ideal for applications in residential, private, commercial or public facilities. Scalable structure with bus architecture , native LAN connection with possibility of adding optional communication modules. Designed for extreme ease of commissioning and installation flexibility.



Features:

• Max no. points (in/out) manageable by the system: 40
• 1 +SR output for powering self-powered devices
• 1 RS485 bus
• Partialization up to 8 sectors
• Management via scenarios: max 20
• Max no. events in memory: 1000
• Max no. of users/keys: 50/50
• Switching power supply: 1.5 A
• Dimensions: 238x340x90 mm (H-L-P)



Specifications:

• Maximum CPU current consumption: 130 mA / 14.4 V
• Nominal battery charging voltage: 13.8 V
• Max current supplied for battery charging: 0.7 A
• Maximum battery charging time 80%: 72 hours
• Battery discharge threshold: 11.5 V
• Overvoltage protection threshold: 18 V
• Maximum current for external devices: Grade 2 autonomy 12 hours 500 mA
• Rated voltage at +SR terminal (2) 14.4 V
• Max current deliverable from the +SR terminal (with overload protection) 200 mA
• Rated voltage at the +BUS terminal 13.8 V
• Max current deliverable from the +BUS terminal (with overload protection) 1.1 A
• Rated voltage at terminals +V1, +V2 13.8 V
• Max current deliverable from terminals +V1,+V2 (with overload protection) 750 mA
• Max. ripple on outputs +SR, +, +V1, +V2 100 mVpp
• Max current deliverable from PrIO terminals 40 mA
• Max current deliverable from terminal U2 100 mA
• Inputs 6
• Sabotage Input (24h) 1
• Relay outputs: 1 / O.C.: 1
• +SR output (self-powered disp., e.g., siren) 1
• PrIO programmable input/output 2
• Operating temperature (Environmental class II) -10°C +40°C
• Average operating relative humidity 75%
• Storage temperature -20°C +60°C -20°C +60°C
• Battery housing 12 V/7.2 Ah
• Degree of protection IP30/IK06
