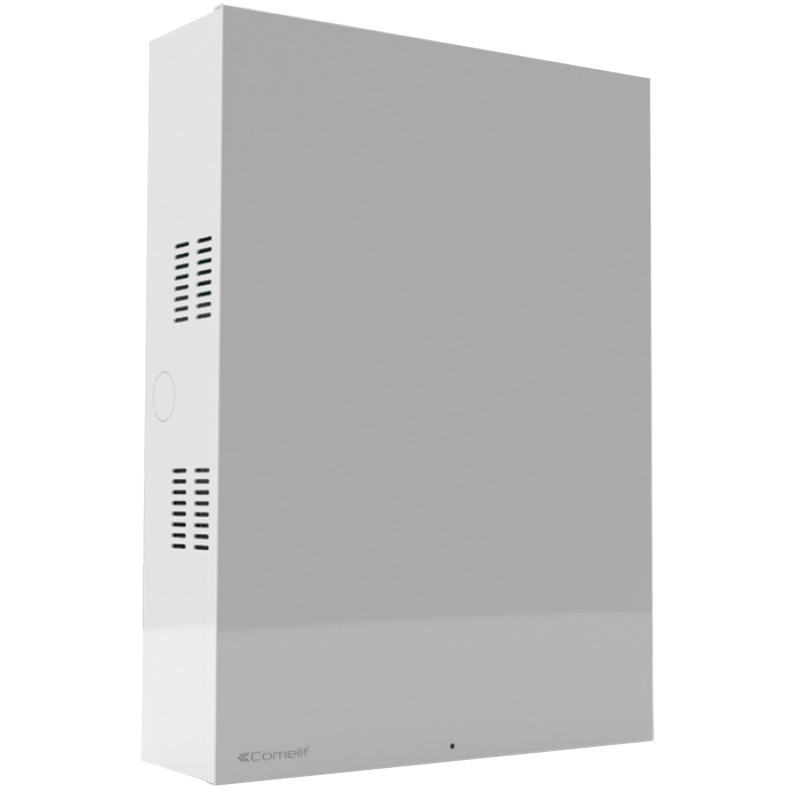

Central burglar alarm Comelit Vedo 200 with metal box VEDO200M
COE VEDO200M
8023903309089
Central burglar Comelit Vedo 200 in metal container wall with 5A switching power supply.
€760.47
Items Available: 1
Frequently bought together
Equipped with:
- 8 zones on board, expandable to 200 mixed wired/radio zones
- 1 zone 24 hours
- Double function for up to 400 zones
- Integrated PSTN telephone communicator
- RS 485 serial bus for connection of additional modules
- 1 relay output and 2 open collector outputs.
Manages up to 16 areas with 32 different insertion programs (scenarios) and daily timers, 50 IN /OUT expansions, 16 proximity readers, 16 Safe Key keyboards, 4 Safe Touch, 4 Planux/Mini Touch Manager and 8 radio receivers.
Self-resetting fuse for siren power supply, RS485 serial bus and sensor power supply.
Equipped with USB port for connection to PC with Safe Manager configuration software.
All zones are configurable as NC, NO, single, double and triple balanced and as double zone.
Features:
- Number of inputs on board (n°) 8
- Double function
- Maximum number of zones with Double function (n°) 400
- Type of balancing NC, NO, single, double, triple, double zone, double zone EOL
- Number of radio zones (n°) 200
- Number of outputs (n°) 100
- Number of relay outputs on board the control unit 1 (3A@24VDC)
- Number of TC outputs on board (n°) 2
- Number of areas (No.) 16
- Number of user codes (No.) 200
- Number of installer codes (No.) 6
- Number of partitions managed (No.) 2
- Number of switching programs (scenarios) (No.) 32
- Number of time slots (no.) 32
- Number of timers (No.) 32
- Audio messages - Text to speech (No.) 48
- Central unit programming USB, LAN
- Telephone numbers managed by the digital communicator (No.) 4
- Telephone numbers managed by the voice communicator (No.) 16
- Type of connection bus RS485
- Maximum number of e-mail addresses (No.) 16
- Integrated digital communicator
- Voice guidance interface management
- Vedo app
- Safe Manager software
- Dimensions: HxW 445x320x90 mm
- Weight: 5,5 Kg
- Operating temperature (°C) -10 ÷ 55
- Metallic container
- Tamper protection
- 5A power supply
- Number of IN/OUT expansions (n°) 50
- Number of proximity readers (No.) 16
- Number of Safekey keypads (No.) 16
- Number of Safetouch keypads (No.) 4
- Number of supervisors (No.) 4
- Number of radio receivers (No.) 8
- Number of PAL/IP image conversion modules (no.) 4
- Number of cameras managed (no.) 32
- Audio module
- GSM module
- IP module
- Power supply voltage 100÷240
- Number of auxiliary power outputs on board (n°) 2
- Type of battery provided 12V / 18Ah.
There are no reviews
Data sheet
- Type: Control units
- System: With Wires
