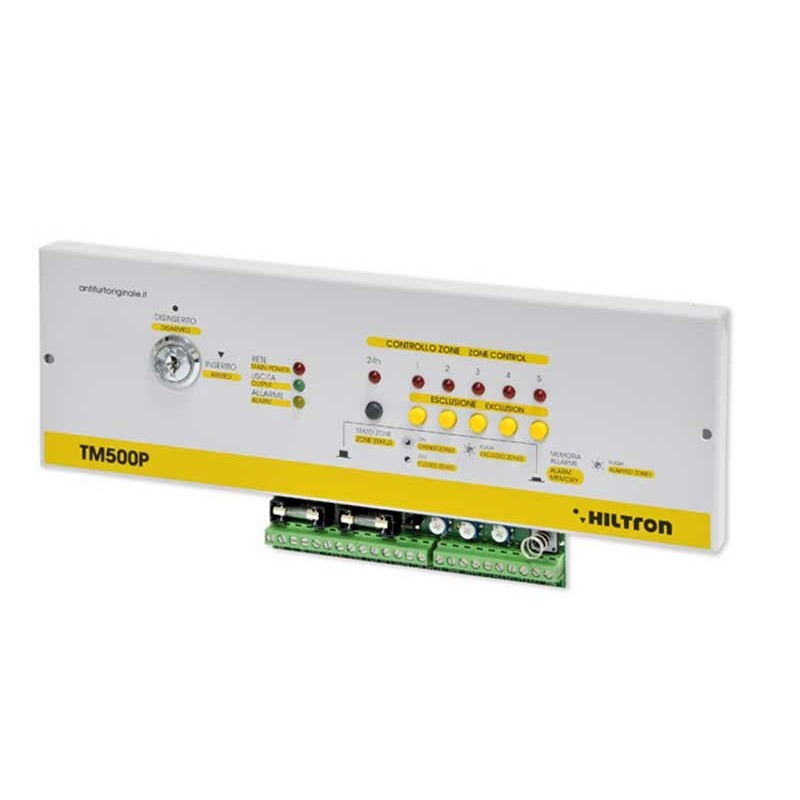

HILTRON central Panel burglar alarm 5 zones + 24h


C1A TM500P 8056450411202

HILTRON central Panel burglar alarm 5 zones + 24h

Request info about this product
€73.20
Tax included
30 items in stock
qty

In stock
  • Buy it with Express shipping within
    and receive it within Tuesday, 9 March
  • Buy it with Express shipping within
    and receive it within Thursday, 4 March
  • Buy it with Express shipping within
    and receive it within Thursday, 4 March
Secure Payment
Easy return within 14 days
100% Guaranteed Quality

LED of presence control, network,time of exit,alarm state,status, zones,alarm memory
Protection zones in the immediate 4
Protection areas delayed 1
Areas of protection antisabotage "24h" 1
Rated supply voltage 12vdc ±10%
Rated service output 12vdc ±10%
Normal absorption 50mA
Maximum power consumption 140mA
Maximum current output sirens 3A (with battery connected)
Maximum current in service output 650mA
Alarm duration adjustable 180 ÷ 600sec.
Fuse on the primary of the transformer 250mA L 250V type F
Fuse on the secondary of the transformer 2A L 250V type F
Fuse output sirens 3A fast 5x20mm
Fuse output supply 1A fast type 5x20mm
Outputs activation siren Ext/Int,positive the system is plugged in,relay output on alarm
Output time adjustable 5 to 90 sec.
Entry time adjustable 5 to 90 sec.
The outer container iron
Operating temperature +5°C ÷ +40°C
Dimensions (w) 285mm
Dimensions (h) 95mm
Dimensions (W) 17mm
Weight 0,571 Kg

Data sheet

Type
Central
System
With Wires
