Elkron burglar alarm kit with MP3040 control panel and keypad 80KT0100111
EKO 80KT0100111
8034034448165

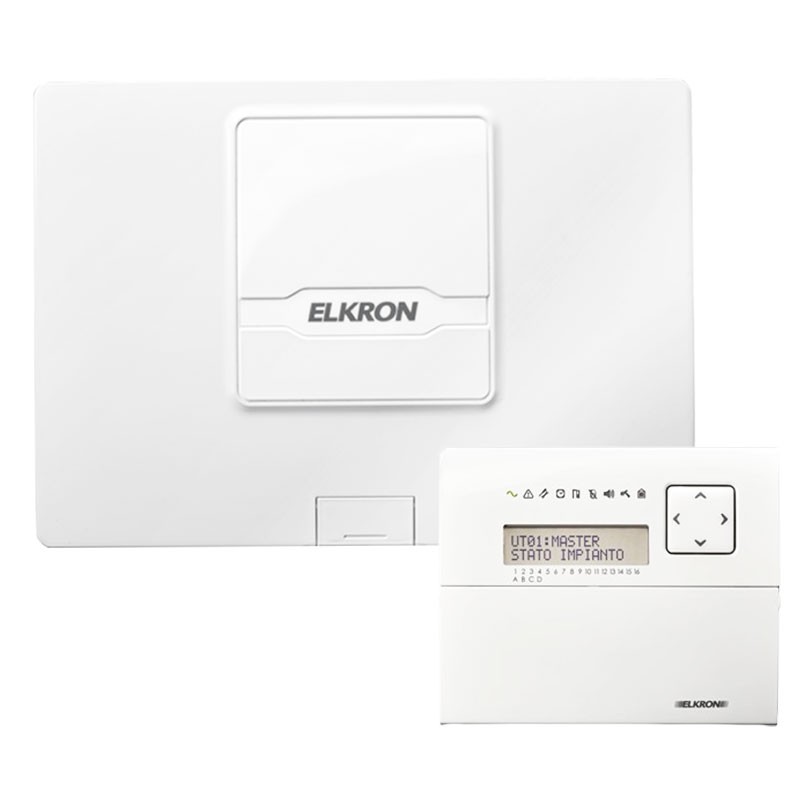

Elkron burglar alarm kit consisting of:
- 1 Intrusion control panel with integrated LAN port, multifunction MP3040
- 1 Keypad with LCD display KP3000-D code 80KP0100211
€399.69
Items Available: 42
: 2
Frequently bought together
Specifications of parts in the Kit:

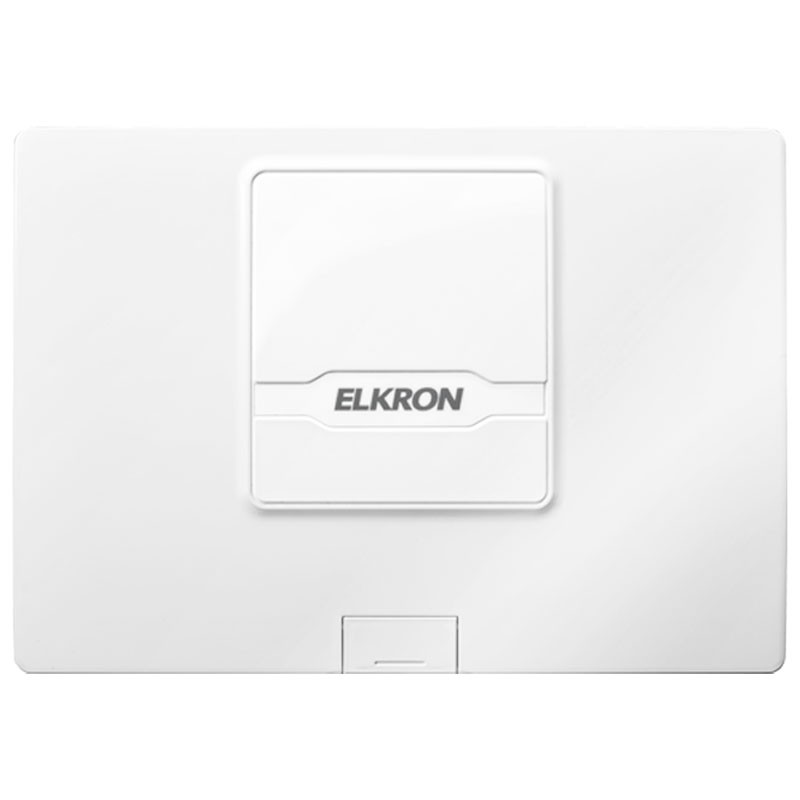

MP3040 Contral Unit: Contral Unit for alarm, Home Automation and Video Surveillance systems, ideal for applications in residential, private, commercial or public facilities. Scalable structure with bus architecture , native LAN connection with possibility of adding optional communication modules. Designed for extreme ease of commissioning and installation flexibility.
- 6 inputs + 2 "Prio" points + 1 24h input
- 2 outputs : 1 relay + 1 open collector
- Max no. points (in/out) manageable by the system : 40
- 1 output +SR for powering self-powered devices
- 1 RS485 bus
- Available ports : LAN + USB B
- Partialization up to 8 sectors
- Management by scenarios : max 20
- Max no. events in memory : 1000
- Max no. users/keys : 50/50
- Integrated web server
- Switching power supply. 1,5 A
- Housable accumulator: 12 Vdc - 7 or 9Ah
- Dimensions: (H x W x D): 238 x 340 x 90 mm
- EN50131 grade 2 certification
Specifications:
- Maximum CPU current consumption 130 mA / 14.4 V
- Rated battery charging voltage (1) 13.8 V
- Max current supplied for battery charging 0.7 A
- Maximum battery charging time 80% 72 hours
- Battery discharge threshold 11.5 V
- Overvoltage protection threshold 18.0 V
- Maximum current for external devices: Grade 2 autonomy 12 hours 500 mA
- Rated voltage at +SR terminal (2) 14.4 V
- Max current deliverable from the +SR terminal (with overload protection) 200 mA
- Rated voltage at the +BUS terminal 13.8 V
- Max current deliverable from the +BUS terminal (with overload protection) 1.1 A
- Rated voltage at terminals +V1, +V2 13.8 V
- Max current deliverable from terminals +V1,+V2 (with overload protection) 750 mA
- Max. ripple on outputs +SR, +, +V1, +V2 100 mVpp
- Max current deliverable from PrIO terminals 40 mA
- Max current deliverable from terminal U2 100 mA
- Inputs 6
- Sabotage Input (24h) 1
- Relay outputs: 1 / O.C.: 1
- +SR output (self-powered disp., e.g., siren) 1
- PrIO programmable input/output 2
- Operating temperature (Environmental class II) -10°C +40°C
- Average operating relative humidity 75%
- Storage temperature -20°C +60°C -20°C +60°C
- Compliance degree EN 50131 -3 -6 2
- Compliance EN50136 (3) SP6, DP2
- Battery housing 12 V 7.2 Ah

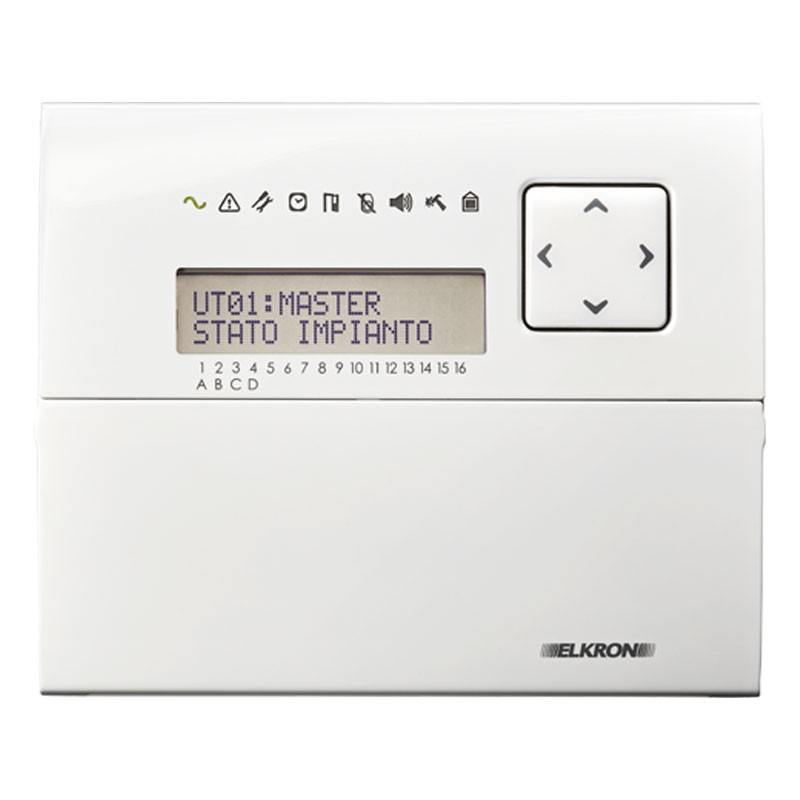

Keyboard with Display KP3000-D: The device is the local interface of the MP3000 system. The menu navigation structure and indicator LEDs, provide the user with ease of use.
- 2 x 16 display with contrast and brightness adjustment
- 9 signaling LEDs
- 7 menu navigation keys
- 12 alphanumeric keys including 3 for Fire, Rescue, Panic alarm command
- Buzzer with adjustable sound level
- 2 PriO points (IN/OUT) on board
- Opening and removal protection
- Dimensions (W x H x D): 151 x 125 x 29 mm
- EN50131 grade 2 class II certification
There are no reviews
Data sheet
- KIT: Burglar alarm kits
- Type: Control units
- System: With Wires
- Installation: Internal
