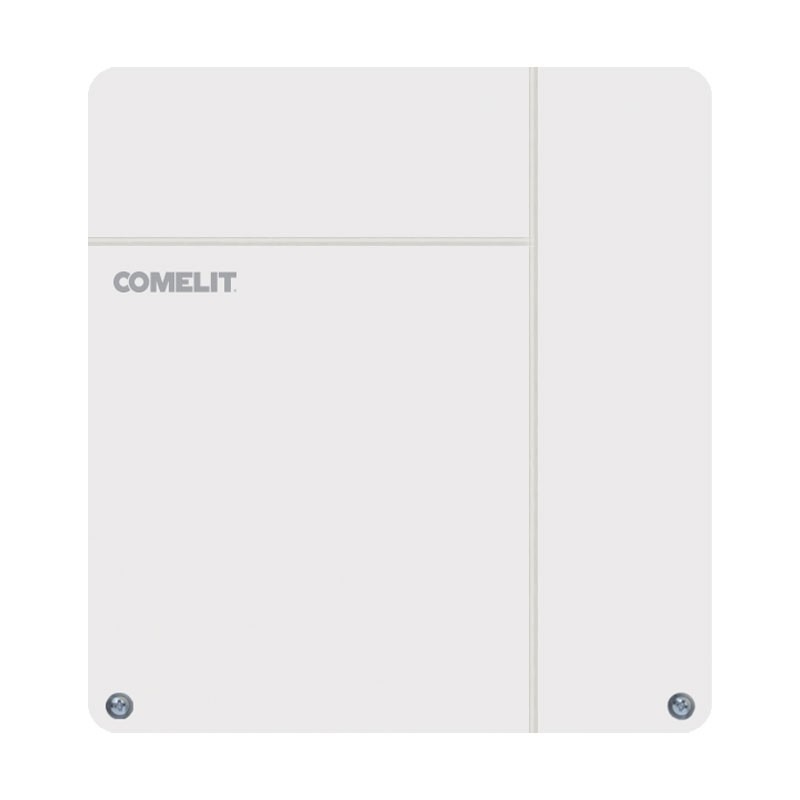

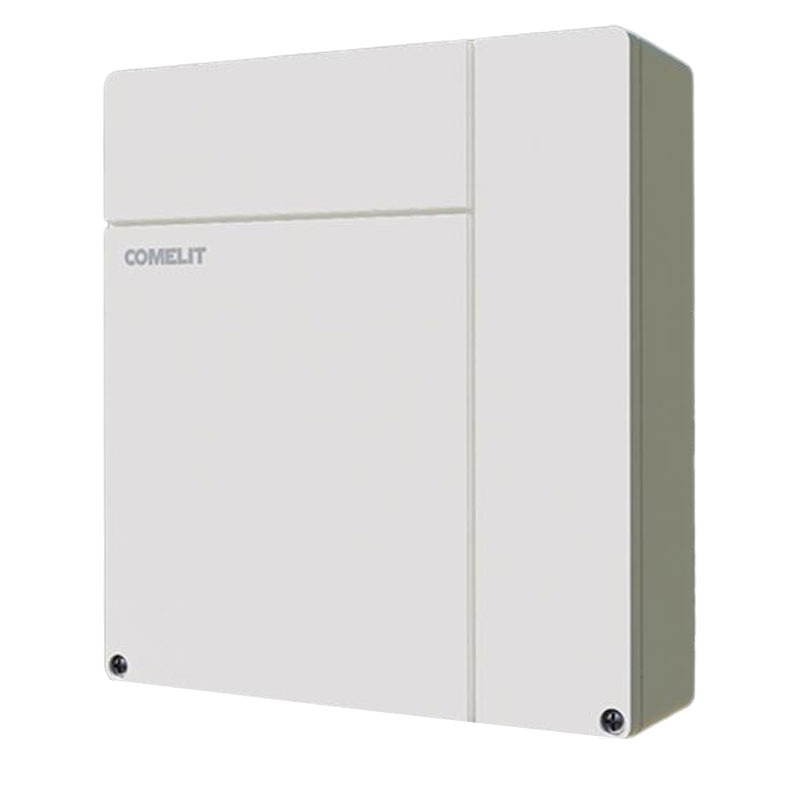

Comelit burglar alarm control panel Vedo series 10 zones expandable up to 18 zones
COE VEDO10
8023903292428
Comelit VEDO series burglar alarm control panel with the following features:
- In flameproof ABS wall-mounted case with 1.5 amp switching power supply.
- Equipped with 8 zones on board, expandable to 18 (2 zones in keypad and 8 radio zones), 1 24-hour zone
- Built-in PSTN telephone communicator, RS485 serial bus for connecting additional modules
- 1 relay output and 2 open collector outputs
- Manages up to 2 areas with 2 different entry programs (scenarios) and daily timers, 2 proximity readers, 2 Safe Key keypads, 1 Safe Touch, 1 Planux/Mini Touch Manager and 1 radio receiver
- Self-resettable fuse for siren power output, RS485 serial bus and sensor power supply
- Equipped with USB port for connection to PC with Safe Manager configuration software
- All zones are configurable as NC, NO, single, double and triple balanced
- Dimensions (W x H x D) 260 x 280 x 80 mm
- Applied standard: EN50131
- Pollution degree: degree 2
€146.93
Items Available: 6
Frequently bought together
Main features:
- Number of total inputs 8 expandable to 18 (wired + radio)
- Number of on-board inputs (no.) 8
- Balance type NC, NO, single, dual, triple, dual zone, dual zone EOL
- Number of radio zones (no.) 8 Number of outputs (no.) 7
- Number of relay outputs on board the control unit 1 (3A@24VDC)
- Number of TC outputs on board the central unit (no.) 2 Number of areas (no.) 2
- Number of user codes (no.) 8
- Number of installer codes (no.) 3
- Partitions managed (no.) 2
- Number of insertion programs (scenarios) (mm) 8
- Number of time slots (no.) 4
- Number of timers (no.) 4 Audio messages - text to speech (no.) 20
- Central unit programming USB, LAN
- Marks/certifications EN50131 grade 2, Incert
Communication:
- Telephone numbers managed by the digital communicator (no.) 4
- Phone numbers managed by the voice communicator (no.) 16
- Type of RS485 connection bus
- Maximum number of e-mail addresses (no.) 16
- Integrated digital communicator Yes
- Voice guidance interface management Yes
SOFTWARE/FIRMWARE Features:
- Vedo App
- Safe Manager software
HARDWARE Features:
- Dimensions: Height (mm) 275 - Width (mm) 255 Depth (mm) 75
- Weight: 1.7 kg
- Operating temperature: -10/+55°C
- Coating type ABS
- Tamper protection Yes
- Power supply: 1 Amp
Expansion modules on BUS:
- Number of proximity readers (no.) 2
- Number of safekey keypads (no.) 2
- Number of Safetouch keypads (no.) 1
- Number of supervisors (no.) 1
- Number of radio receivers (no.) 1
- Number of PAL/IP image conversion modules (mm) 2
- Number of cameras managed (no.) 16
Plug-in expansion modules:
- Audio module Yes
- GSM module Yes
- IP module Yes
Electrical characteristics:
- Supply voltage 100÷240
- Current supplied by power supply unit 1500
- Number of on-board auxiliary power supply outputs (no.) 2
- Type of battery provided 12V / 7Ah
Ottima centrale con programmazione avanzata da PC molto specifica
Ho comprato questo articolo perchè l'ho installato tante altre volte. Ottima centrale di allarme programmabile tramite tastiera e PC. Consigliato l'acquisto per piccole attività commerciali o abitazioni monofamiliare
buon prodotto conforme alla descrizione funziona perfettamente
Data sheet
- Type: Control units
- System: With Wires
