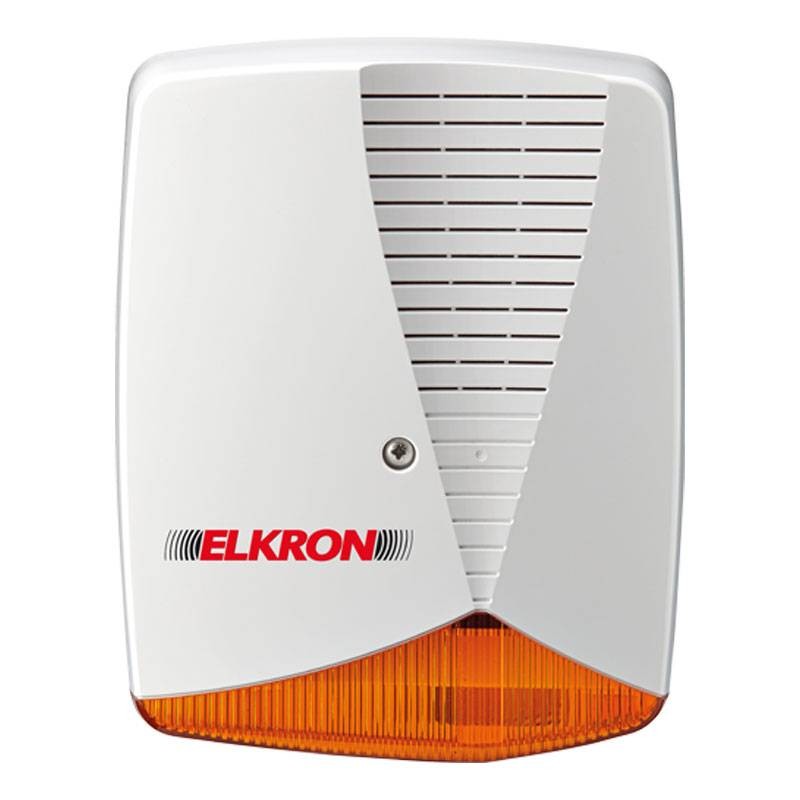

Elkron HPA700P external siren with self-powered flasher 80HP7A00211
EKO 80HP7A00211
Elkron HPA700P external siren, with self-powered flasher in plastic version:
Programmable functions:
- Time out sounded
- Input reference
- Alarm counting
- Scaffolding function
- Remote power detection
€75.25
Items Available: 34
: 2
Integrated LED technology flasher: combines longer life with lower power consumption, allowing longer battery life.
Two control inputs:
- AL: alarm command (closed to reference = rest; open = alarm)
- S: system status command (closed to reference = system off; open = system on)
- Opening and tear protection
The HPA700M has two additional signaling LEDs, which can be individually deactivated:
- The RED plant status LED
- The YELLOW fault LED (activated only when the system is deactivated).
The HPA700M siren also implements an active self-diagnosis function, which provides for checking the integrity of the battery, horn, flasher and protections module (if present), as well as the correct presence of the power supplied by the control panel.
Programmable functions:
TIME OUT SOUNDED:
- This function makes it possible to program the maximum delay after which, if the absence of the lockout signal persists, the siren will stop independently.
INPUT REFERENCE:
- This function allows programming the reference of inputs AL and S to positive or negative.
ALARM COUNTING:
- This function allows to enable a maximum number of 5 alarms in the 24h span, or allows to exclude counting, i.e., every time the lockout is missing, an alarm will be generated.
SCAFFOLDING FUNCTION:
- This function enables flashing (a double flash every 2.5 s) when the system is active (i.e., when there is no signal on terminal S).
REMOTE POWER DETECTION:
- In accordance with EN50131-4, the siren constantly monitors the presence of the power supply coming from the control panel and generates an audible notification if it fails
Features:
- Rated supply voltage 13.8 VDC , 14.4 VDC
- Max absorption at rest 7 mA
- Max absorption in alarm 1600 mA
- Flash absorption 6 mA
- Absorption protection module (optional) 6 mA
- Max. absorption from central unit 150 mA
- Sound pressure > 110 dB (A) @ 1 m
- Operating frequency 1400 ÷ 1600 Hz
- Maximum ringing time 15 minutes
- Flash color orange
- Flash blinking frequency 1 Hz
- Battery life with internal battery at rest 36 hours
- Low battery threshold 11.5 VDC
- Siren tamper contact 1A @ 24V
- Protections module tamper contact 50 mA @ 50 Vdc ; R typ = 20 ? (solid state relay)
- Environmental class IV
- Certified operating temperature -25°C to +70°C
- Maximum allowable humidity 93%
- Certified enclosure degree of protection IP44 / IK07
- Outer cover material PC-ABS self-extinguishing
- Flash material PC-ABS self-extinguishing
- Optional inner cage material 8/10 galvanized sheet metal
- Bottom material PC-ABS self-extinguishing
- Protective grid material ( optional) galvanized sheet metal 8/10
- 12V allocable accumulator - 1.9 to 2.2 Ah
- Dimensions (W x H x D) 203 x 253 x 87 mm
- Weight (without battery) 1100 grams
- Tamper Anti-opening and removal
- Guaranteed performance level (EN50131-4) Grade 2
There are no reviews
Data sheet
- Type: Sirens
- System: With Wires
- Installation: External
