Elkron DK3000K-P Keystone Proximity Reader 80DK1400111
EKO 80DK1400111
8034034448721
Elkron DK3000K-P Keystone Proximity Reader:
-
Compatibility: MP3000 series control panels
-
Function: proximity reader to issue commands to the system
-
Keys supported: compatible with DK70 key
-
Installation: quick and easy, ideal for residential or commercial use
€46.94
Items Available: 7
: 4
Frequently bought together

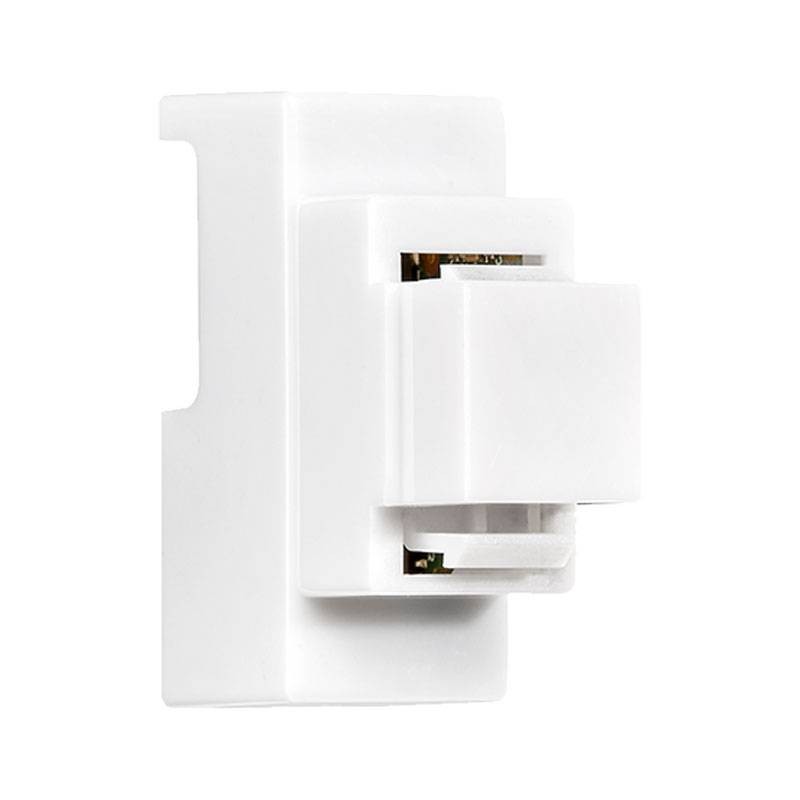

Elkron DK3000K-P Keystone Proximity Reader
The Elkron DK3000K-P Keystone Proximity Reader allows the user to interact with MP3000 series control panels quickly and intuitively. Using proximity technology, commands can be given without the need for direct physical contact, ensuring convenience and security.
The DK3000K-P is a control device (arming, disarming, scenario, etc.) prepared for the use of MIFARE DK70 series proximity keys. The proximity reader is connected to the control panel via RS485 BUS and is prepared for mounting in modular boxes. It has 2 PrIO points that can be individually programmed as input or output. The reader is made so that it can be inserted and used on any switch plate of the most common civil series that have the Keystone connection. The reader also features an audible signal (buzzer).
Compatible with DK70 keys, this device is ideal for controlling access and operations in residential, office or commercial facilities. Installation is simple and the reader easily integrates with the existing system, providing an immediate user experience.
Benefits
-
Ease of use: quick interaction with the MP3000 central unit
-
Security: access controlled via DK70 key
-
Compact and versatile: suitable for residential and commercial installations
| Feature | Value |
|---|---|
| Rated supply voltage | 13,8 V |
| Rated current consumption (single balance) |
15 mA (13.8 V) LEDs off 17 mA (13.8 V) LEDs on |
| Max current supplied on PrIO | 40 mA |
| Key compatibility | Mifare model DK70 |
| PriO points (IN/OUT) | 2 |
| Dimensions (W × H × D) | 50 × 40 × 22 mm |
| Weight | 19 grams |
| Certification | EN50131 grade 2 class II |
There are no reviews
Data sheet
- Type: Proximity readers
