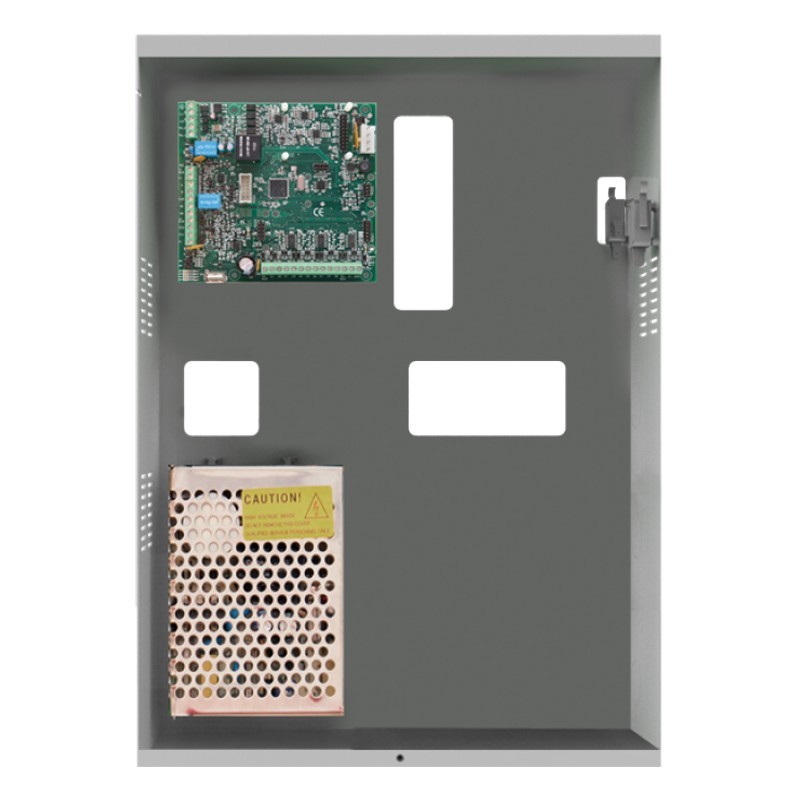

Comelit 13.8 VCC / 5A power supply unit in metal housing VEDOPSU5A
COE VEDOPSU5A
8023903293142
Comelit power supply 13.8 VCC / 5A in a white metal container certified EN50131 grade 2 complete with:
- 1 Open Frame switching power supply unit
- 1 Card on bus for power supply management.
Specific for Comelit Vedo intrusion detection systems.
€484.42
Items Available: 1
Component specifications:
- Switching power supply Open Frame, battery charger PB, input 90÷260 VAC / 50÷60 Hz, output 13.8 VDC / 5 A certified EN50131-6 grade 2
- Bus board for power supply management equipped with 2 RS485 buses for connection to the control unit and to act as bus isolator (opto-isolated), 4 programmable open collector outputs (programmed by default as power supply signalling), 2 auxiliary power supply outputs with 1.5 A self-resetting fuse, 8-pin dip-switch for addressing (8 power supplies maximum) and speed selection certified EN50131 grade 2
- Housing for 7 or 18 Ah battery
- Anti-tear and anti-opening tamper
- Dimensions (W x H x D) 315 x 440 x 100 mm.
There are no reviews
Data sheet
- Type: Power supplies
