Comelit Nexus radio alarm kit Wi-Fi 4G KNPIR
COE KNPIR
8023903478075
The Comelit NEXUS Wi-Fi 4G KNPIR radio alarm kit offers a complete, modern, and connected solution for the protection of homes and businesses, with a cloud-ready control panel and high-security wireless sensors.

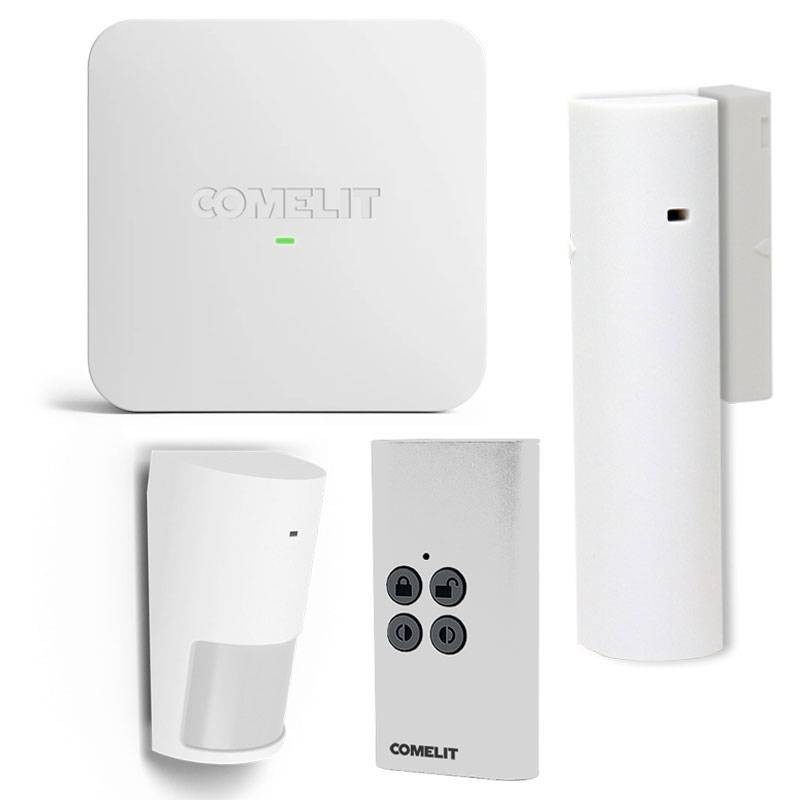

The kit consists of:
-
1 NEXUS RFNEXUS Control Panel Wi-Fi, Ethernet, 4G, Cloud management
-
1 RF1MCW Wireless Magnetic Contact, Auxiliary wired input
-
1 RF12PIR Indoor Infrared PIR Sensor
-
1 RF4KEYW Remote Control 4 configurable buttons Bidirectional
€320.85
Items Available: 13
: 1
Frequently bought together
Comelit NEXUS Wi-Fi 4G KNCAM alarm kit: intelligent and complete protection
The Comelit KNCAM kit is a modern alarm system designed to offer maximum security, ease of use, and advanced connectivity. Based on the RFNEXUS control panel, it integrates Wi-Fi, Ethernet, and 4G connectivity as standard, ensuring constant communication with the Comelit app and operation even in the absence of a home internet network. The system is fully manageable via the Comelit NEXUS App, which allows you to monitor the system status, receive push notifications, and activate/deactivate the alarm remotely via the cloud, without the need for complex configurations.
Quick and completely wireless installation
The kit operates through secure, bidirectional radio technology, making installation:
-
Without masonry work
-
Perfectly suitable even for already inhabited houses
-
Expandable with other Comelit Nexus sensors
Programming is simple, and the control panel is already set up for quick configuration.

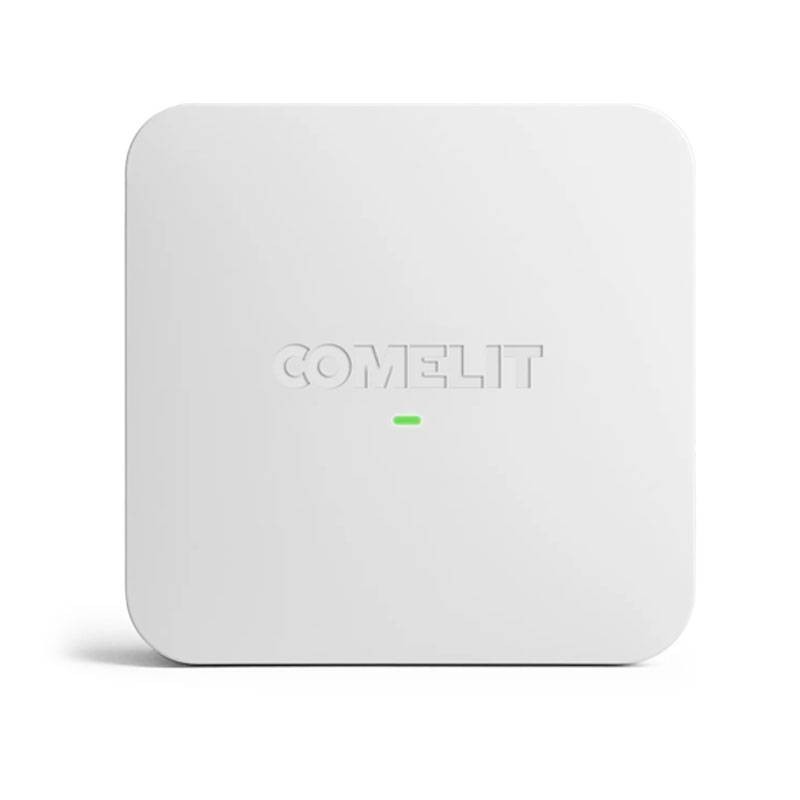

32 Zone RFNEXUS Radio Control Panel
The Nexus wireless alarm control panel allows management of up to 100 radio devices, with 32 alarm zones, which can become 96 zones if the auxiliary inputs of the magnetic contacts are used. Nexus offers integrated Wi-Fi, LAN, and LTE interfaces. Fully configurable from the Comelit Nexus App, which acts as the system supervisor. It can manage up to 64 different users, 32 remote controls, and 8 areas. It comes with a wall mount, battery, and power cable included.
| MAIN FEATURES | |
|---|---|
| Wireless technology | Bidirectional, BeaconPlus |
| Frequency band | 868.05 ÷ 869.95 MHz |
| Open field range | Up to 1700 m |
| Maximum number of areas | 8 |
| Radio zones | 96 (max 32 sensors) |
| Radio outputs | 64 |
| Sensor supervision | Yes |
| Managed remote controls | 32 |
| User codes | 32 |
| Video verification | Yes |
| Maximum number of PIR-Cam | 4 |
| Storable events | 1024 |
| Tamper | Anti-tampering / Anti-tear |
| Automations | 10 programmable scenarios (up to 15 actions per scenario) |
| Live cameras | Up to 4 @ Full HD, H.264, RTSP |
| IP camera recording | Up to 4 @ Full HD, H.264, RTSP |
| COMMUNICATION | |
| TCP/IP channel | Yes |
| Connection type | Wi-Fi IEEE 802.11 b/g/n, 2.4 GHz |
| Protocols for reporting | Voice, SMS, SIA IP, CID IP, Push APP |
| Remote control | Dedicated app |
| GSM / GPRS / 3G / 4G channel | Yes |
| SIM type | Micro-SIM (not included) |
| Access Point function | Yes |
| SOFTWARE / FIRMWARE FEATURES | |
| Management app | Nexus |
| Onboard installation wizard | Yes |
| Maximum number of managed Apps | 64 |
| HARDWARE FEATURES | |
| Mounting | Wall bracket (included) |
| Coating material | Plastic |
| Operating temperature | -10 ÷ +40 °C |
| Height | 160 mm |
| Width | 160 mm |
| Depth | 31 mm |
| Weight | 630 g |
| ELECTRICAL FEATURES | |
| Power supply | 90 ÷ 240 VAC / 50 ÷ 60 Hz |
| BATTERIES | |
| Number of batteries | 1 |
| Battery type | 3.6 VDC / 4250 mAh |
| Battery included | Yes |

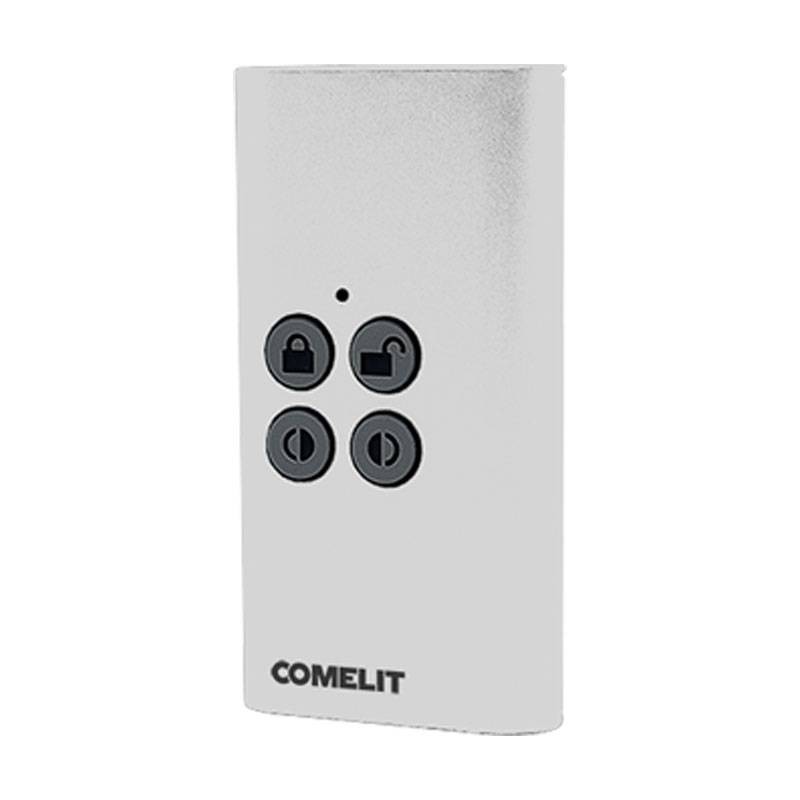

4-button white remote control RF4KEYW
Compact bidirectional 4-button remote control, with high radio range and configurable buttons. Allows viewing of the system status and feedback on commands sent to the control panel. Complete with retaining strap, White color.
| MAIN FEATURES | |
|---|---|
| Wireless technology | Bidirectional, BeaconPlus |
| Frequency band | 868.05 ÷ 869.95 MHz |
| Number of keys | 4, configurable |
| TX range (open field) | 600 m |
| Key lock function | Yes |
| EN standards | EMC immunity EN50130-4 |
| Signal LED | Bicolour red / green |
| Compatibility | RF10VEDO, RF32VEDO, HUB32LCD (SecurHUB), RFNEXUS |
| HARDWARE FEATURES | |
| Material | Plastic |
| Colour | White |
| Operating temperature | -10 ÷ 50 °C |
| Height | 66 mm |
| Width | 35 mm |
| Depth | 12 mm |
| ELECTRICAL FEATURES | |
| Low voltage threshold | 2.6 V |
| BATTERIES | |
| Battery type | 1 × CR2450 |
| Battery included | Yes |
| Battery level control | Yes |

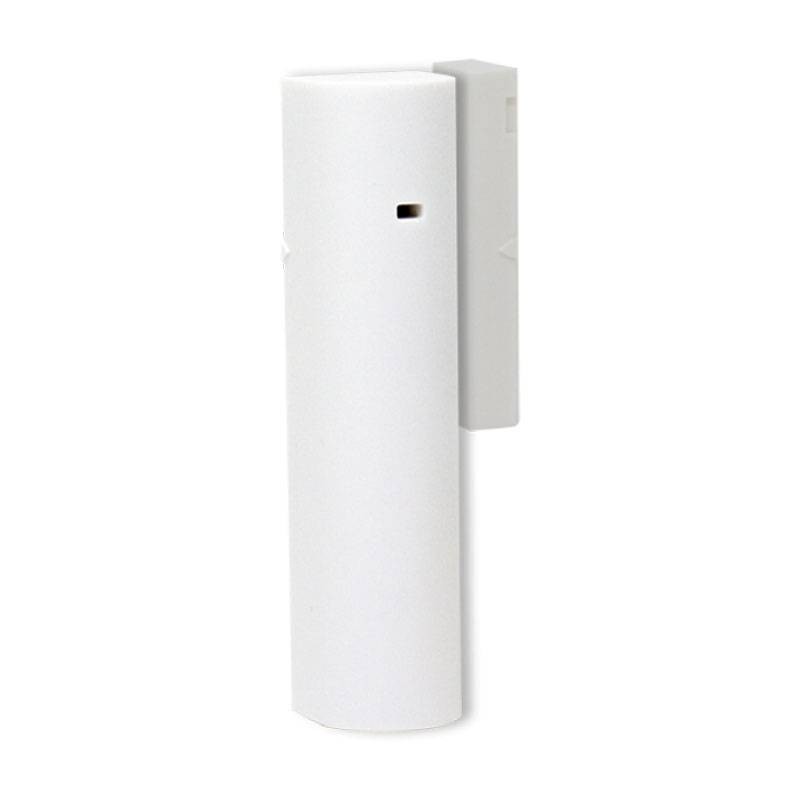

Radio magnetic contact 1IN white RF1MCW
The RF1MCW wireless magnetic contact is equipped with a wired auxiliary input for connecting and transmitting an independent zone to the control panel. The magnetic contact is equipped with two reed switches for flexible positioning of the external magnet. Excellent radio range and long battery life ensure consistent performance over time. White colour.
| MAIN FEATURES | |
|---|---|
| Sensor type | Magnetic contact |
| Wireless technology | Bidirectional, BeaconPlus |
| Frequency band | 868.05 ÷ 869.95 MHz |
| Transmitted events | Alarm, tamper, supervision, low battery |
| Supervision | Yes |
| Tamper protection | 2 (anti-tampering and anti-tear) |
| EN standards | EMC immunity EN 50130-4 |
| Magnet positions | 2 (right / left) |
| Wired zone balancing | NO, NC, EOL, DEOL |
| Control panel compatibility | RF10VEDO, RF32VEDO, HUB32LCD (SecurHUB), RFNEXUS |
| FUNCTIONS | |
| Configuration from control panel | Yes |
| Signal quality indicator | Yes (integrated on board) |
| HARDWARE FEATURES | |
| Material | ABS |
| Colour | White |
| Operating temperature | -10 ÷ 50 °C |
| Mounting | Surface |
| Sensor body (H × W × D) | 92 × 22 × 25 mm |
| Magnet (H × W × D) | 50 × 11 × 8 mm |
| ELECTRICAL FEATURES | |
| Maximum contact capacity | 26 mA |
| Stand-by consumption | 4 µA |
| Contact type | Reed |
| Low voltage threshold | 2.6 V |
| BATTERIES | |
| Battery type | 1 × lithium 3V CR123 (included) |
| Comelit battery code | 30007622 |
| Battery level control | Yes |

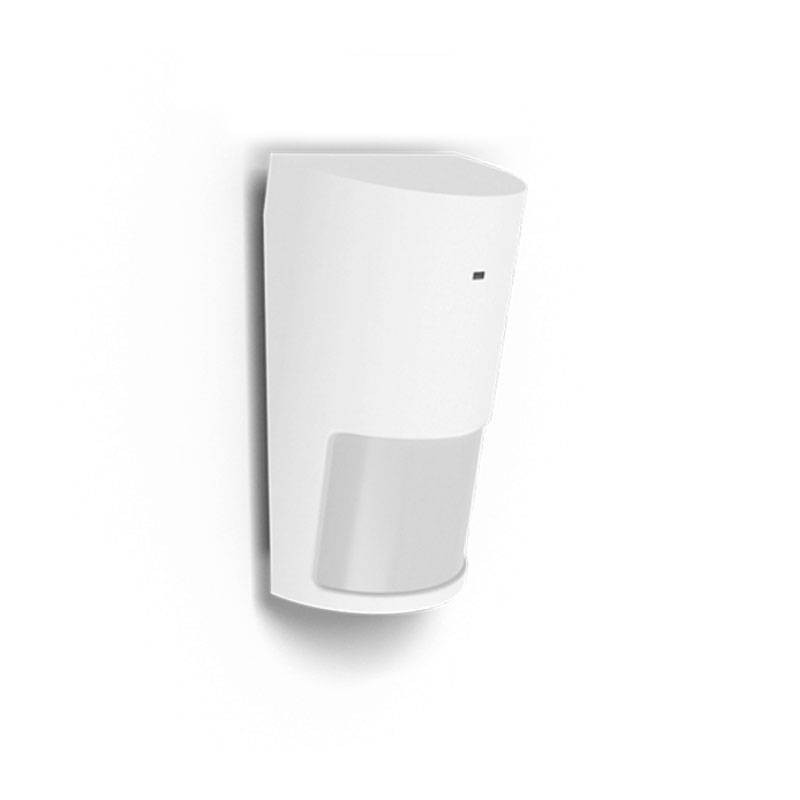

Radio indoor PIR sensor white 12 metres RF12PIR
RF12PIR is an innovative design wireless infrared motion sensor that, thanks to Comelit's bidirectional protocol, optionally allows disabling detections if the alarm system is disarmed. Fully configurable from the control panel in terms of pulse count, LED enablement, sleep-time, it is also equipped with some jumpers for configuring the main parameters.
| MAIN FEATURES | |
|---|---|
| Type | RF infrared volumetric sensor |
| Wireless technology | Bidirectional protocol |
| Detection type | Dual PIR |
| Frequency band (n°) | 868.05 ÷ 869.95 |
| Modulation | GFSK |
| Supervision | Yes |
| Infrared range (m) | 12 |
| Coverage angle | 90 |
| Infrared sensitivity adjustment | Yes |
| LED | Bicolour red/green |
| Tamper | Anti-tampering/Anti-tear |
| Automatic temperature compensation | Yes |
| EN standards | EMC Immunity EN 50130-4 |
| Energy saving mode | Yes |
| Number of detection zones (n°) | 54 |
| Adjustable pulse filter | Yes |
| Configuration from control panel | Yes |
| On-board signal quality indicator | Yes |
| Compatible expansions or control panels | RF10VEDO (VEDO), RF32VEDO (VEDO), HUB32LCD (SECUR HUB), RFNEXUS |
| HARDWARE FEATURES | |
| Type of coating materials | ABS |
| Product colour | White |
| Operating temperature (°C) | -10 ÷ 50 |
| Height (mm) | 118 |
| Width (mm) | 63 |
| Depth (mm) | 55 |
| Use in indoor environments | Yes |
| Installation height (m) | 1.8 ÷ 3 |
| TECHNICAL FEATURES | |
| Pet immunity | Yes, 10Kg max |
| ELECTRICAL FEATURES | |
| Maximum current consumption (mA) | 26 |
| Current consumption in stand-by (µA) | 4 |
| Low voltage threshold (V) | 2.6 |
| BATTERIES | |
| Battery type | 1 x CR123 |
| Comelit battery code | 30007622 |
