Comelit Nexus radio alarm kit Wi-Fi 4G KNCAM

Comelit
Comelit
COE KNCAM 8023903480955

The Comelit NEXUS Wi-Fi 4G KNCAM radio alarm kit offers a complete, modern, and connected solution for the protection of homes and businesses, with a cloud-ready control panel and high-security wireless sensors.

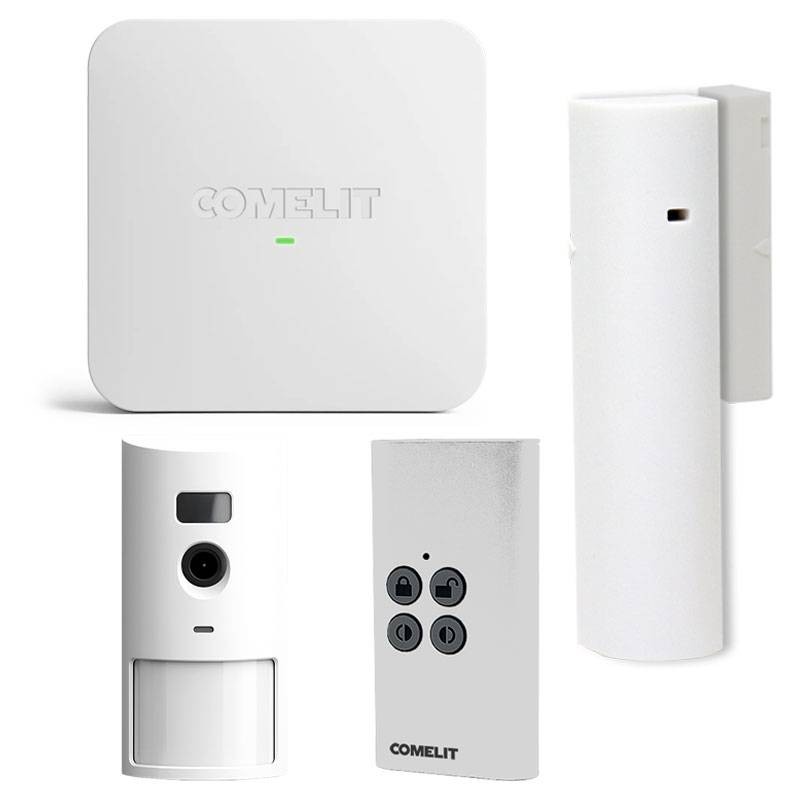

The kit consists of:

  • 1 NEXUS RFNEXUS control panel Wi-Fi, Ethernet, 4G, Cloud management

  • 1 RF1MCW Wireless magnetic contact, Auxiliary wired input

  • 1 PIR sensor with camera RF12PIRCAM Visual alarm verification

  • 1 RF4KEYW remote control 4 configurable buttons Bidirectional

  • wifi
Do you have questions about this product or did you not find what you were looking for? Ask us!
Comelit Nexus radio alarm kit Wi-Fi 4G KNCAM
€439.29
€439.29

€439.29
Tax included
Calculate shipping cost
Items Available: 8
Further availability of the manufacturer
€439.29

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Comelit NEXUS Wi-Fi 4G KNCAM alarm kit: intelligent and complete protection

The Comelit KNCAM kit is a modern alarm system designed to offer maximum security, ease of use, and advanced connectivity. Based on the RFNEXUS control panel, it integrates Wi-Fi, Ethernet, and 4G connectivity as standard, ensuring constant communication with the Comelit app and operation even in the event of a home internet network failure. The system is fully manageable via the Comelit NEXUS App, which allows you to monitor the system status, receive push notifications, and activate/deactivate the alarm remotely via the cloud, without the need for complex configurations.


Quick and completely wireless installation

The kit operates via secure and bidirectional radio technology, making installation:

  • Without masonry work

  • Perfectly suitable even for already inhabited houses

  • Expandable with other Comelit Nexus sensors.


Programming is simple, and the control panel is already set up for quick configuration.

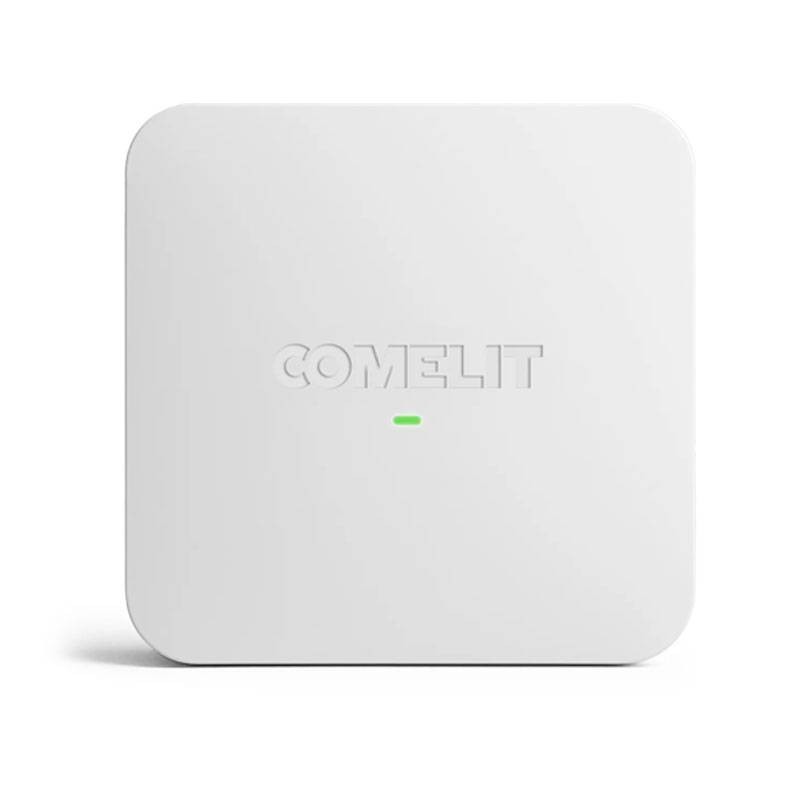

32 Zone RFNEXUS Radio Control Panel

The Nexus wireless alarm control panel allows management of up to 100 radio devices, with 32 alarm zones, which can become 96 zones if the auxiliary inputs of the magnetic contacts are used. Nexus offers integrated Wi-Fi, LAN, and LTE interfaces. Fully configurable from the Comelit Nexus App, which acts as the system supervisor. It can manage up to 64 different users, 32 remote controls, and 8 areas. It comes with a wall mount, battery, and power cable included.

MAIN FEATURES
Wireless technology Bidirectional, BeaconPlus
Frequency band 868.05 ÷ 869.95 MHz
Open field range Up to 1700 m
Maximum number of areas 8
Radio zones 96 (max 32 sensors)
Radio outputs 64
Sensor supervision Yes
Managed remote controls 32
User codes 32
Video verification Yes
Maximum number of PIR-Cam 4
Storable events 1024
Tamper Anti-tampering / Anti-tear
Automations 10 programmable scenarios (up to 15 actions per scenario)
Live cameras Up to 4 @ Full HD, H.264, RTSP
IP camera recording Up to 4 @ Full HD, H.264, RTSP
COMMUNICATION
TCP/IP channel Yes
Connection type Wi-Fi IEEE 802.11 b/g/n, 2.4 GHz
Protocols for reporting Voice, SMS, SIA IP, CID IP, Push APP
Remote control Dedicated app
GSM / GPRS / 3G / 4G channel Yes
SIM type Micro-SIM (not included)
Access Point function Yes
SOFTWARE / FIRMWARE FEATURES
Management app Nexus
Onboard installation wizard Yes
Maximum number of managed Apps 64
HARDWARE FEATURES
Mounting Wall bracket (included)
Cover material Plastic
Operating temperature -10 ÷ +40 °C
Height 160 mm
Width 160 mm
Depth 31 mm
Weight 630 g
ELECTRICAL FEATURES
Power supply 90 ÷ 240 VAC / 50 ÷ 60 Hz
BATTERIES
Number of batteries 1
Battery type 3.6 VDC / 4250 mAh
Battery included Yes

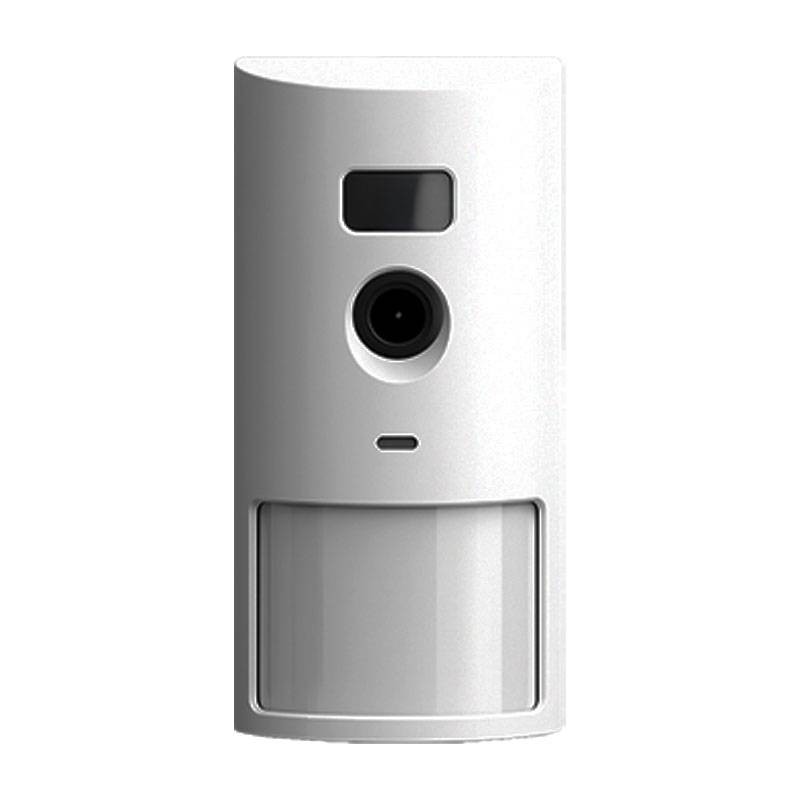

12-metre radio volumetric sensor with photo RF12PIRCAM

RF12PIRCAM is a wireless infrared motion sensor compatible with the NEXUS control panel and based on Comelit's bidirectional radio protocol. La fotocamera day&night integrata si abbina ad un LED IR per visione in condizioni di buio assoluto ed ha risoluzione impostabile fino a 800x480 pixels con possibilità di registrazione fino a 3 immagini sequenziali per ciascun allarme. Doppia batteria a lunga durata, ottima portata radio e possibilità di configurazione completa da remoto garantiscono massime prestazioni e funzionalità.

MAIN FEATURES
Type RF volumetric infrared sensor with photo verification
Wireless technology Bidirectional, BeaconPlus
Detection type Dual PIR
Frequency band 868.05 ÷ 869.95 MHz
Events transmitted Alarm, Photo verification, Tamper, Supervision, Low battery
Supervision Yes
Infrared range 12 m
Coverage angle 90°
PIR sensitivity adjustment Yes
Camera sensor 1/2.7" Full-HD CMOS
IR illuminator Yes
Status LED Tricolour: red / yellow / green
Tamper Anti-tampering / Anti-tear
Temperature compensation Yes
Energy saving mode Yes
Detection zones 54
Adjustable pulse filter Yes
Configuration from control panel Yes
Signal quality indicator Yes (on board)
Compatibility RFNEXUS
HARDWARE FEATURES
Material ABS
Colour White
Operating temperature -10 ÷ 50 °C
Height 118 mm
Width 63 mm
Depth 55 mm
Weight 135 g
Use Indoor
Installation height 1.8 ÷ 3 m
TECHNICAL FEATURES
Pet immunity Yes, up to 10 kg
ELECTRICAL FEATURES
Low voltage threshold 4.9 V
BATTERIES
Number of batteries 2
Battery type CR123A
Comelit battery code 30007622

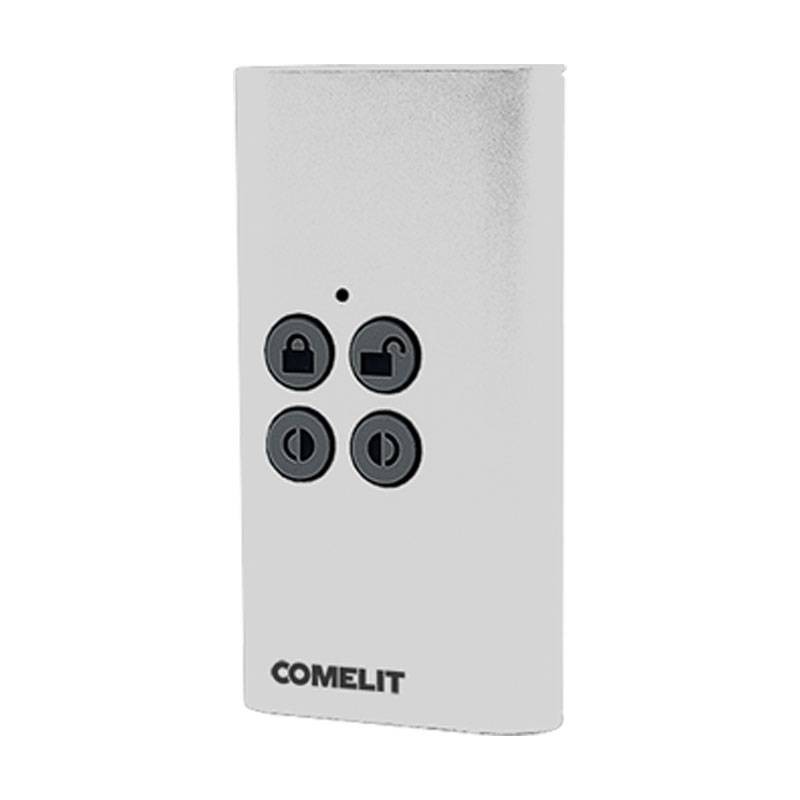

4-button white RF remote control RF4KEYW

Compact 4-button bidirectional remote control, with high radio range and configurable buttons. Allows viewing of system status and feedback on commands sent to the control panel. Complete with retention strap, White colour.

MAIN FEATURES
Wireless technology Bidirectional, BeaconPlus
Radio frequency band (MHz) 868.05 ÷ 869.95
Number of buttons 4, configurable
TX range (metres in open field) 600 m
Key lock function Yes
EN standards EMC Immunity EN50130-4
LED Bicolour red/green
Compatible expansions or control panels RF10VEDO (VEDO), RF32VEDO (VEDO), HUB32LCD (SECUR HUB), RFNEXUS
HARDWARE FEATURES
Type of coating materials Plastic
Product colour White
Operating temperature (°C) -10 ÷ 50
Height (mm) 66
Width (mm) 35
Depth (mm) 12
ELECTRICAL FEATURES
Low voltage threshold (V) 2.6
BATTERIES
Battery type 1 × CR2450
Battery included Yes
Battery level control Yes

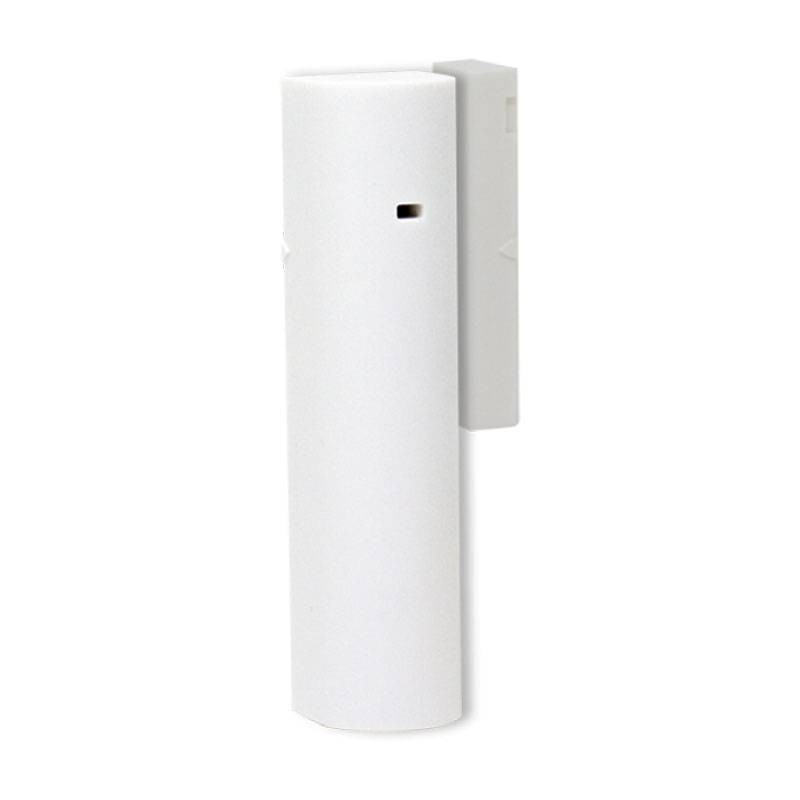

1 IN white radio magnetic contact RF1MCW

The RF1MCW wireless magnetic contact is equipped with a wired auxiliary input for connecting and transmitting an independent zone to the control panel. The magnetic contact is equipped with two reed switches for flexible positioning of the external magnet. Excellent radio range and long battery life ensure consistent performance over time. White colour.

MAIN FEATURES
Sensor type Magnetic contact
Wireless technology Bidirectional, BeaconPlus
Radio frequency band (MHz) 868.05 ÷ 869.95
Events transmitted Alarm, tamper, supervision, low battery
Supervision Yes
Tamper protection 2 anti-tamper and anti-tear
EN standards EMC immunity EN 50130-4
Magnet positions 2 (right/left)
Wired zone balancing NO, NC, EOL, DEOL
Compatible expansions or control panels RF10VEDO (VEDO), RF32VEDO (VEDO), HUB32LCD (SecurHUB), RFNEXUS
FUNCTIONS
Configuration from control panel Yes
On-board signal quality indicator Yes
HARDWARE FEATURES
Coating material type ABS
Product colour White
Operating temperature (°C) -10 ÷ 50
Height (mm) 92
Width (mm) 22
Depth (mm) 25
Surface mounting Yes
Magnet height (mm) 50
Magnet width (mm) 11
Magnet depth (mm) 8
ELECTRICAL CHARACTERISTICS
Maximum contact capacity 26 mA
Stand-by current consumption 4 µA
Contact type Reed
Low voltage threshold 2.6 V
BATTERIES
Battery type 1 × CR123 lithium (included)
Comelit battery code 30007622
Battery level control Yes
