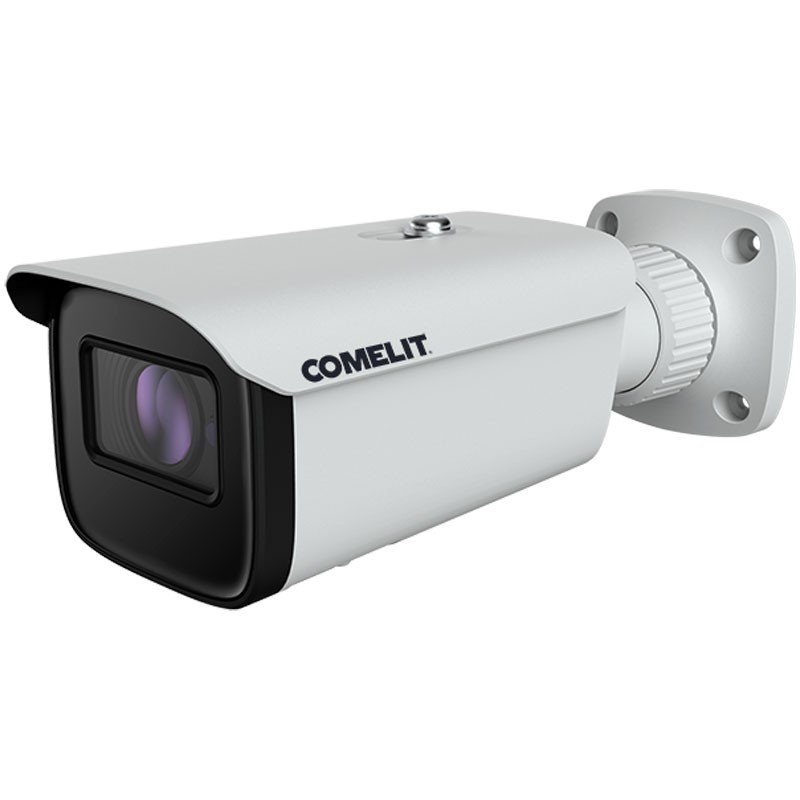

Comelit Bullet Camera AHD 4MP lens 2.8-12mm
COE AB04N1ZA
8023903465051
Comelit Bullet Camera AHD 4MP lens 2.8–12mm: clear vision even at night, motorized lens and IP67 structure for professional video surveillance.
-
Hybrid AHD/TVI/CVI/CVBS technology
-
4MP resolution for high-definition images
-
Motorized varifocal lens from 2.8 to 12 mm
-
IR illuminators with a range of up to 30 meters
-
IP67 protection rating – Waterproof and dustproof
-
Die-cast aluminum body for outdoor use
-
Power supply: 12V DC
-
Compatible with Comelit Advance Next mounting accessories
€104.86
Items Available: 31
: 2
Frequently bought together
High-definition video surveillance for indoor and outdoor
The Comelit AHD 4MP bullet camera is designed for video surveillance applications where high-resolution images, weather resistance, and installation flexibility are required. The hybrid technology makes it compatible with AHD, TVI, CVI, and CVBS analog recorders, ensuring easy integration even on existing systems.
With a resolution of 4 Megapixels, it ensures detailed images in all lighting conditions, even in poorly lit environments thanks to the integrated IR LEDs with a range of up to 30 meters.
Motorized lens for customized framing
Equipped with a motorized varifocal lens from 2.8 to 12 mm, this camera allows precise adjustment of zoom and focus remotely, facilitating installation and adaptation to different environmental situations. It perfectly suits scenarios where both wide areas and specific points need to be monitored in greater detail.
Durable and waterproof structure for outdoor environments
The die-cast aluminum body and IP67 protection make the camera waterproof and dust-resistant, ideal for outdoor use in any weather condition. The compact and professional design is intended to easily integrate into residential, commercial, or industrial contexts.
Wide compatibility with Comelit mounting accessories
The camera is compatible with a full range of Comelit Advance Next mounting accessories, for perfect installation in any context:
- JBA-BA – IP66 junction box
- WMA-BA – Wall bracket
- CMA-BA – Ceiling bracket
- PMA-A – Pole bracket
- AMA-A – Corner bracket
This flexibility allows for a secure and clean installation, even in complex configurations.
| MAIN FEATURES | |
|---|---|
| Camera sensor | 1/2.5" CMOS |
| Lens type | Motorized |
| Varifocal lens | 2.8 ÷ 12 mm |
| Effective pixels | 2944 × 1656 |
| Electronic shutter | 1/50 ÷ 1/100000 s |
| Signal-to-noise ratio | > 52 dB |
| Video output | AHD / TVI / CVI / CVBS |
| Video resolution | 4MP |
| FUNCTIONS | |
| Wide Dynamic Range (WDR) | D-WDR |
| HARDWARE FEATURES | |
| IR illumination distance | 30 m |
| Vandal protection rating | IK10 (metal case) |
| IP protection rating | IP67 |
| Camera control with DIP-switch | Yes |
| GENERAL DATA | |
| Power supply voltage | 12V DC |
| Maximum power consumption | 4 W |
| Type of power supply | External power supply |
| Height | 80.5 mm |
| Width | 217.7 mm |
| Depth | 80.5 mm |
| Weight | 560 g |
| Material | Die-cast aluminum |
| Type of case | Bullet |
| Colour | White and black |
| Operating temperature | -30 ÷ 60 °C |
| Operating humidity | 25 ÷ 95 % |
Data sheet
- Type: Bullet cameras
- Degree of protection: IP67
- System: AHD
- Optical: 2.8-12mm
- Resolution: 4MP (2K)
