Sunerg all In One hybrid 5.0KW photovoltaic inverter with 4 x 5.12kWh batteries
KIT SU5.0-20KW

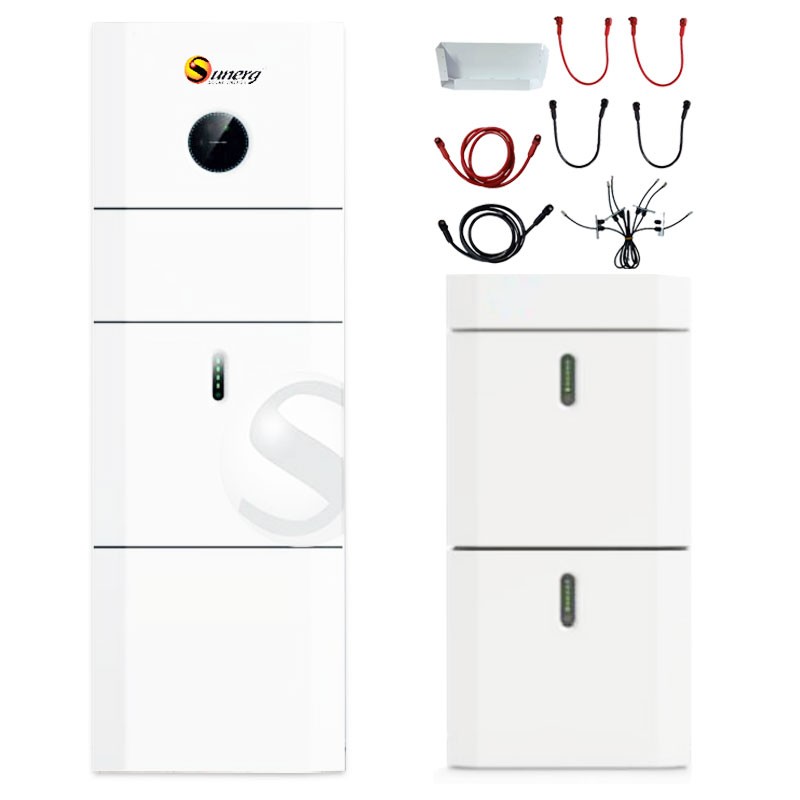

Sunerg PPLESS hybrid photovoltaic inverter consisting of:
- 1 5.0KW single-phase hybrid inverter (code PPL5000D)
- 4 PPL PACK 5.12kWh batteries (code PPL_PACK5.1)

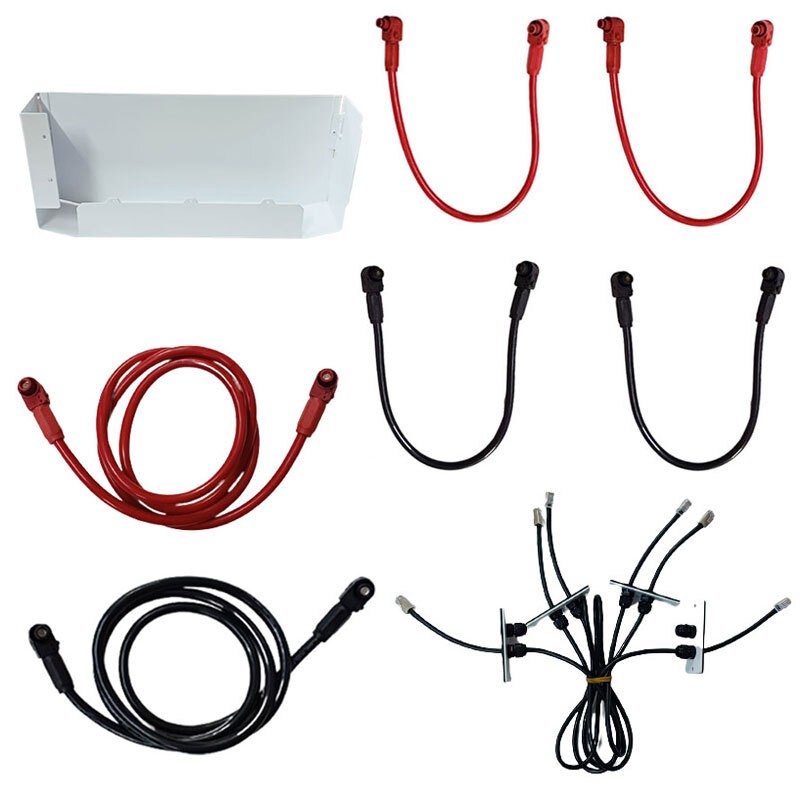

- 1 20KW cable kit for PPLESS series (code PPL_KITCAVI_20)
- 1 PPL series battery cover (code PF)
Connection of modules max. 4 batteries in parallel (each module 5.12 kWh).
€18,780.25
Out of stock
Incoming
Inverter features:
AC OUTPUT:
- Nominal AC output power 230Vac
- Output voltage range 150V~280V
- Output frequency range max 50/60Hz(±5Hz), (adjustable)
- Rated input current max 31A
- Mains current max 32A
- Apparent power from the power grid max 7360VA
- Power output to the utility grid max 4999W
- Current output to utility grid 21.7A
- AC L+N+PE output connection, without transformer
- Power factor (0.9 forward - 0.9 lagging), (adjustable)
- THDi <3%.
- Mains disconnection: two-pole thermal-magnetic circuit breaker (40A/pole)
- Rated output current 20A
- Max rated output power 4600W
- Apparent output power 5000VA
- THDv <2% (linear load)
- Automatic switching time <20 ms
- Overload 110% 10 sec
- AC disconnect offline Bipolar circuit breaker (25A/pole)
DC INPUT:
- Maximum PV input power 6500W
- Maximum Input Voltage 580V
- MPPT Range 120V-550V
- Nominal Input Voltage 400V
- MPPT at full load 230~550V
- Number of MPPTs 2
- Maximum Input Current 13A
- ISC PV 16A
TECHNICAL SPECIFICATIONS:

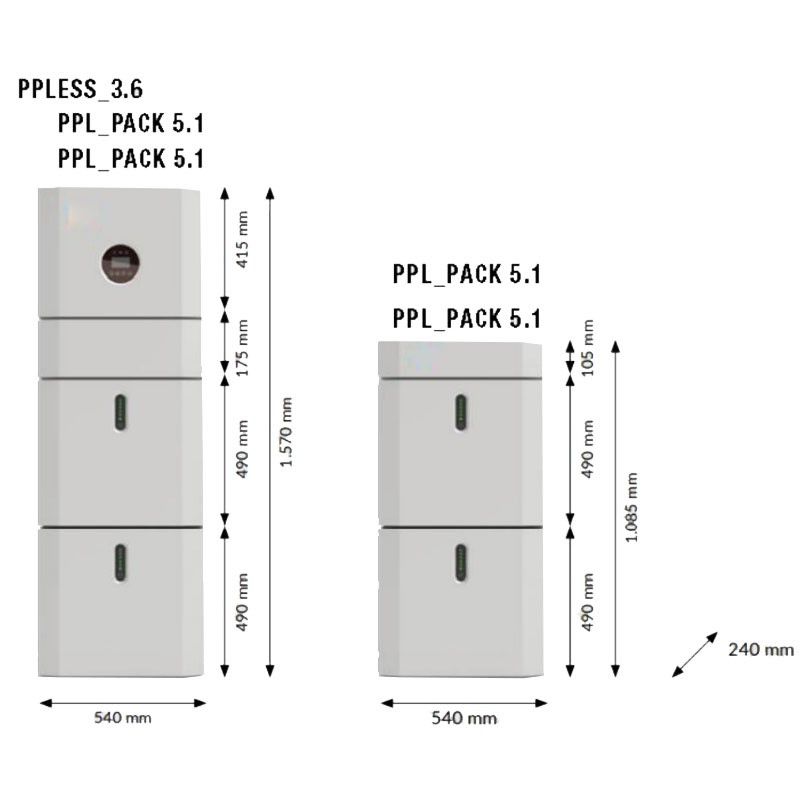

- Dimensions (W×H×D) 540X590X240mm
- Weight 39kg
- Ambient temperature range °C -20/+60 (Rated power @ 45)
- Relative humidity 0~95% (NO CONDENSATION)
- Degree of protection IP65
- Topology High frequency insulation
- Natural convection cooling
- Noise emission <25dB
- LCD/APP screen
- RS485/CAN2.0/WIFI communication interface
- Altitude 2000 meters max
- Overvoltage category II(DC SIDE), III(AC SIDE)
- Max. Efficiency (from battery) 94.0%
- Max. Efficiency (from PV) 97.6%
- Euro Efficiency 97.0%
- MPPT Efficiency 95.5%
PROTECTIONS:
- Short-circuit protection
- AC leakage fault protection
- Grounding fault
- Anti-islanding protection
- Overload protection
- Overvoltage protection
- DC polarity protection
STANDARDS AND SAFETY:
- Regulations: AS/NZS 4777.2, VDE-AR-N4105, VDE0126-1-1, CEI 0-21
- Safety standards: IEC/EN 62109-1&2, IEC62040-1
- EMC: EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4, EN61000-4-16, EN61000-4-18, EN61000-4-29
Single battery specification 5.1KW:
- Nominal battery voltage 51.2V
- Battery voltage range 40~60 V
- Max. Max discharge current 80A
- Energy charging capacity 50A
- Battery switch Bipolar DC switch (125A/pole)
- Battery capacity 5.12 kWh
- Battery type LFP (LiFePO4)
- Depth of discharge (DoD) 90%
- Rated voltage 51.2 V
- Operating voltage range 44.8~57.6V
- Internal resistance 20 m
- Number of cycles 10,000 cycles
- Operating temperature range 0~+50 (charge)/-10~+50 (discharge)
- Storage temperature range -30 ~+60
- Humidity 0% ~ 90%
- Module connection max. 4 batteries in parallel (each module 5.12 kWh)
- Power consumption <2W
- Monitoring parameters System voltage, current, cell voltage, cell temperature, PCBA temperature measurement
- CAN and RS-485 communication
- Active and passive ventilation type
- Weight 59Kg
- Dimensions (W×H×D) 540x490x240mm
- Degree of protection IP65
- Warranty 5 years on product, 10 years on performance
- Safety IEC 62619 UL 1973 UN 38.3
There are no reviews
Data sheet
- KIT: Inverter kit with batteries
- Type: Inverter
- Power: 1 to 5KW
- Model: Hybrids
- MPPT: 2
- Connection: Single-phase
