Inverter Nidec Commander C300 0.37 kW 220 V with integrated filter C30001200024
CTC C30001200024
Nidec Commander C300 0.37 kW 220 V (C30001200024) is a compact inverter with integrated filter, ideal for precise control of single-phase motors: size 1, heavy-duty service 2.4 A, reduced dimensions, and simplified installation.
-
Nidec Commander C300 Inverter with integrated filter
-
Single-phase power supply 200240 Vac ±10%
-
Motor power 0.37 kW in heavy-duty service (max current 2.4 A)
-
Size 1: compact format 160×75×130 mm
-
Lightweight 0.75 kg for panels and machines with limited space
-
Normal service values manageable using heavy-duty service references
€214.35
Items Available: 1
Frequently bought together
Inverter Nidec Commander C300: reliable motor control in a compact format
The Nidec Commander C300 C30001200024 is an inverter designed for industrial and automation applications where precise motor speed control is needed to optimize consumption and performance. Thanks to its compact structure in size 1, it easily integrates into electrical panels, automatic machines, and process plants, even when space is limited. It is a suitable solution for systems like conveyor belts, small fans, pumps, mixers, and light automation, where motor regulation improves cycle stability and result quality.
The fact that the drive comes with an integrated filter is a tangible advantage during installation: it reduces the need for external components, simplifies wiring, and helps keep the system tidier and cleaner in terms of electromagnetic compatibility.
Single-phase power supply 200240 Vac: ideal for single-phase systems
This model is designed for single-phase power supply with voltage 200240 Vac ±10%, a typical choice in many installations where three-phase is not available or where compact motor control on a single unit is desired. The inverter allows managing motor power more efficiently than on/off solutions, reducing surges, water hammer (on pumps), and mechanical stress on transmissions.
Heavy-duty service: 0.37 kW and 2.4 A for more demanding applications
In heavy-duty service, the inverter supports a maximum current of 2.4 A and motor power of 0.37 kW, making it suitable for applications with more challenging loads or torque variations. Based on your indications, for normal service applications, it is possible to refer to the nominal values of heavy-duty service: a useful approach to simplify the choice and have operational margin in real working conditions.

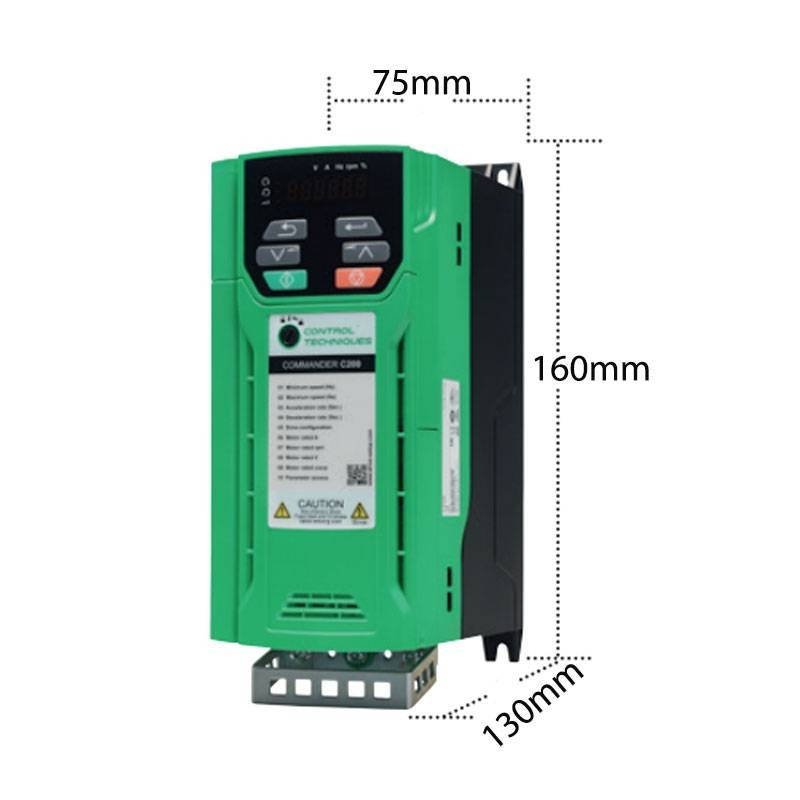

Dimensions and weight: perfect for compact panels and retrofits
With dimensions 160 × 75 × 130 mm and a weight of 0.75 kg, the Commander C300 is particularly suitable for retrofits and new installations where there is a need to replace an existing drive or add speed control without redesigning the panel. The compact format also aids in dissipation and orderly arrangement of components, especially on compact machines.
There are no reviews
Data sheet
- Type: Inverter
- Power: 1 to 5KW
- Degree of protection: IP20
- Connection: Single-phase
