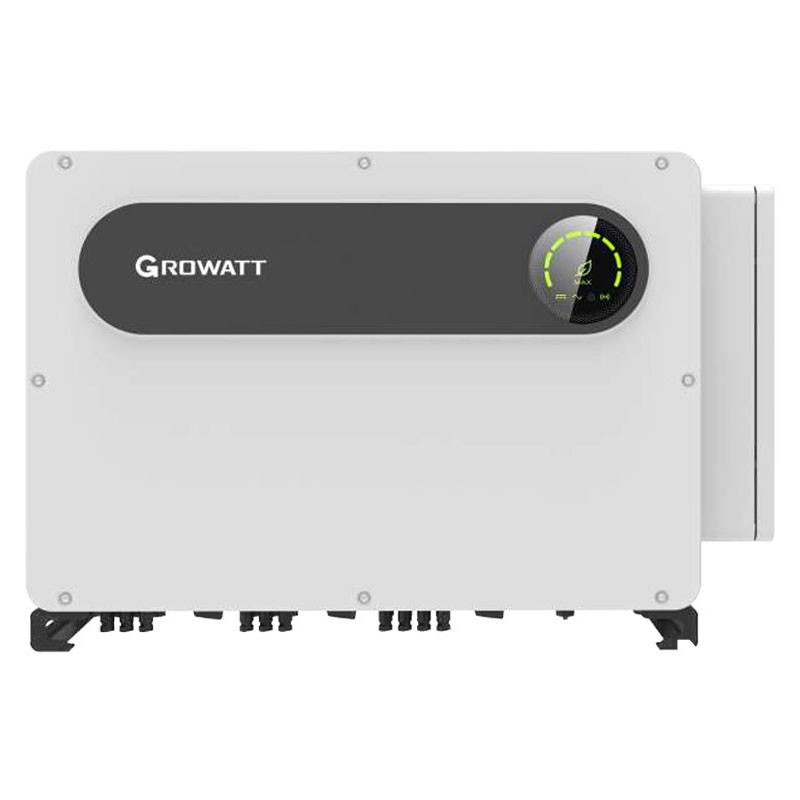

Growatt Max Photovoltaic Inverter 100KW Three Phase 10MPPT GWMAX100KTL3XLV

Growatt
Growatt
OMX GWMAX100KTL3XLV

Growatt Max-TL3-X LV Photovoltaic Inverter:



  • Rated AC output power 100KW
  • Three-phase voltage 400V/380V (340-440VAC)
  • Number of MPP trackers 10MPPT
  • Communication Interfaces: USB/RS485 integrated
Do you have questions about this product or did you not find what you were looking for? Ask us!
Growatt Max Photovoltaic Inverter 100KW Three Phase 10MPPT GWMAX100KTL3XLV
€4,863.96
€4,863.96

€4,863.96
Tax included
Calculate shipping cost
Items Available: 14
Further availability of the manufacturer
€4,863.96

Buy it within and receive it from Friday, 26 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Suitable for commercial rooftop and large ground-mounted installations, the Growatt Max series grid-connected inverter.



The industry's first quad-core inverter, it provides fast processing capacity to handle transient grid faults.



With an optimized design, it also provides a 'weighted efficiency of 98.40% 0.3% higher than the industry average level, together with 6/7 extraordinary MPP trackers ensures high system efficiency.



Advantages:

  • 10 MPPTs of the Fuseless type
  • I/V curve diagnosis and monitoring
  • Intelligent string monitoring
  • Type II AC and DC arresters
  • IP66 degree of protection




Features:




Input parameters (DC):

  • Maximum DC voltage 1100V
  • Trigger voltage (V start) 195V
  • Rated voltage 600V
  • MPPT voltage range 180V-1000V
  • Number of MPP trackers 10
  • Strings for MPP trackers 2
  • Max. input current for MPPT 32A
  • Max dc current for MPPT 40A




Output parameters (AC):

  • Rated AC output power 100000W
  • Max AC apparent power 110000VA
  • Rated AC voltage (range) 400V/380V (340-440VAC)
  • AC mains frequency (range) 50/60 Hz (45-55Hz/55-65 Hz)
  • Maximum output current 158.8A-400V - 167.1A-380V
  • Configurable power factor 0.8 forward...0.8 backward
  • Total harmonic distortion THDI <3%
  • AC connection 3W/N/PE




Conversion efficiency:

  • Maximum Efficiency 98.8%
  • Euro Efficiency 98.4%
  • MPPT Efficiency 99.9%




Safety features:

  • DC reverse polarity protection
  • DC disconnect switch
  • AC/DC overvoltage protection
  • Insulation resistance monitoring
  • AC short-circuit protection
  • Ground fault detection device
  • String monitoring
  • Anti-PID protection
  • AFCI protection




General data:

  • Dimensions (W / H / D) in mm 970/640/345mm
  • Weight 84 kg
  • Operating temperature range -30 Degrees ... + 60 Degrees
  • Power consumption: night mode < 15W
  • Topology Transformerless
  • Cooling system Controlled ventilation
  • Environmental protection rating IP66
  • Relative humidity 0-100%
  • Altitude 4000 meters
  • DC H4/MC4 connection (Max.6 mm2))
  • AC connection Eyelet terminals (Max. 240 mm2))
  • LED Display/WIFI+APP
  • Interfaces: USB/RS485 integrated
  • Warranty: 5 years expandable to 10 years with manufacturer



CE Certificates:

  • CE , VDE0126, Greece, EN50438, EN50549, C10/C11, UTE C 15-712, IEC62116, IEC61727, IEC 60068, IEC 61683, CEI0-21, CEI 0-16, N4105, DRRG G98/G99, G100, AS/NZS3100, AS4777, UNE206007, NRS 097-2-1, MEA , PEA , KSC8565.

There are no reviews

Data sheet

Type:
Inverter
Power:
61KW to 100KW
Degree of protection:
IP66
MPPT:
10
Connection:
Three-phase
