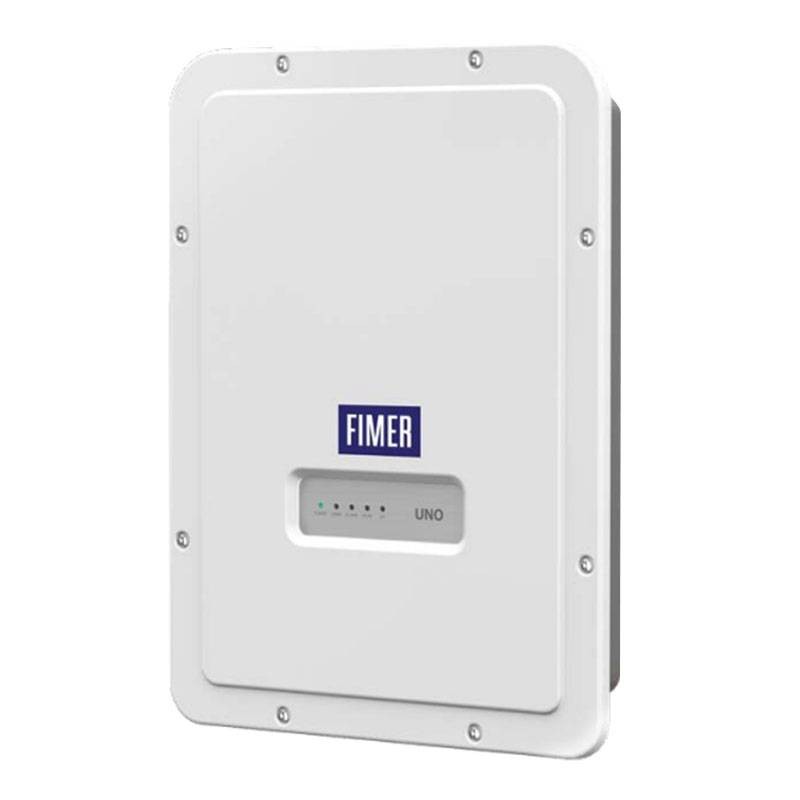

Peimar Photovoltaic Inverter UNO-DM-TL-PLUS 3.3KW 2MPPT Single-Phase 3P21990S100F


06R 3P21990S100F

Peimar Photovoltaic Inverter Model UNO-DM-3.3-TL-PLUS-SB-Q:



  • Rated AC output power 3.3KW
  • Number of independent MPPTs 2
  • AC power supply to single-phase grid
  • With integrated DC disconnect switch
  • Integrated Wireless communication interface
  • Integrated communication protocol ModBus TCP (SunSpec)
  • Commissioning Web User Interface, Aurora Manger Lite
  • Monitoring Plant Portfolio Manager, Plant Viewer, Plant Viewer for Mobile, Energy Viewer.
Request info about this product

Peimar Photovoltaic Inverter UNO-DM-TL-PLUS 3.3KW 2MPPT Single-Phase 3P21990S100F

€920.37 Tax included
€920.37

Peimar Photovoltaic Inverter UNO-DM-TL-PLUS 3.3KW 2MPPT Single-Phase 3P21990S100F

€920.37
Tax included
klarna Pay in installments with Klarna
Items Available: 2
qty

Peimar Photovoltaic Inverter UNO-DM-TL-PLUS 3.3KW 2MPPT Single-Phase 3P21990S100F

€920.37

Buy it within and receive it from Friday, 1 March
Two-year warranty
Secure Payment
Easy return within 14 days

Easy to install, quick to set up:

  • Plug and Play connectors, on the DC and AC side, as well as wireless communication, make installation easy, fast, and safe, without having to open the front of the inverter.



Key features:

  • Wireless access to the built-in user interface
  • Simplified commissioning procedure
  • Dynamic control of grid feed-in
  • Remote firmware update for the inverter and its components
  • Remote monitoring via Aurora Vision cloud



Features:



Input:

  • Maximum absolute DC input voltage 600V
  • Input (Vmax,abs) 600 V
  • Input DC trigger voltage 200 V (adj. 120...350 V)
  • Input DC voltage operating range 0.7 x V start...580 V (min 90 V)
  • Rated input DC voltage 360V
  • Rated DC input power 3500W
  • Number of independent MPPTs 2
  • Maximum DC input power for each MPPT 2000W
  • MPPT range of DC voltage 170...530 V
  • DC power limitation with parallel MPPT configuration Derating from max to zero (530 V?VMPPT?580V)
  • DC power limitation for each MPPT with configuration of independent MPPTs at Pacr, example of maximum unbalance 2000 W (200 V?VMPPT?530 V) other channel: Pdcr-2000 W (112 V?VMPPT?530 V)
  • Maximum DC input current 20.0 / 10.0
  • Maximum input short-circuit current for each MPPT 20.0 A
  • Number of input DC connection pairs 1
  • DC connection type Quick plug-in PV connector



Input protections:

  • Reverse polarity protection Yes, current limited source.
  • Input overvoltage protection - varistor Yes
  • Insulation control In accordance with local regulations
  • DC disconnect characteristics (DC disconnect version) 25 A / 600 V



Output:

  • Type of AC connection to the grid Single-phase
  • Rated AC power output 3300W
  • Maximum AC power output 3300W
  • Maximum apparent power 3300VA
  • Rated AC output voltage 230V
  • AC output voltage range 180...264V
  • Maximum AC output current 14.5A
  • Contribution to short circuit current 16.0A
  • Rated output frequency (fr) 4) 50/60 Hz
  • Output frequency range (fmin...fmax) 4) 47...53/57...63 Hz
  • Rated power factor and adjustability range > 0.995, adj. ± 0.1 to 1 (inductive/capacitive)
  • Total current harmonic distortion < 3%
  • Type of AC connections Female panel-mounted connector



Output protections:

  • Anti-islanding protection In accordance with local regulations.
  • Maximum external AC overcurrent protection 20A
  • Output overvoltage protection - varistor 2 (L - N / L - PE)



Operating performance:

  • Maximum efficiency 97.0%
  • Weighted efficiency (EURO/CEC) 96.5% / -
  • Power supply threshold 8 W
  • Nighttime consumption <0.4 W



Environmental:

  • Ambient temperature 25...+60°C /-13...140°F with derating above 50°C/122°F
  • Relative humidity 0...100 % with condensation
  • Maximum operating altitude without derating 2000 m / 6560 ft



Physical characteristics:

  • IP65 environmental protection rating
  • Cooling system Natural
  • Dimensions (H x W x D) 553 x 418 x 175 mm / 21.8 x 16.5 x 6.9
  • Weight 15 kg / 33 lb
  • Mounting system Wall brackets



Safety:

  • Isolation level No transformer
  • Certifications CE , RCM
  • EMC and safety standards IEC/EN 62109-1, IEC/EN 62109-2, AS/NZS 4777.2, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61000-3-11, EN 61000-3-12
  • Grid connection standards (check availability through sales channel) IEC 0-21, DIN V VDE V 0126-1-1, VDE-AR-N 4105, G83/2, G59/3, G98-1, G99-1, RD 413, ITC-BT-40, AS/NZS 4777.2, C10/11, IEC 61727, IEC 62116.

Data sheet

Type:
Inverter
Power:
1 to 5KW
Degree of protection:
IP65
MPPT:
2
Connection:
Single-phase
