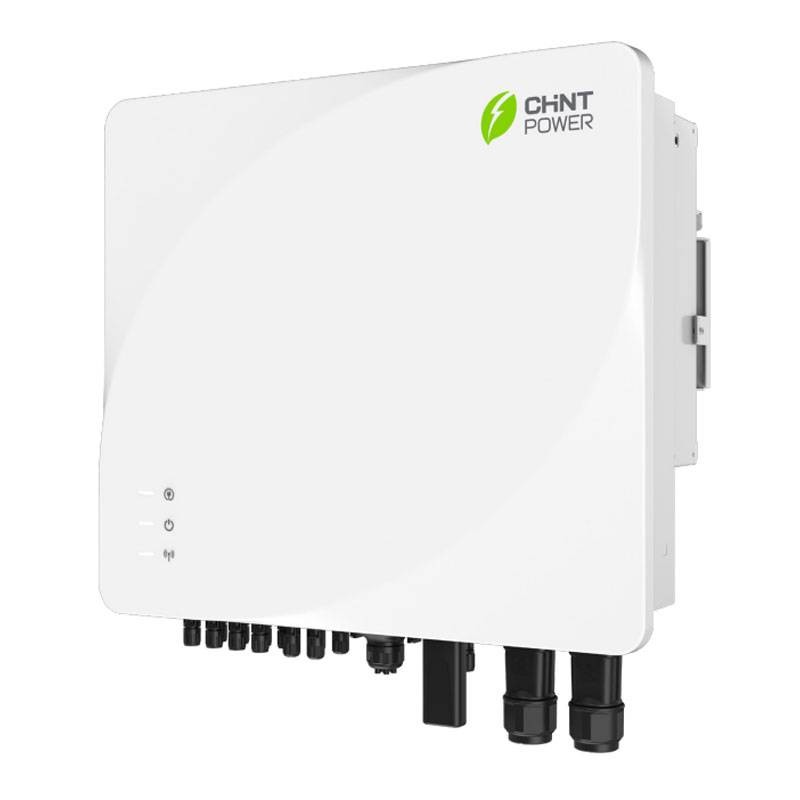

Chint Three-phase Hybrid Inverter 10KW 2MPPT ECH10K-TH-UE

Chint
Chint
67B 1.0101.1030

Chint ECH10K-TH-UE three-phase hybrid inverter 10 kW with dual MPPT. Maximum efficiency (98.3%), intelligent energy management and compatibility with SG Ready batteries and heat pumps.

  • Nominal power: 10 kW three-phase

  • Maximum efficiency 98.3%, battery efficiency 97.5%

  • 2 independent MPPTs for maximum photovoltaic yield

  • 5 operating modes and intelligent TOU management

  • Compatible with high voltage batteries

  • Connections: RS485, CAN, Wi-Fi/4G (optional)

  • AFCI and SPD type II for maximum safety

  • IP66 protection degree, suitable for outdoor use

Do you have questions about this product or did you not find what you were looking for? Ask us!
Chint Three-phase Hybrid Inverter 10KW 2MPPT ECH10K-TH-UE
€2,139.25
€2,139.25

€2,139.25
Tax included
Calculate shipping cost
Items Available: 1
Further availability of the manufacturer
€2,139.25

Buy it within and receive it from Friday, 26 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Chint ECH10K-TH-UE: the hybrid inverter for home energy autonomy

The Chint ECH10K-TH-UE residential hybrid inverter is an all-in-one solution designed for homes with high energy consumption, multi-family buildings, or small residential complexes that wish to maximize self-consumption and independence from the electrical grid. Thanks to its advanced architecture, the inverter simultaneously manages photovoltaic production, battery storage, and load supply, ensuring service continuity even during a blackout.

With a conversion efficiency of up to 98.3%, the device optimizes every kWh produced, while intelligent energy management allows scheduling of charging and discharging based on hourly costs and consumption profiles.

Three-phase configuration and full compatibility

The 10 kW three-phase configuration ensures balanced power distribution across all phases, ideal for homes equipped with heat pumps, air conditioners, electric vehicle charging systems, and other three-phase loads. The system supports power imbalance management up to 50% on a single phase, ensuring maximum flexibility and operational stability. Compatibility with high-voltage batteries allows optimal storage management, improving energy autonomy and reducing supply costs.

Intelligent technology and advanced connectivity

The inverter offers 5 operating modes to adapt to every energy need and includes the TOU (Time of Use) mode, which maximizes revenues by exploiting the most convenient time slots. RS485, CAN, and Wi-Fi/4G (optional) connections allow remote monitoring via app or web portal, offering a complete view of energy flows, battery status, and system performance.

Safety and reliability in every condition

Equipped with standard AFCI for protection against electrical arcs and type II SPD on the DC side, the inverter ensures maximum safety for the system and the home. The IP66 protection rating ensures resistance to dust, moisture, and weather conditions, making it suitable for outdoor installations.

Ease of installation and maintenance

Thanks to its compact design, robust structure, and reduced weight, the Chint ECH10K-TH-UE is easy to install and maintain. It complies with CEI 0-21 connection standards and supports the SG Ready heat pump with intelligent load control, integrating perfectly into modern smart home and smart energy ecosystems.

Technical characteristics

ParameterValue
Efficiency
Maximum efficiency (PV grid) 98.30%
European efficiency (PV grid) 97.60%
Maximum efficiency (battery loads) 97.50%
Photovoltaic field input
Nominal input voltage 600 V
Maximum input voltage 1100 V
Maximum input power 16.0 kW
Maximum input current per MPPT 16 A / 16 A / 16 A / 16 A
Maximum short-circuit current per MPPT 24 A / 24 A / 24 A / 24 A
Number of MPPT 2
Number of strings per MPPT 1
Start voltage 160 V
Operating voltage range PV 160 1000 V
Batteries
Cell type Lithium-ion / Lead-acid
Voltage range 160 600 V
Max charge/discharge current 50 A / 50 A
Max charge/discharge power 20 kW / 10 kW
Grid
Maximum input current 60.8 A
Nominal apparent output power 10.0 kVA
Maximum apparent output power 11.0 kVA
Nominal output voltage 3W / N / PE; 220/380 230/400 240/415 V (adjustable)
Nominal grid frequency 50 Hz / 60 Hz
THDi < 3% (at nominal power)
Power factor > 0.99 (adjustable from 0.8 lead to 0.8 lag)
Backup port
Maximum output current (on grid) 60.8 A
Maximum apparent power (on grid) 40.0 kVA
Maximum apparent power (off grid) 11.0 kVA
Peak apparent power 22 kVA @ 60 s
Nominal output voltage 380 / 400 / 415 V, 3W + N + PE
Nominal output frequency 50 Hz / 60 Hz
Max single-phase apparent output power 5.0 kVA
THDV < 2% @ 100% load R
Switching time 10 ms
Protection
DC switch Integrated
Anti-islanding protection Integrated
AC overcurrent and short circuit protection Integrated
PV polarity reversal protection Integrated
Overvoltage protection Type II (DC and AC side)
AFCI (arc fault circuit interruption) Integrated
RSD function (rapid shutdown) Optional
General data
Topology Non-isolated
Protection degree IP66
Cooling Forced air flow
Operating temperature -25 °C ~ +60 °C
Relative humidity 0 ~ 100%
Maximum altitude 4000 m
Noise level < 45 dB
Dimensions (W × H × D) 580 × 500 × 250 mm
Weight 37 kg
Display LED & APP
Connections RS485, CAN, Wi-Fi / 4G (optional)
Certifications
Applicable standards IEC 62109-1&2, IEC 61000, IEC 62477, IEC 61727/62116, IEC 61683, IEC 63027
Connection standards EN50549, VDE4105, TOR Erzeuger type A+B, EIFS2018-2, CEI 021, NC RfG, PTPiREE, EN50549-1

There are no reviews

Data sheet

Type:
Inverter
Power:
6 to 10KW
MPPT:
2
Connection:
Three-phase
