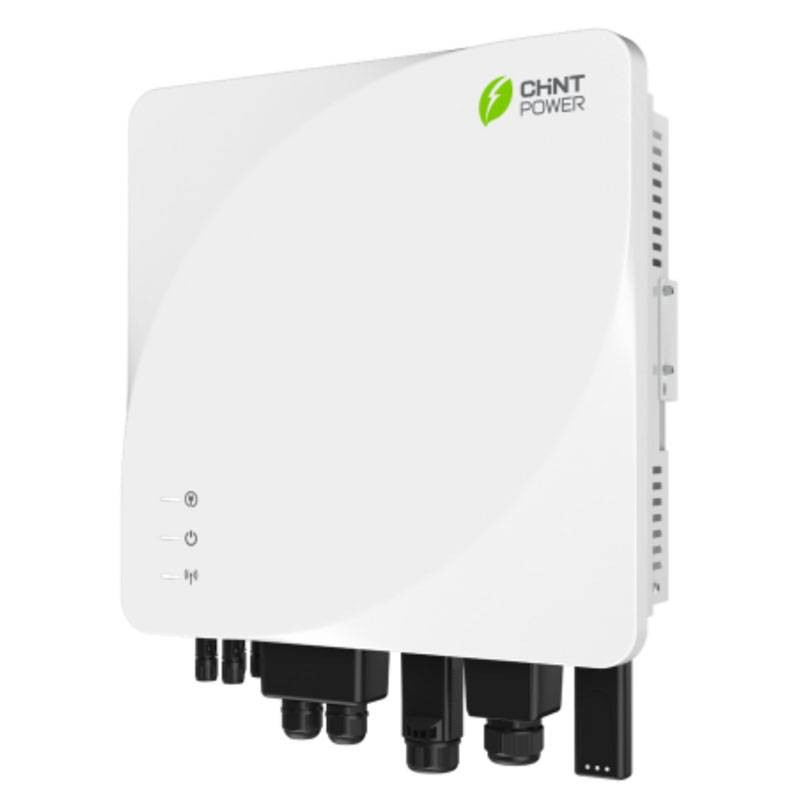

Chint photovoltaic hybrid inverter CPS ECH3K-SML-EU 3kW 2MPPT 1.0101.0905

Chint
Chint
67B 1.0101.0905

Chint CPS ECH3K-SML-EU 3kW Hybrid Photovoltaic Inverter is the perfect solution for residential photovoltaic systems that wish to integrate self-consumption with battery storage systems. Thanks to its 97.4% efficiency, compatibility with lithium-ion and LiFePO batteries, and backup functionality during blackouts, it is the ideal choice for autonomous and future-ready systems.

  • Output power: 3 kW

  • MPPT: 2 independent to optimize production from two strings

  • Connection: RS485, CAN, Wi-Fi

  • Maximum efficiency: 97.40% (photovoltaic to grid)

  • Backup function: Power supply to priority loads in case of blackout

  • Battery compatibility: lithium-ion and LiFePO

  • Intelligent management system for battery charge and discharge

  • Intelligent monitoring via app and Wi-Fi connection

Do you have questions about this product or did you not find what you were looking for? Ask us!
Chint photovoltaic hybrid inverter CPS ECH3K-SML-EU 3kW 2MPPT 1.0101.0905
€1,252.45
€1,252.45

€1,252.45
Tax included
Calculate shipping cost
Items Available: 5
Further availability of the manufacturer
€1,252.45

Buy it within and receive it from Monday, 23 February
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Chint CPS ECH3K-SML-EU Photovoltaic Hybrid Inverter: Complete Solution for Self-consumption and Backup

The Chint CPS ECH3K-SML-EU is a single-phase hybrid inverter of 3 kW that combines photovoltaic conversion with battery management to optimize energy self-consumption. Thanks to its 2 independent MPPTs, it can manage two strings of photovoltaic panels positioned on roofs with different orientations or in the presence of shading, significantly improving performance in all conditions.

In case of a blackout, the device is capable of powering priority loads, such as lights or a refrigerator, ensuring energy continuity and safety. This is particularly useful for homes or small installations that require a reliable energy source even when the electrical grid is unavailable.

Compatibility with Storage Systems and Intelligent Management

The inverter is compatible with lithium-ion or LiFePO batteries, technologies that offer high capacity and long life. The intelligent battery management system allows storing excess energy produced during the day, to then use it during peak consumption hours or in the evening, reducing bill costs and improving the overall efficiency of the system.

Intelligent monitoring via the dedicated app and Wi-Fi connection allows you to manage the system in real-time, viewing energy production, consumption, and battery status. Additionally, the RS485 and CAN connection offers advanced and versatile management for more complex installations.

Advanced Protections for Safety and Durability

The Chint CPS ECH3K-SML-EU is equipped with numerous protection systems, including:

  • DC Switch

  • Anti-islanding protection

  • AC overcurrent protection

  • AC overvoltage protection

  • String PV reverse polarity protection

  • Type II surge protection (DC and AC side)

  • Insulation detection

  • Leakage current protection

  • AFCI (Arc Fault Circuit Interruption)

These protections ensure that the system operates safely, preventing damage and increasing the device's lifespan.


Efficiency
Maximum efficiency (PV to grid) 97.40%
European Efficiency (PV to grid) 96.50%
Maximum efficiency (Batteries to loads) 95.10%
PV Field Input
Nominal input voltage 360V
Maximum input voltage 600 V
Maximum input power 9.00kW
Maximum input current per MPPT 16/16 A
Maximum short-circuit current per MPPT 20/20A
Number of MPPTs 2
Number of strings per MPPT 1
Start voltage 100V
Operating voltage range PV 80-550V
Batteries
Cell type Lithium-ion / Lead-acid
Battery voltage range 40 ~ 60 V
Maximum charge/discharge current 120/60A
Maximum charge/discharge power 6.0/3.0kW
Grid
Maximum input current 54.6A
Max. apparent power input from the grid 12.0kVA
Nominal apparent output power 3.00kVA
Maximum apparent output power 3.3kVA
Nominal output voltage L/N/PE ~ 220/230V
AC voltage range 176-276V (Adjustable)
Nominal grid frequency 50Hz/60Hz
THDi < 3% (Nominal power)
Power factor > 0.99 Nominal power (Adjustable 0.8 leading - 0.8 lagging)
Backup Port
Maximum output current (on grid) 54.6A
Maximum apparent output power (on grid) 12.0kVA
Peak apparent output power 4.5kVA @60s
Nominal apparent output power (off grid) 3.00kVA
Maximum apparent output power (off grid) 3.3kVA
Nominal output voltage 220/230 V
Nominal output frequency 50Hz/60Hz
THDV < 2% (Linear load)
Switching time 10 ms
Protection
DC switch Integrated
Anti-islanding protection Integrated
AC overcurrent protection Integrated
AC overvoltage protection Integrated
Reverse polarity protection for PV string Integrated
Surge protection Type II (DC and AC side) Integrated
Insulation detection Integrated
Leakage current protection Integrated
AFCI (arc fault circuit interruption) Integrated
General
Topology High-frequency isolation (Battery)
Protection degree IP66
Cooling method Natural cooling
Operating temperature range -25°C - 60°C
Relative humidity range 0 ~ 100%
Maximum operating altitude 4000 m
Noise (typical) < 35 dB
Dimensions (W x H x D) 460 x 460 x 203 mm
Weight 26kg
Display LED & APP
Connection RS485, CAN, Wi-Fi/4G (Optional)
Certifications
Applicable standards IEC/EN62109-1&2, IEC/EN62477-1, IEC/EN61727 / 62116, IEC/EN61000-6-1/2/3, IEC 61683, IEC63027
Connection standards VDE 4105, CEI 0-21, EN 50549-1, PTPiREE+NCRfG, NTS 2,1, 217001, 217002

There are no reviews

Data sheet

Type:
Inverter
Power:
1 to 5KW
Degree of protection:
IP66
Model:
Hybrids
WIFI:
Integrated
MPPT:
2
Connection:
Single-phase
