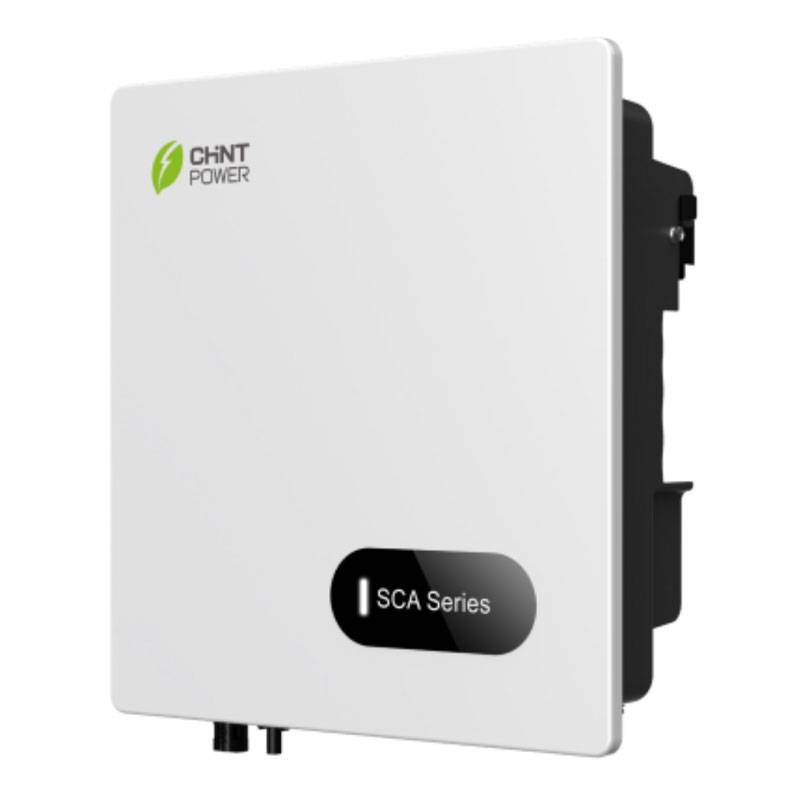

Chint Photovoltaic inverter CPS SCA3KTL-PS1/EU 3kW 1 MPPT 1.0101.0914

Chint
Chint
67B 1.0101.0914

The Chint CPS SCA3KTL-PS1/EU 3kW Photovoltaic Inverter is a perfect solution for small residential photovoltaic systems. With an output power of 3 kW and a single MPPT, this single-phase inverter is designed to ensure high performance, ease of use, and long lifespan. Equipped with an LED display, RS485/Wi-Fi connection, and IP65 protection, it is ideal for efficient and safe installation.

  • Output power: 3 kW

  • MPPT: 1 (single)

  • Input voltage: up to 500 VDC

  • Protection rating: IP65 (dust and water resistant)

  • Communication: RS485/Wi-Fi (standard)

  • Display: LED for status monitoring

  • Monitoring: Network and ground fault monitoring

  • Protection: Type II surge protection (DC and AC side), DC connection reversal, AC short circuit, current leakage.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Chint Photovoltaic inverter CPS SCA3KTL-PS1/EU 3kW 1 MPPT 1.0101.0914
€391.50
€391.50

€391.50
Tax included
Calculate shipping cost
Items Available: 5
Further availability of the manufacturer
€391.50

Buy it within and receive it from Monday, 23 February
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Chint Photovoltaic Inverter CPS SCA3KTL-PS1/EU: High Performance and Ease of Use

The Chint CPS SCA3KTL-PS1/EU inverter is equipped with a single MPPT that simplifies installation and ensures effective maximum power point tracking. It is ideal for small residential photovoltaic systems where flexibility and efficiency are essential. The input voltage up to 500 VDC makes it compatible with most residential photovoltaic modules, ensuring optimal energy production management.

Efficiency and Quiet Operation

With high efficiency and fanless operation, this inverter offers reliable performance without the typical noise of other devices. It is ideal for home installations where quiet and discreet operation is crucial. The IP65 protection rating makes it resistant to dust, sand, and rain, allowing installation both indoors and outdoors without concerns.

Advanced Connection and Monitoring

The Chint CPS SCA3KTL-PS1/EU offers RS485/Wi-Fi connections for easy setup and continuous monitoring. It is compatible with the dedicated app for remote management via Bluetooth, allowing you to view the system status and receive real-time notifications. Network and ground fault monitoring ensure the system operates correctly and safely, minimizing risks and improving system reliability.

Advanced Protections for System Safety

The inverter is equipped with numerous protection devices, including:

  • Protection against DC connection reversal

  • AC short circuit protection

  • Protection against current leakage

  • Network and ground fault monitoring

  • Surge protection: Type II (DC and AC side)

DC Input
Maximum DC Voltage 500 VDC
MPPT Operating Voltage Range 50 - 490 VDC
Start Voltage 70 VDC
Nominal DC Voltage 360 VDC
Number of MPPT 1
Number of DC Connection Sets per MPPT 1
Maximum Input Current per MPPT 15 A
Maximum DC Short Circuit Current per MPPT 20 A
Type of DC Disconnection Integrated switch
AC Output
Nominal AC Power 3 kW
Maximum AC Power 3.3 kVA
Nominal AC Voltage 220/230 V
AC Voltage Range 160 - 300 V
Type of Grid Connection L/N/PE
Maximum AC Current 15 A
Grid Frequency 50/60 Hz
Output Frequency Range 45 - 55 / 55 - 65 Hz
Power Factor (cosφ) > 0.99 (±0.8 adjustable)
Total Harmonic Distortion (THDi) < 3%
System Data
Topology Transformerless
Maximum Efficiency 97.3%
European Efficiency 96.3%
Night Consumption < 1 W
Protections
Protection against DC Connection Reversal Yes
AC Short Circuit Protection Yes
Protection against Current Leakage Yes
Network Monitoring Yes
Ground Fault Monitoring Yes
Surge Protection Type II (DC and AC side) Yes
Environmental Data
Protection Rating IP65
Cooling Method Natural convection
Operating Temperature -25°C to +60°C
Ambient Humidity 0 - 100%
Altitude 4000 m
Display and Connection
Display LED + APP (Bluetooth)
Connection RS485/Wi-Fi (Standard) and 4G (Optional)
Mechanical Data
Dimensions (W x H x D) 320 x 344 x 137 mm
Weight 6.5 kg
DC Connection Type MC4 (maximum 6 mm²)
AC Connection Type Plug and play connector
Certifications
Certifications EN 61000-6, EN/IEC 62109, IEC 61727, IEC 62116, VDE 4105, CEI 0-21, EN50549-1, VDE0126-1-1, NTS Type A, UNE 217002, RD 647, UNE 217001, INMETRO PORTARIA Nº 140, AS4777.2

There are no reviews

Data sheet

Type:
Inverter
Power:
1 to 5KW
Degree of protection:
IP65
WIFI:
Integrated
MPPT:
1
Connection:
Single-phase
