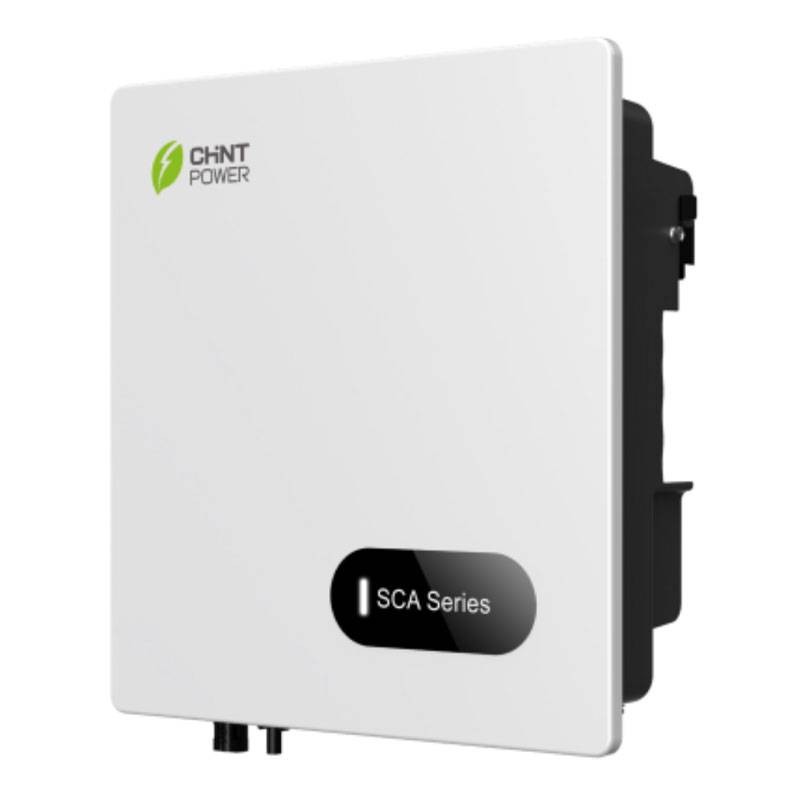

Chint photovoltaic inverter CPS SCA6KTL-PSM1/EU 6kW 2 MPPT 1.0101.0918

Chint
Chint
67B 1.0101.0918

The Chint CPS SCA6KTL-PSM1/EU 6kW Photovoltaic Inverter is a powerful and versatile solution for medium to large-sized residential photovoltaic systems. With an output power of 6 kW and two independent MPPTs, it is designed to optimize energy production even in challenging conditions, such as partial shading or different solar exposures. The IP65 protection makes it ideal for outdoor installations.

  • Output power: 6 kW

  • MPPT: 2 independent for flexible string management

  • Input voltage: up to 550 VDC

  • Efficiency: over 98%

  • Monitoring: Network and ground fault monitoring

  • RS485/Wi-Fi connections

  • Protection rating: IP65 (suitable for outdoor installations).

Do you have questions about this product or did you not find what you were looking for? Ask us!
Chint photovoltaic inverter CPS SCA6KTL-PSM1/EU 6kW 2 MPPT 1.0101.0918
€761.84
€761.84

€761.84
Tax included
Calculate shipping cost
Items Available: 5
Further availability of the manufacturer
€761.84

Buy it within and receive it from Monday, 23 February
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Chint Photovoltaic Inverter CPS SCA6KTL-PSM1/EU: Optimization and Flexibility with Dual MPPT

The Chint CPS SCA6KTL-PSM1/EU inverter is equipped with two independent MPPTs, allowing optimization of charging from two different strings of photovoltaic panels. This is particularly useful in cases of partial shading or different panel orientations, thus improving overall energy production. The input voltage up to 550 VDC ensures compatibility with a wide range of photovoltaic modules, optimizing system efficiency.

High Efficiency and Reliable Performance

With an efficiency exceeding 98%, the Chint CPS SCA6KTL-PSM1/EU inverter offers high performance even in the most complex conditions. The AFCI protection (against electric arc) increases the safety of the photovoltaic system, reducing the risk of fires caused by faults in cables or connections. Additionally, the IP65 protection makes it resistant to dust and water splashes, allowing installation in both indoor and outdoor environments, such as roofs and gardens.

Advanced Monitoring and Remote Management

The inverter is equipped with network monitoring, allowing real-time viewing and control of the system's status. It is also possible to monitor ground fault failures, ensuring the system always operates under safe conditions. The protection against DC connection reversal and AC short circuit ensures the system operates safely and reliably. The device is compliant with CEI?0?21 standards, ensuring its conformity and safety for use in Italy.

Compact Design and Weather Resistance

The compact design of the Chint CPS SCA6KTL-PSM1/EU inverter facilitates installation in confined spaces. With an IP65 protection rating, it is perfect for outdoor installations, where it is exposed to adverse weather conditions. The protection against dust, sand, and rain allows for safe installation even in challenging environments, such as gardens and industrial areas.

DC Input
Maximum DC Voltage 500 VDC
MPPT Operating Voltage Range 70 - 540 VDC
Start Voltage 90 VDC
Nominal DC Voltage 360 VDC
Number of MPPT 2
Number of DC Connection Sets per MPPT 1
Maximum Input Current per MPPT 15 A
Maximum DC Short Circuit Current per MPPT 20 A
Type of DC Disconnection Integrated Switch
AC Output
Nominal AC Power 6 kW
Maximum AC Power 6 kVA
Nominal AC Voltage 220/230 V
AC Voltage Range 160 - 300 V
Type of Grid Connection L/N/PE
Maximum AC Current 27.3 A
Grid Frequency 50/60 Hz
Output Frequency Range 45 - 55 / 55 - 65 Hz
Power Factor (cosφ) > 0.99 (±0.8 adjustable)
Total Harmonic Distortion (THDi) < 3%
System Data
Topology Transformerless
Maximum Efficiency 97.2%
European Efficiency 96.3%
Protections
Protection Against DC Connection Reversal Yes
Protection Against AC Short Circuit Yes
Protection Against Current Leakage Yes
Network Monitoring Yes
Ground Fault Monitoring Yes
AFCI (Arc Fault Circuit Interrupter) Yes
Type II Surge Protection (DC and AC side) Yes
Environmental Data
Protection Rating IP65
Cooling Method Natural Convection
Operating Temperature -25°C to +60°C
Ambient Humidity 0 - 100%
Altitude 4000 m
Display and Connection
Display LED + APP (Bluetooth)
Connection RS485/Wi-Fi (Standard) and 4G (Optional)
Mechanical data
Dimensions (W x H x D) 350 x 347 x 137 mm
Weight 8.6 kg
DC connection type MC4 (maximum 6 mm²)
AC connection type Plug and play connector
Certifications
Certifications EN 61000-6, EN/IEC 62109, IEC 61727, IEC 62116, VDE 4105, CEI 0-21, EN50549-1, VDE0126-1-1, NTS Type A, UNE 217002, RD 647, UNE 217001, INMETRO PORTARIA Nº 140, AS4777.2

There are no reviews

Data sheet

Type:
Inverter
Power:
6 to 10KW
Degree of protection:
IP65
WIFI:
Integrated
MPPT:
2
Connection:
Single-phase
