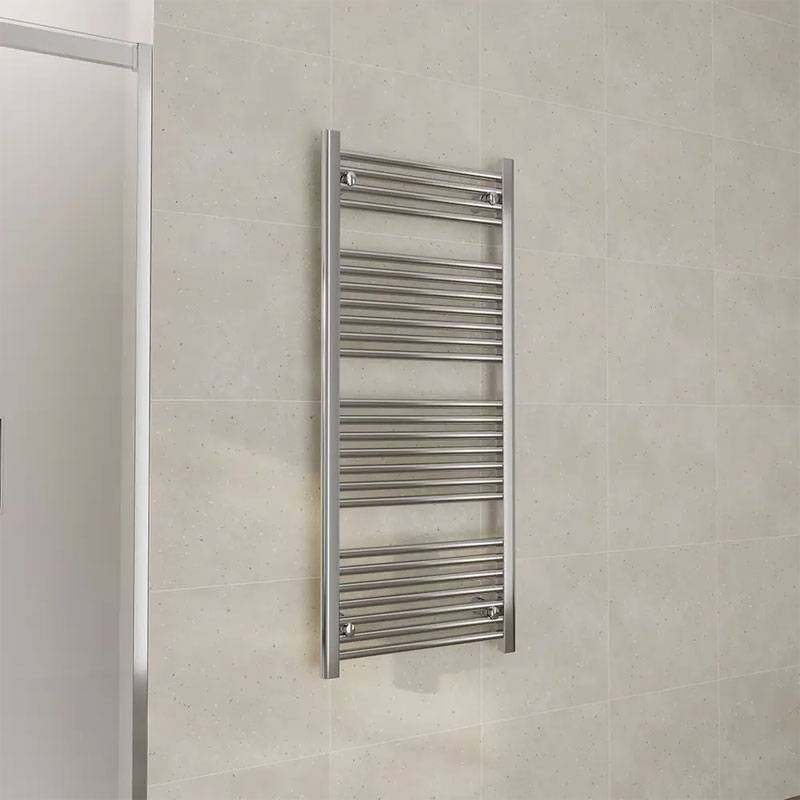

Lazzarini Sanremo straight electric radiator 803x500x450mm chrome 100974
LZZ 100974
8051406342128
Lazzarini Sanremo straight 803x500 mm chrome-plated electric radiator with 17 horizontal steel tubes. Compact, elegant, ideal for modern bathrooms and electrifiable.
-
Dimensions: 803 x 500 mm, center distance 450 mm
-
17 horizontal Ø22x0.9 mm brazedtubes
-
D profile side manifolds 40x30x1.2 mm
-
Polishedchrome finish, elegant and durable
-
Carbon steel, wall mounting with 3 brackets
-
Electrifiable with immersion heater (not included)
€92.28
Items Available: 25
: 23
Lazzarini Sanremo electric radiator: compact elegance for your bathroom
The Lazzarini Sanremo straight 803x500 mm chrome electric radiator is the ideal solution for those who want a compact yet efficient heating element, without sacrificing curated aesthetics. The polished chrome finish lends sophistication to the bathroom space, making it perfect for modern and contemporary environments.
Solid construction and optimal heat diffusion
Constructed of carbon steel, the radiator consists of 17 horizontal tubes welded to side manifolds with a characteristic "D" shape (40x30x1.2 mm profile), a configuration that optimizes heat transmission and distribution in the room. The 22 mm round tubes ensure good heat output even in small spaces.
Compatible with standard and combined systems
The model has 3x1/2" connections, including the connection for the vent valve (included), and is suitable for installation on existing systems with 450 mm spacing connections. Wall mounting is provided by 3 oval brackets, already included in the package, for stable and secure installation.
Ready for electrification and customizable
The San Remo is ready for combined use, thanks to the possibility of adding an electric immersion heater (not included).
| Feature | Value |
|---|---|
| Model | Lazzarini Sanremo straight |
| Product code | 100974 |
| Height | 803 mm |
| Width | 500 mm |
| Wheelbase | 450 mm |
| Horizontal tubes | 17 (Ø22 × 0.9 mm) |
| Manifolds | D profile 40×30×1.2 mm |
| Material | Carbon steel |
| Finish | Polished chrome plated |
| Connections | 3 × 1/2" (vent valve included) |
| Wall mounting | 3 oval brackets included |
| Electrifiable | Yes (immersion heater not included) |
| Max operating pressure | 10 bar |
| Max operating temperature | 90 °C |
| Painting | Epoxy-polyester powder |
| Packaging | P.P. corners + cardboard box + outer nylon |
| Standard equipment | 1 wall fastener kit - 1 vent valve |
| Weight | 6 kg |
| Water capacity | 3.8 liters |
| Power at ΔT 50°C | 291 W |
| Power at ΔT 30°C | 156 W |
| Power at ΔT 42.5°C | 239 W |
| Power at ΔT 60°C | 365 W |
| Electrical resistance | 300 W |
| Exponent n | 1,23286 |
There are no reviews
Data sheet
- Colour: Chrome
- Type: Electric radiators
- Installation: Vertical
- height: 803mm
- Series: San Remo
- Axle base: 450mm
- Width: 500mm
