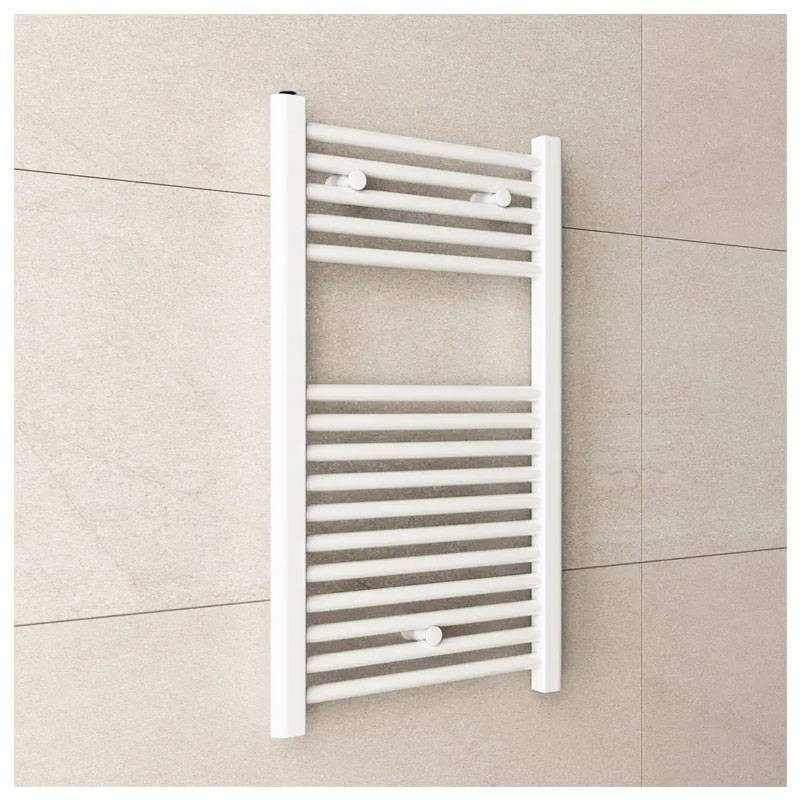

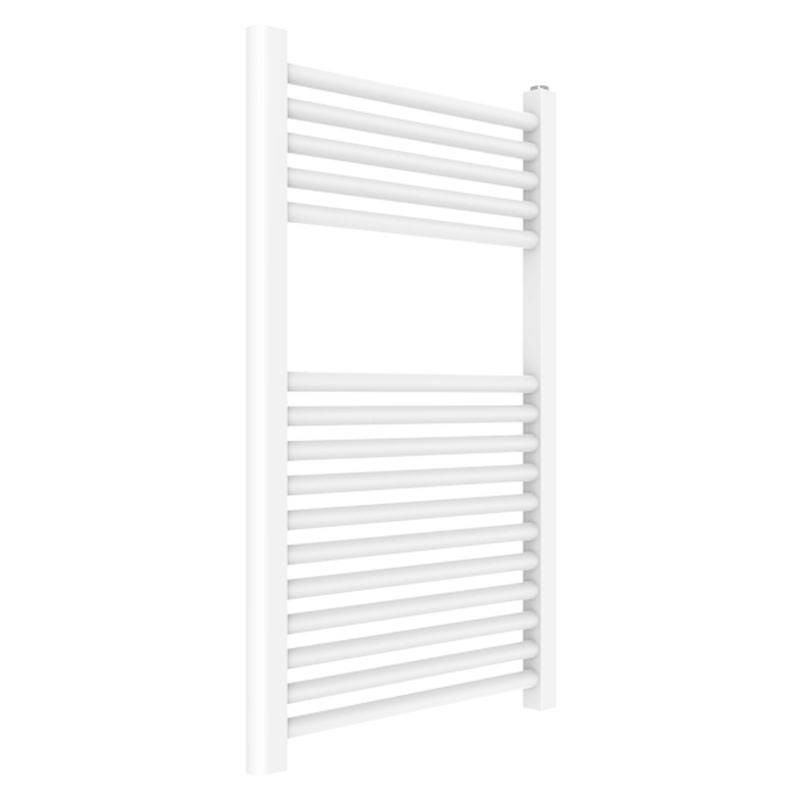

Lazzarini Sanremo straight electric radiator 803x450x400mm white 100981
LZZ 100981
8051406343200
Lazzarini Sanremo straight 803x450 mm white electric radiator, 17 steel tubes. Compact, high-performance and electrifiable. Ideal for small or secondary bathrooms.
-
Dimensions: 803 x 450 mm, center distance 400 mm
-
17 horizontal tubes Ø22x0.9 mm
-
D-profile side manifolds 40x30x1.2 mm
-
Carbon steel, white RAL 9016 finish
-
Prepared for electrification with heating element (not included)
-
Compatible with single-pipe valve, flag connection, combined use
€43.01
Items Available: 15
: 14
Lazzarini Sanremo straight electric radiator: Compact design, ideal for small spaces
The Lazzarini Sanremo straight 803x450 mm white electric radiator is designed to provide thermal comfort and functionality even in small spaces. Its essential design, with horizontal tubes and D-profile side manifolds, makes it perfect for bathroom environments where elegance must meet practicality.
Carbon steel construction and excellent efficiency
Made of carbon steel, it consists of 17 horizontal 22-mm diameter tubes brazed onto durable manifolds with an optimized profile. This configuration promotes rapid heat diffusion, keeping towels and room warm even with a small footprint.
Easy installation with standard connections
The model features 3x1/2" connections, including the vent valve, for simple installation compatible with most common systems. The 400 mm spacing allows replacement of old radiators without structural work. The 3 included oval brackets ensure secure and stable wall mounting.
Prepared for electrical operation
The San Remo 803x450 is prepared for the installation of an electric immersion heater (purchased separately), making it fully electric. An ideal option for bathrooms not connected to the central heating system or for use during mid-season periods.
| Feature | Value |
|---|---|
| Model | Lazzarini Sanremo straight |
| Product code | 100981 |
| Height | 803 mm |
| Width | 450 mm |
| Wheelbase | 400 mm |
| Horizontal tubes | 17 tubes Ø22 × 0.9 mm |
| Manifolds | D profile 40×30×1.2 mm |
| Material | Carbon steel |
| Finish | White RAL 9016 |
| Connections | 3 × 1/2" (vent valve included) |
| Wall mounting | 3 oval brackets included |
| Compatibility | Single-pipe valve, flag connection, combined use |
| Electrifiable | Yes (immersion heater not included) |
| Max operating pressure | 10 bar |
| Max operating temperature | 90 °C |
| Painting | Epoxy-polyester powder |
| Packaging | P.P. corners + cardboard box + outer nylon |
| Standard equipment | 1 wall fastener kit - 1 vent valve |
| Weight | 5.3 kg |
| Water capacity | 3.5 liters |
| Power at ΔT 50°C | 384 W |
| Power at ΔT 30°C | 206 W |
| Power at ΔT 42.5°C | 315 W |
| Power at ΔT 60°C | 481 W |
| Electrical resistance | 300 W |
| Exponent n | 1,2241 |
There are no reviews
Data sheet
- Colour: White
- Type: Electric radiators
- Installation: Vertical
- height: 803mm
- Series: San Remo
- Axle base: 400mm
- Width: 450mm
