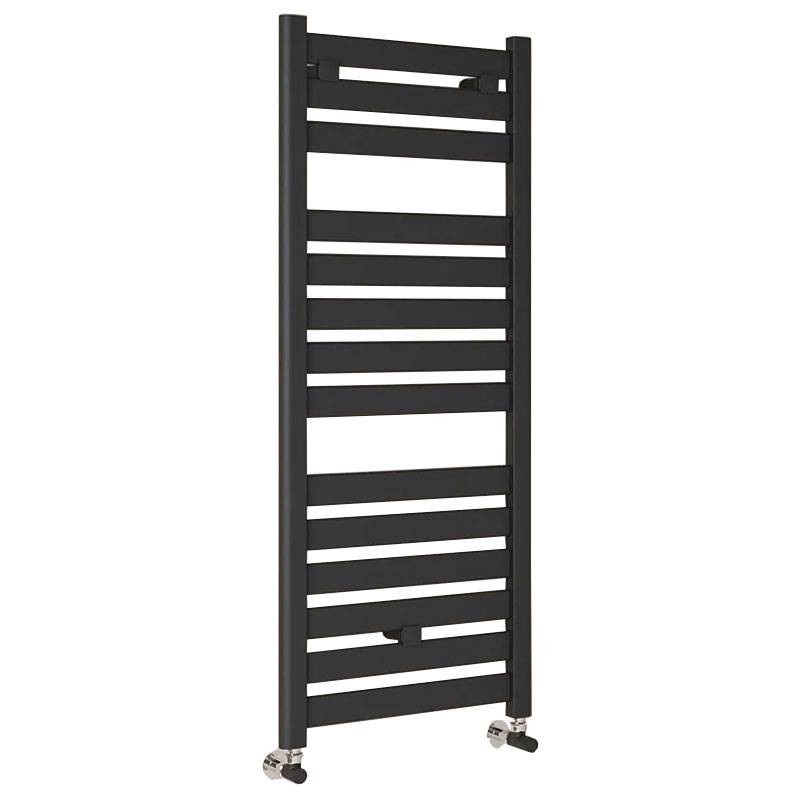

Lazzarini Capri straight electric radiator 1150x500x450mm matte black 380868
LZZ 380868
8057165786494
Lazzarini Capri straight electric radiator 1150x500 mm matte black, with 14 flat tubes. Modern design, excellent heat output and electrifiable for combined use.
-
Dimensions: 1150 x 500 mm, center distance 450 mm
-
14 flat tubes 50x10x1.5 mm, sleek and modern profile
-
D-shaped side manifolds 40x30x1.2 mm
-
RAL 9005 matte black, epoxy-coated finish
-
Heat output up to 612W (at 60°C)
-
Compatible with 500W electric heating element (not included)
-
Carbon steel, water capacity: 3.8 liters
-
Vent valve and fixing kit included
€266.25
Items Available: 2
: 1

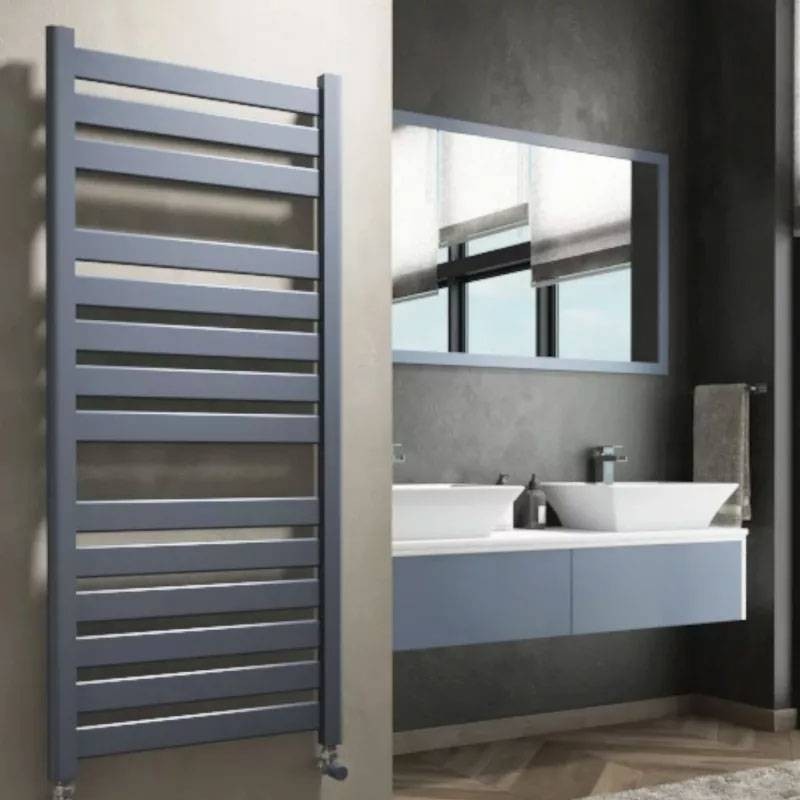

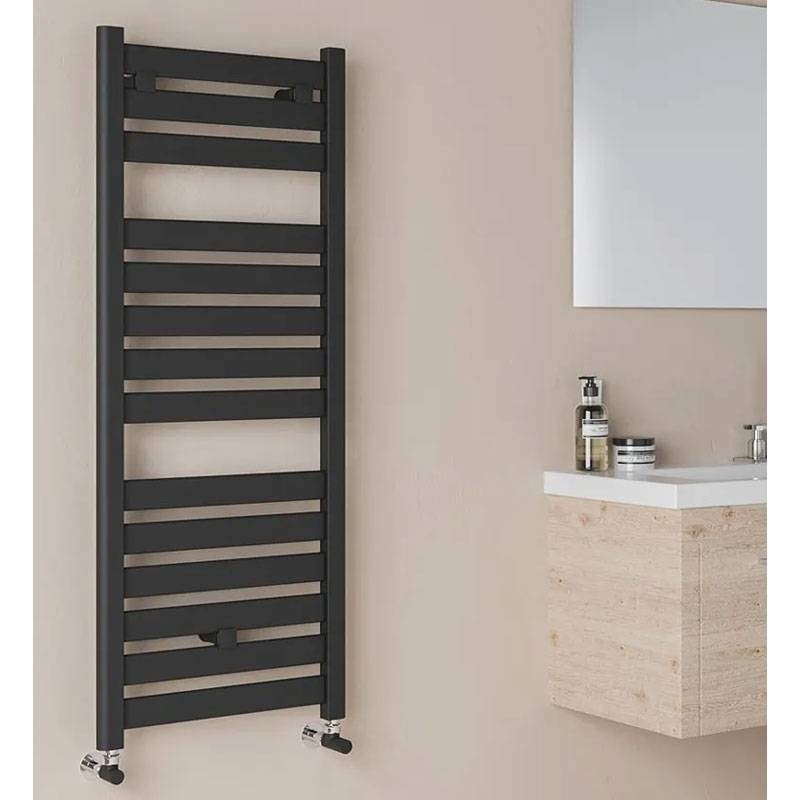

Lazzarini Capri straight electric radiator: design for modern environments
The Lazzarini Capri straight 1150x500 mm black matte electric radiator is an ideal complement for contemporary designed bathrooms. The RAL 9005 matte finish and the squared shape of the tubes give the radiator a bold and elegant aesthetic, perfect for minimal, industrial or trendy spaces.
Flat tubes for optimal heat distribution
This model consists of 14 flat tubes with dimensions 50x10x1.5 mm, brazed to D-profile side manifolds. This configuration ensures a larger radiant surface area and higher thermal efficiency, offering powers from 260W to 612W depending on the operating temperature.
Solid construction and quality materials
Made of carbon steel and painted with epoxy-polyester powder, the Lazzarini Capri radiator guarantees corrosion resistance, durability, and a smooth, durable finish. Internal capacity is 3.8 liters of water, with a total weight of 10.9 kg.
Electrifiable for maximum versatility
The model is prepared for the installation of a 500W electric immersion heater (purchased separately), allowing it to be used in all-electric mode, ideal for the mid-season months or in the absence of central heating.
Easy installation and complete equipment
Wall mounting is via 3 brackets included in the package, along with the vent valve. Standard 3x1/2" connections make the product compatible with major domestic plumbing systems. The maximum operating temperature is 90°C, making it suitable even for high-temperature systems.
| Feature | Value |
|---|---|
| Model | Lazzarini Capri straight |
| Product code | 380868 |
| Height | 1150 mm |
| Width | 500 mm |
| Wheelbase | 450 mm |
| Flat tubes | 14 tubes 50×10×1.5 mm |
| Manifolds | D profile 40×30×1.2 mm |
| Color | RAL 9005 matte black |
| Material | Carbon steel |
| Finish | Epoxy-polyester powder coating |
| Power at ΔT 30°C | 260 W |
| Power at ΔT 42.5°C | 400 W |
| Power at ΔT 50°C | 488 W |
| Power at ΔT 60°C | 612 W |
| Compatible heating element | 500 W (not included) |
| Exponent n | 1,2371 |
| Water capacity | 3.8 liters |
| Weight | 10.9 kg |
| Max operating temperature | 90 °C |
| Connections | 3 × 1/2" (vent valve included) |
| Wall mounting | 3 brackets included |
There are no reviews
Data sheet
- Colour: Matte black
- Type: Electric radiators
- Installation: Vertical
- height: 1150mm
- Series: Capri
- Axle base: 450mm
- Width: 500mm
