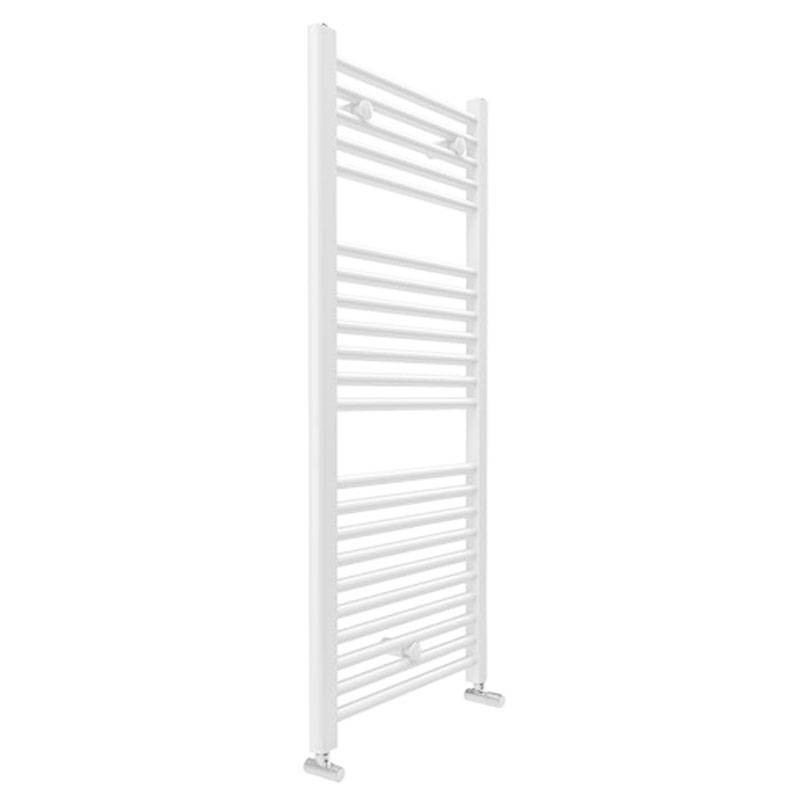

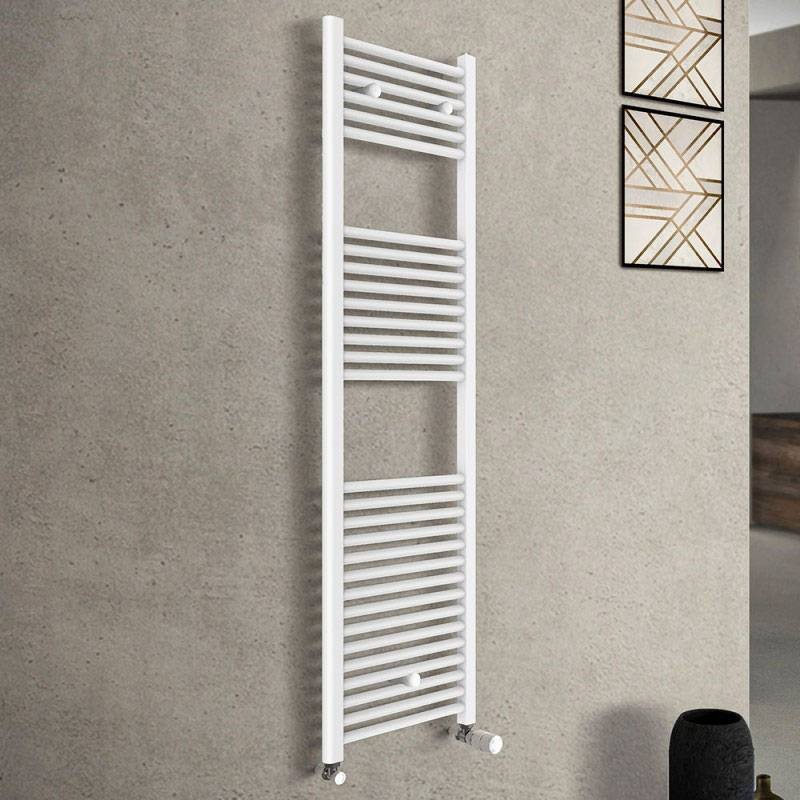

Lazzarini Sanremo straight electric radiator 1110x500x450mm white 386475
LZZ 386475
8051406340988
Lazzarini Sanremo straight electric radiator 1110x500 mm, made of white steel with 22 horizontal pipes. Compact, efficient and electrifiable, ideal for any modern bathroom.
-
Dimensions: 1110 x 500 mm, center distance 450 mm
-
22 horizontal tubes Ø22x0.9 mm
-
D-profile side manifolds 40x30x1.2 mm
-
Carbon steel, white RAL 9016 finish
-
Connections 3x1/2", vent valve connection included
-
Electrifiable with immersion heater (not included)
€51.18
Items Available: 12
: 11
Lazzarini Sanremo straight electric radiator compact and functional for your bathroom
The Lazzarini Sanremo straight 1110x500 mm electric radiator is designed to offer high performance in a small space. Perfect for medium-sized bathrooms, this towel warmer combines linear aesthetics and functionality, thanks to its straight design with horizontal tubes and white RAL 9016 finish that fits any decorating style.
Steel structure and excellent heat diffusion
The structure is made of carbon steel, with 22 mm diameter horizontal round tubes brazed to D-section side manifolds (40x30 mm). This combination ensures even heat distribution, optimizing comfort in the bathroom environment and keeping towels or bathrobes warm and dry.
Easy installation and compatibility with existing systems
Equipped with 3x1/2" connections, including a vent valve connection, the radiator is designed for easy installation on standard systems. It is attached to the wall using 3 oval brackets, which ensure stability and ease of installation. The 450 mm spacing facilitates any replacements without having to modify the existing system.
Electrifiable for all-weather use
The San Remo model is prepared for the installation of an electric immersion heater (purchased separately).
| Feature | Value |
|---|---|
| Model | Lazzarini Sanremo straight |
| Product code | 386475 |
| Height | 1110 mm |
| Width | 500 mm |
| Wheelbase | 450 mm |
| Horizontal tubes | 22 (Ø22 × 0.9 mm) |
| Manifolds | D profile 40×30×1.2 mm |
| Material | Carbon steel |
| Color | White RAL 9016 |
| Connections | 3 × 1/2" (vent valve included) |
| Wall mounting | 3 oval brackets included |
| Electrifiable | Yes (immersion heater not included) |
| Max operating pressure | 10 bar |
| Max operating temperature | 90 °C |
| Painting | Epoxy-polyester powder |
| Packaging | P.P. corners + cardboard box + outer nylon |
| Standard equipment | 1 wall fastener kit - 1 vent valve |
| Weight | 7.9 kg |
| Water capacity | 5 liters |
| Power at ΔT 50°C | 512 W |
| Power at ΔT 30°C | 272 W |
| Power at ΔT 42.5°C | 419 W |
| Power at ΔT 60°C | 643 W |
| Electrical resistance | 500 W |
| Exponent n | 1,24306 |
There are no reviews
Data sheet
- Colour: White
- Type: Electric radiators
- Installation: Vertical
- height: 1110mm
- Series: San Remo
- Axle base: 450mm
- Width: 500mm
