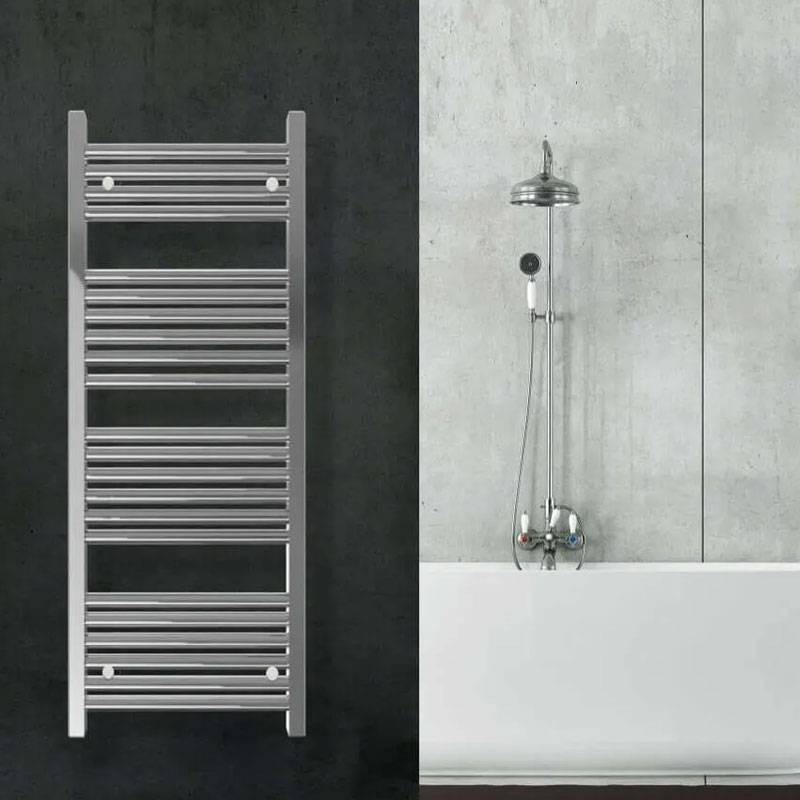

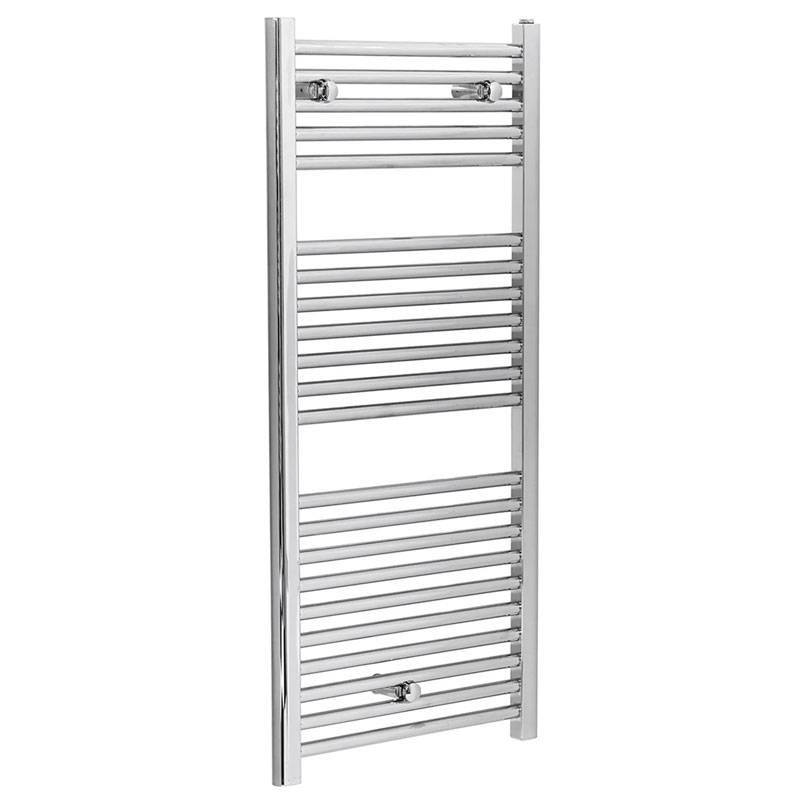

Lazzarini Sanremo straight electric radiator 1110x550x500mm chrome 386493
LZZ 386493
8051406341329
Lazzarini Sanremo straight electric radiator 1110x550 mm chrome, 22 horizontal steel tubes. Elegant, high-performance and electrifiable, perfect for modern bathroom environments.
-
Dimensions: 1110 x 550 mm, wheelbase 500 mm
-
22 horizontal tubes Ø22x0.9 mm
-
D profile manifolds 40x30x1.2 mm
-
Polished chrome finish, elegant and durable
-
Prepared for electrification (heating element not included)
-
Compatible with single-pipe valve, flag connection, combined use
€113.78
Items Available: 11
: 10
Lazzarini Sanremo straight electric radiator: Elegance and functionality in one radiator
The Lazzarini Sanremo straight 1110x550 mm chrome electric radiator combines modern design and advanced functionality, becoming a true complement to the bathroom. The polished chrome finish gives brightness and style to the room, perfect for contemporary furnishings.
Solid structure and optimal thermal performance
Made of carbon steel, this model consists of 22 horizontal tubes with a diameter of 22 mm and a thickness of 0.9 mm, brazed on D-profile side manifolds (40x30x1.2 mm). The configuration ensures even heat distribution and rapid drying of towels, increasing daily comfort.
Simplified installation and system compatibility
The radiator has standard 3x1/2" connections, including the connection for the vent valve, and is supplied with 3 oval brackets for wall mounting. The 500 mm spacing ensures easy installation, including replacement of existing models, without the need for structural work.
Electrifiable for versatile use
Prepared for the installation of an electric immersion heater (not included), this radiator can be used in electric mode. An ideal solution for providing constant heat even in months when central heating is insulated.
| Feature | Value |
|---|---|
| Model | Lazzarini Sanremo straight |
| Product code | 386493 |
| Height | 1110 mm |
| Width | 550 mm |
| Wheelbase | 500 mm |
| Horizontal tubes | 22 tubes Ø22 × 0.9 mm |
| Manifolds | D profile 40×30×1.2 mm |
| Material | Carbon steel |
| Finish | Polished chrome |
| Connections | 3 × 1/2" (vent valve included) |
| Wall mounting | 3 oval brackets included |
| Compatibility | Single-pipe valve, flag connection, combined use |
| Electrifiable | Yes (immersion heater not included) |
| Max operating pressure | 10 bar |
| Max operating temperature | 90 °C |
| Painting | Epoxy-polyester powder |
| Packaging | P.P. corners + cardboard box + outer nylon |
| Standard equipment | 1 wall fastener kit - 1 vent valve |
| Weight | 8.3 kg |
| Water capacity | 5.3 liters |
| Power at ΔT 50°C | 384 W |
| Power at ΔT 30°C | 202 W |
| Power at ΔT 42.5°C | 313 W |
| Power at ΔT 60°C | 484 W |
| Electrical resistance | 300 W |
| Exponent n | 1,25814 |
There are no reviews
Data sheet
- Colour: Chrome
- Type: Electric radiators
- Installation: Vertical
- height: 1110mm
- Series: San Remo
- Axle base: 500mm
- Width: 550mm
