Lazzarini Sanremo straight electric radiator 1110x500x450mm chrome 386492
LZZ 386492
8051406341312

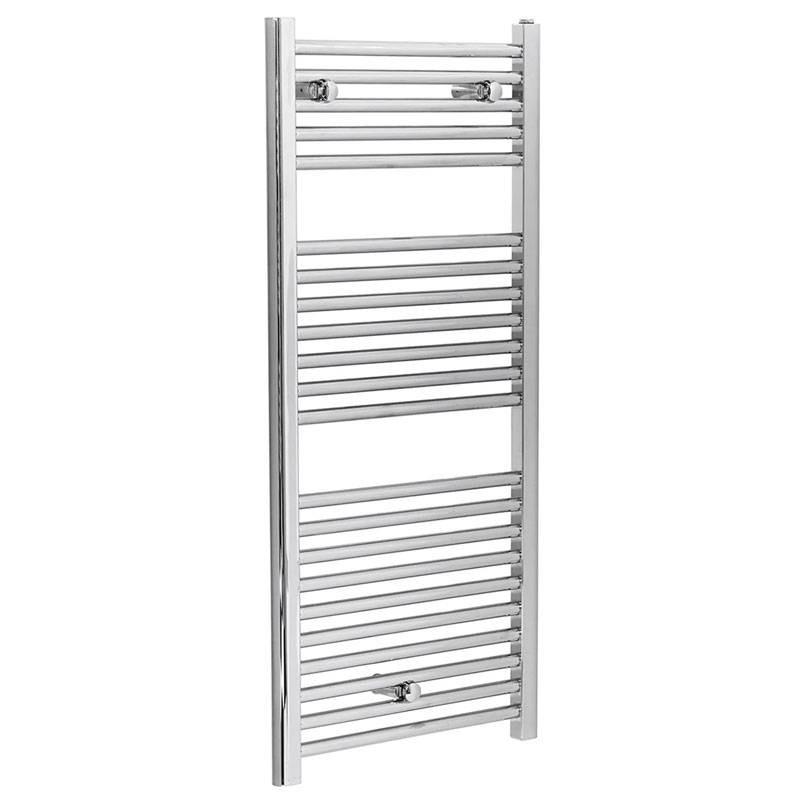

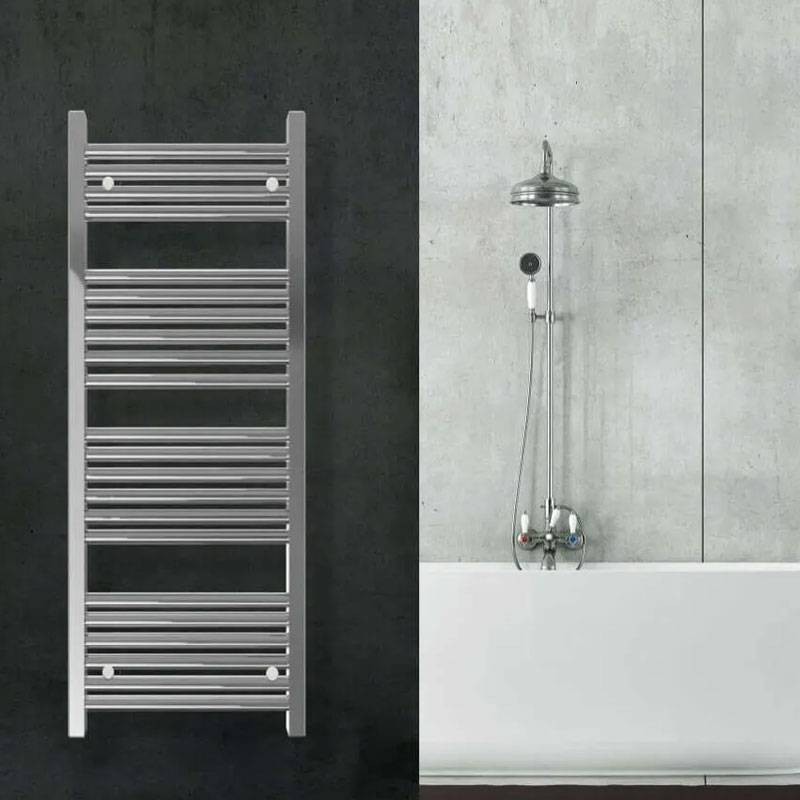

Lazzarini Sanremo straight 1110x500 mm chrome-plated electric radiator with 22 horizontal pipes. Elegant, high-performance and electrifiable, ideal for heating and furnishing modern bathroom environments.
-
Dimensions: 1110 x 500 mm, center distance 450 mm
-
22 horizontal tubes Ø22x0.9 mm
-
D-profile side manifolds 40x30x1.2 mm
-
Polished chrome finish, made of carbon steel
-
Electrifiable with immersion heater (not included)
-
Compatible with single-pipe valve, flag connection, combined use
€108.61
Items Available: 12
: 11
Lazzarini Sanremo straight electric radiator: chrome elegance and everyday functionality
The Lazzarini Sanremo 1110x500 mm chrome electric radiator is a perfect solution for those looking for a product capable of combining style and comfort. Its polished chrome finish brings brightness and sophistication to the bathroom, easily adapting to any furnishing style, from modern to revisited classic.
Efficient structure and rapid heating
The structure consists of 22 horizontal tubes with a diameter of 22 mm and thickness of 0.9 mm, connected to side manifolds with a 40x30 mm "D" profile. This configuration optimizes heat circulation, providing excellent heat output and also enabling rapid drying of towels and robes.
Easy installation and universal compatibility
Equipped with standard 3x1/2" connections, including vent valve connection, the Sanremo comes with 3 oval brackets for wall mounting. The 450 mm spacing ensures ease of installation even when replacing existing models, without the need for system modifications.
Versatility of use: electrical
This model is prepared for the installation of an electric immersion heater (purchased separately), offering the possibility of use in electric mode., a perfect solution for ensuring thermal comfort all year round, even when the central system is disconnected.
| Feature | Value |
|---|---|
| Model | Lazzarini Sanremo straight |
| Product code | 386492 |
| Height | 1110 mm |
| Width | 500 mm |
| Wheelbase | 450 mm |
| Horizontal tubes | 22 tubes Ø22 × 0.9 mm |
| Manifolds | D profile 40×30×1.2 mm |
| Material | Carbon steel |
| Finish | Polished chrome |
| Connections | 3 × 1/2" (vent valve included) |
| Wall mounting | 3 oval brackets included |
| Compatibility | Single-pipe valve, flag connection, combined use |
| Electrifiable | Yes (immersion heater not included) |
| Max operating pressure | 10 bar |
| Max operating temperature | 90 °C |
| Painting | Epoxy-polyester powder |
| Packaging | P.P. corners + cardboard box + outer nylon |
| Standard equipment | 1 wall fastener kit - 1 vent valve |
| Weight | 7.8 kg |
| Water capacity | 5 liters |
| Power at ΔT 50°C | 353 W |
| Power at ΔT 30°C | 186 W |
| Power at ΔT 42.5°C | 288 W |
| Power at ΔT 60°C | 444 W |
| Electrical resistance | 300 W |
| Exponent n | 1,25644 |
There are no reviews
Data sheet
- Colour: Chrome
- Type: Electric radiators
- Installation: Vertical
- height: 1110mm
- Series: San Remo
- Axle base: 450mm
- Width: 500mm
