Lazzarini Sanremo straight electric radiator 1110x550x500mm white 386476
LZZ 386476
8051406340995

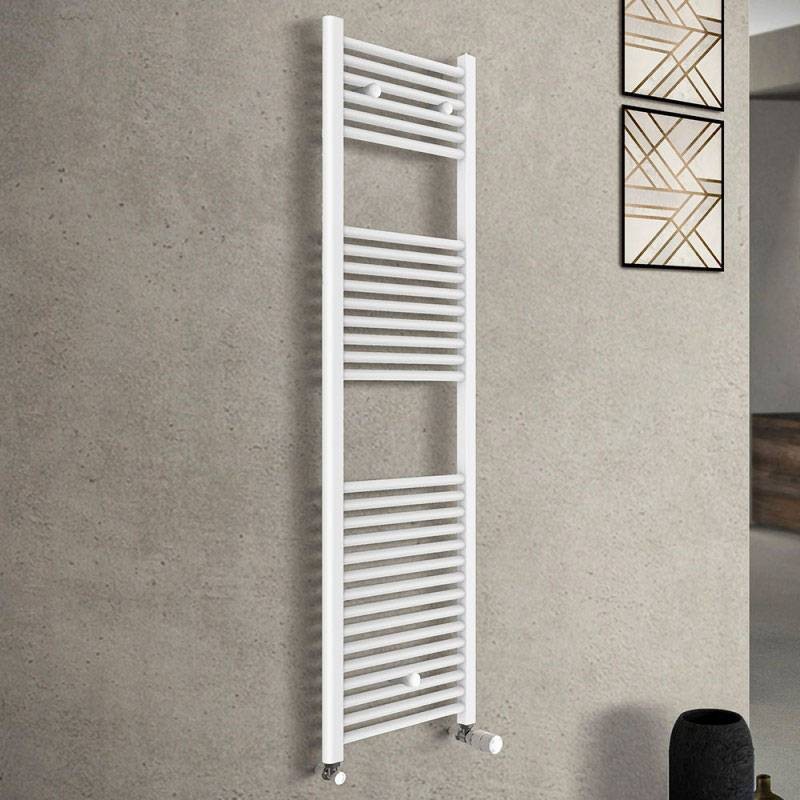

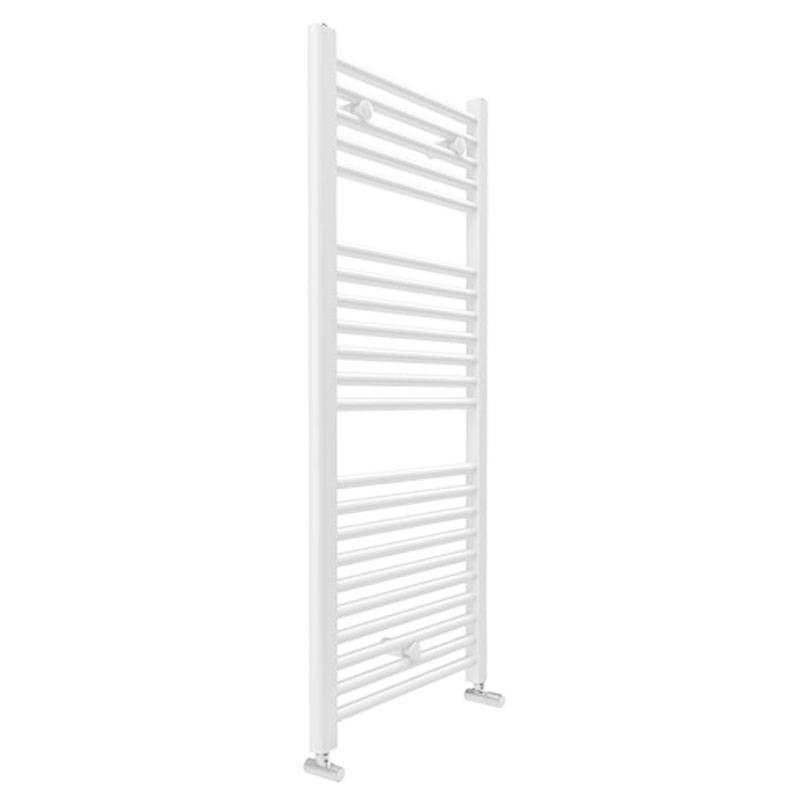

Lazzarini Sanremo straight electric radiator 1110x550 mm white, with 22 steel pipes. Elegant, efficient and electrifiable. Ideal for modern bathroom environments.
-
Dimensions: 1110 x 550 mm, center distance 500 mm
-
22 horizontal tubes Ø22x0.9 mm
-
D-profile side manifolds 40x30x1.2 mm
-
Color white RAL 9016, carbon steel
-
Connections 3x1/2", vent valve included
-
Electrifiable with immersion heater (not included)
€53.63
Items Available: 10
: 9
Lazzarini Sanremo straight electric radiator: Clean design and high thermal efficiency
The Lazzarini Sanremo straight 1110x550 mm electric radiator is the perfect choice for those looking for a functional product with a modern, clean aesthetic. Thanks to the white RAL 9016 finish, it easily adapts to any style of bathroom decor, enhancing the environment with discretion and elegance.
Solid steel construction and even heat distribution
Made of carbon steel, this radiator consists of 22 round horizontal tubes with a diameter of 22 mm, brazed to two D-section side manifolds (40x30x1.2 mm). A configuration designed to provide uniform heat transmission, ideal for heating towels and improving room comfort.
Easy to install and compatible with standard systems
The radiator has 3x1/2" connections, including a vent valve connection, and is designed for wall mounting via 3 oval brackets, included in the package. The 500 mm spacing makes it compatible with many existing systems, facilitating replacement work or installation from scratch.
Prepared for combined electrical use
The San Remo model is electrifiable with the installation of an electric immersion heater (not supplied).
| Feature | Value |
|---|---|
| Model | Lazzarini Sanremo straight |
| Product code | 386476 |
| Height | 1110 mm |
| Width | 550 mm |
| Wheelbase | 500 mm |
| Horizontal tubes | 22 (Ø22 × 0.9 mm) |
| Manifolds | D profile 40×30×1.2 mm |
| Material | Carbon steel |
| Color | White RAL 9016 |
| Connections | 3 × 1/2" (vent valve included) |
| Wall mounting | 3 oval brackets included |
| Electrifiable | Yes (immersion heater not included) |
| Max operating pressure | 10 bar |
| Max operating temperature | 90 °C |
| Painting | Epoxy-polyester powder |
| Packaging | P.P. corners + cardboard box + outer nylon |
| Standard equipment | 1 wall fastener kit - 1 vent valve |
| Weight | 8.5 kg |
| Water capacity | 5.3 liters |
| Power at ΔT 50°C | 555 W |
| Power at ΔT 30°C | 294 W |
| Power at ΔT 42.5°C | 454 W |
| Power at ΔT 60°C | 697 W |
| Electrical resistance | 500 W |
| Exponent n | 1,24413 |
There are no reviews
Data sheet
- Colour: White
- Type: Electric radiators
- Installation: Vertical
- height: 1110mm
- Series: San Remo
- Axle base: 500mm
- Width: 550mm
