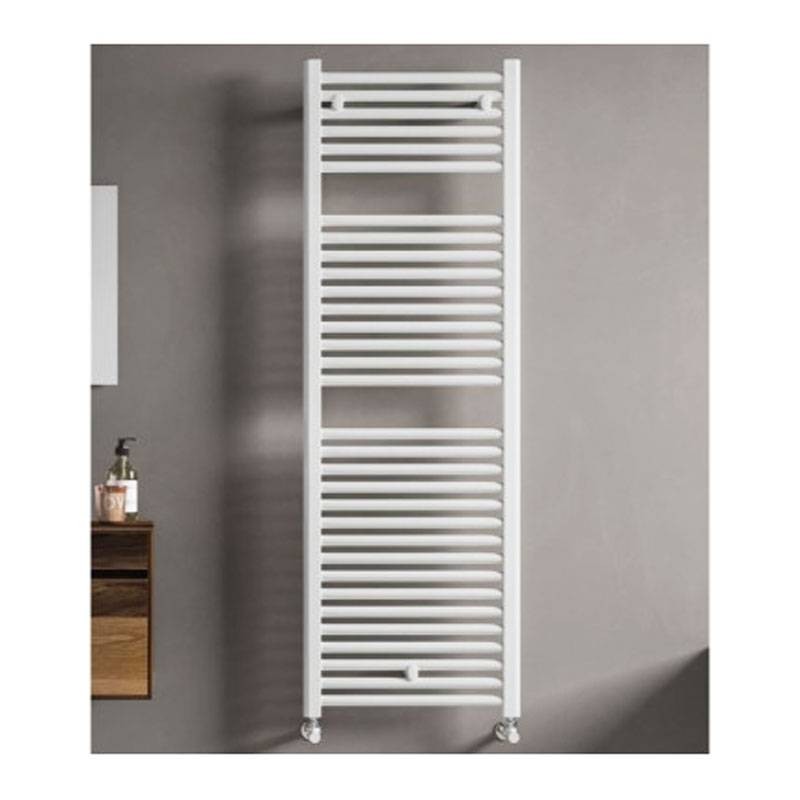

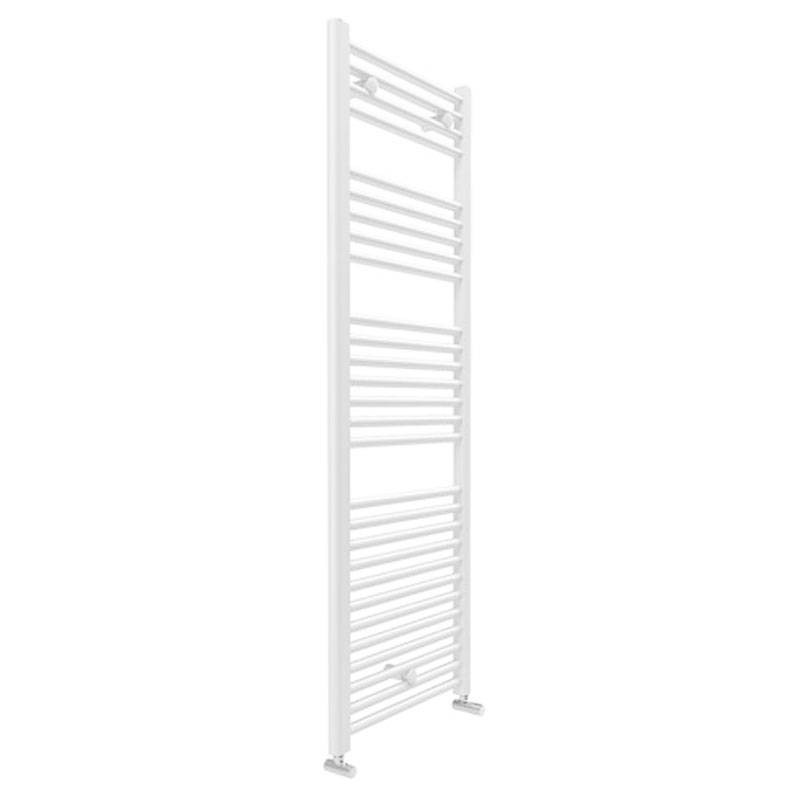

Lazzarini Sanremo straight electric radiator 1420x500x450mm white 386479
LZZ 386479
8051406341022
Lazzarini Sanremo straight electric radiator 1420x500 mm, made of white steel with 28 horizontal pipes. Elegant, efficient, electrifiable and customizable.
-
Dimensions: 1420 x 500 mm, center distance 450 mm
-
28 horizontal brazed tubes Ø22x0.9 mm
-
D-profile side manifolds 40x30x1.2 mm
-
Color white RAL 9016, carbon steel
-
Compatible with combined use, single-pipe valve and flag connection
-
Electrifiable with immersion heater (not included)
€65.60
Items Available: 1
Lazzarini Sanremo electric radiator: essential and functional design
The Lazzarini Sanremo straight electric radiator 1420x500 mm is the ideal solution for furnishing the bathroom space with taste and practicality. Its clean lines and white RAL 9016 finish make it an elegant and versatile element, capable of blending into both modern and classic environments. The straight version stands out for its symmetrical design and minimal wall space.
Solid steel construction and excellent thermal performance
Made of carbon steel, the radiator consists of 28 round horizontal tubes carefully brazed to D-profile side manifolds, which ensure even heat distribution and long life. The sturdy structure ensures excellent performance even with prolonged and intensive use.
Ready to install and easy to integrate
The model is equipped with 3x1/2" connections, including a vent valve connection, and attaches securely to the wall with the 3 oval brackets provided. The 450 mm spacing makes it compatible with most common installations. It is suitable for single-pipe, flag-mounted and combined-use installations, offering maximum flexibility in design.
Electrifiable and fully customizable
The Sanremo radiator can be electrified with the addition of an electric immersion heater (purchased separately). Also, in addition to the standard white color, it is available on request in any RAL shade and in VOV's exclusive mineral finishes, for total aesthetic customization.
| Feature | Value |
|---|---|
| Model | Lazzarini Sanremo straight |
| Product code | 386479 |
| Height | 1420 mm |
| Width | 500 mm |
| Wheelbase | 450 mm |
| Horizontal tubes | 28 (Ø22 × 0.9 mm) |
| Manifolds | D profile 40×30×1.2 mm |
| Material | Carbon steel |
| Standard color | White RAL 9016 |
| Connections | 3 × 1/2" (vent valve included) |
| Wall mounting | 3 oval brackets included |
| Compatibility | Single-pipe valve, flag connection, combined use |
| Electrifiable | Yes (immersion heater not included) |
| Customizable | Yes, with RAL colors and VOV finishes |
| Max operating pressure | 10 bar |
| Max operating temperature | 90 °C |
| Painting | Epoxy-polyester powder |
| Packaging | P.P. corners + cardboard box + outer nylon |
| Standard equipment | 1 wall fastener kit - 1 vent valve |
| Weight | 10.0 kg |
| Water capacity | 6.3 liters |
| Power at ΔT 50°C | 669 W |
| Power at ΔT 30°C | 354 W |
| Power at ΔT 42.5°C | 547 W |
| Power at ΔT 60°C | 841 W |
| Electrical heating element | 700 W |
| Exponent n | 1,24908 |
There are no reviews
Data sheet
- Colour: White
- Type: Electric radiators
- Installation: Vertical
- height: 1420mm
- Series: San Remo
- Axle base: 450mm
- Width: 500mm
