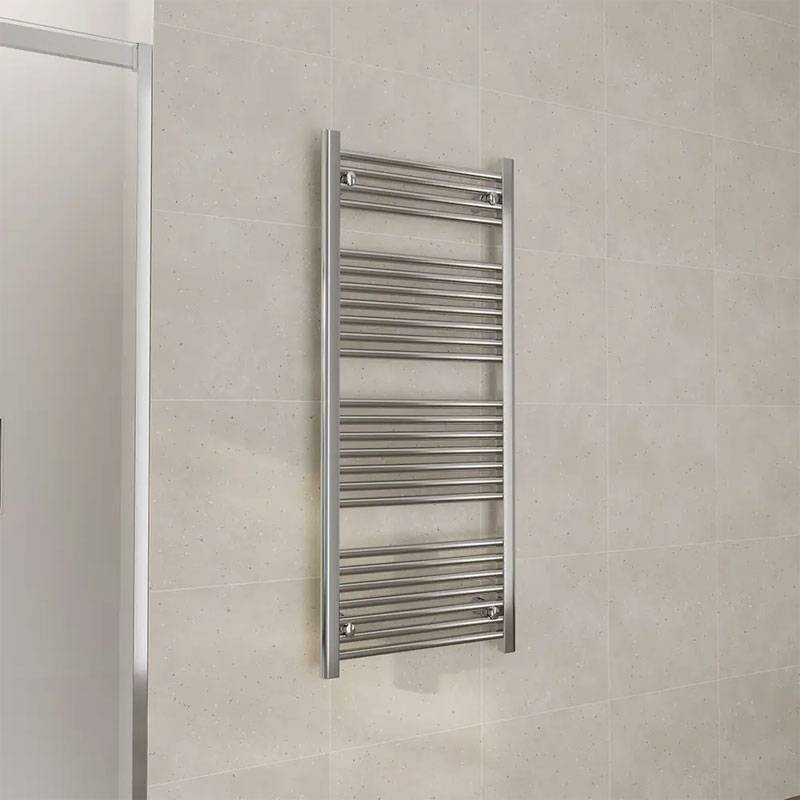

Lazzarini Sanremo straight electric radiator 803x450x400mm chrome 100973
LZZ 100973
8051406342104
Lazzarini Sanremo straight 803x450 mm chrome-plated electric radiator, 17 steel tubes. Compact, elegant and electrifiable. Ideal for modern and functional bathroom environments.
-
Dimensions: 803 x 450 mm, center distance 400 mm
-
17 horizontal tubes Ø22x0.9 mm
-
D-profile side manifolds 40x30x1.2 mm
-
Polished chrome finish, carbon steel
-
Prepared for electrification with heating element (not included)
-
Wall installation with 3 oval brackets included
€88.74
Items Available: 25
: 23
Lazzarini Sanremo straight electric radiator: Compact elegance for your bathroom
The Lazzarini Sanremo straight 803x450 mm chrome electric radiator is designed to combine modern style, compactness and thermal efficiency in a single product. With its polished chrome finish, it brings brightness and a refined touch to any bathroom, even small ones.
Sturdy structure and excellent thermal efficiency
Composed of 17 horizontal carbon steel tubes with a diameter of 22 mm and thickness of 0.9 mm, welded on D-profile side manifolds (40x30x1.2 mm), this radiator ensures even heat distribution and efficient drying of towels and bathrobes.
Easy installation and universal compatibility
The radiator is equipped with standard 3x1/2" connections, including connection for vent valve (included), and comes with 3 oval brackets for easy wall mounting. Thanks to its 400 mm spacing, it is compatible with most existing systems, also facilitating replacements.
Electrifiable for year-round comfort
The San Remo is prepared for the installation of an electric immersion heater (not included), allowing it to be used in electric-only mode.
| Feature | Value |
|---|---|
| Model | Lazzarini Sanremo straight |
| Product code. | 100973 |
| Height | 803 mm |
| Width | 450 mm |
| Wheelbase | 400 mm |
| Horizontal tubes | 17 tubes Ø22 × 0.9 mm |
| Manifolds | D profile 40×30×1.2 mm |
| Material | Carbon steel |
| Finish | Polished chrome |
| Connections | 3 × 1/2" (vent valve included) |
| Wall mounting | 3 oval brackets included |
| Electrifiable | Yes (immersion heater not included) |
| Max operating pressure | 10 bar |
| Max operating temperature | 90 °C |
| Painting | Epoxy-polyester powder |
| Packaging | P.P. corners + cardboard box + outer nylon |
| Standard equipment | 1 wall fastener kit - 1 vent valve |
| Weight | 5.7 kg |
| Water capacity | 3.5 liters |
| Power at ΔT 50°C | 266 W |
| Power at ΔT 30°C | 142 W |
| Power at ΔT 42.5°C | 218 W |
| Power at ΔT 60°C | 334 W |
| Electrical resistance | 300 W |
| Exponent n | 1,23249 |
There are no reviews
Data sheet
- Colour: Chrome
- Type: Electric radiators
- Installation: Vertical
- height: 803mm
- Series: San Remo
- Axle base: 400mm
- Width: 450mm
