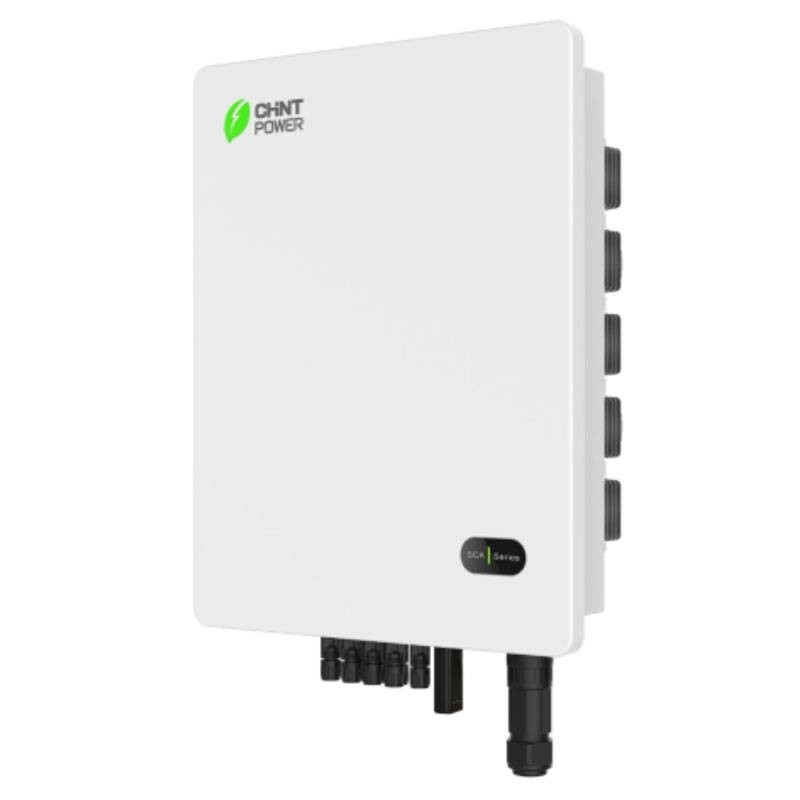

Chint three-phase photovoltaic inverter CPS SCA15KTL-T1/UE 15kW 2 MPPT 1.0101.0924

Chint
Chint
67B 1.0101.0924

The Chint CPS SCA15KTL-T1/UE 15kW Photovoltaic Inverter is an advanced solution for large commercial and residential photovoltaic systems. With its 15 kW power, two independent MPPTs, and a wide input voltage up to 1100 VDC, it ensures high efficiency and reliability in complex conditions. It is designed to offer easy installation, flexibility, and optimal performance.

  • Power: 15 kW

  • Type: Three-phase inverter with 2 MPPTs

  • Input voltage: up to 1100 VDC

  • Maximum efficiency: 97.87%

  • Maximum current per string: 15A

  • DC/AC ratio: 150%

  • Protection rating: IP66 (weather-resistant)

  • Communication: RS485/Wi-Fi and App with Bluetooth

  • Display: LED for status monitoring.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Chint three-phase photovoltaic inverter CPS SCA15KTL-T1/UE 15kW 2 MPPT 1.0101.0924
€1,223.66
€1,223.66

€1,223.66
Tax included
Calculate shipping cost
Out of stock
Further availability of the manufacturer
Incoming
€1,223.66

Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Chint Photovoltaic Inverter CPS SCA15KTL-T1/UE: High Performance and Configuration Flexibility

The CPS SCA15KTL-T1/UE inverter is equipped with two independent MPPTs, allowing optimization of photovoltaic energy production in situations where strings are arranged in environments with partial shading or different sun exposures. The input voltage up to 1100 VDC and the maximum current of 15A per string make it compatible with a wide range of photovoltaic modules, enhancing installation flexibility.

High Efficiency and Reliability

The inverter offers a maximum efficiency of 98.12%, ensuring high energy yield even under challenging usage conditions. Thanks to the DC/AC ratio of 150%, it can handle systems with multiple string configurations without compromising performance. The lower start-up voltage and the width of the MPPT range allow the inverter to operate in a wide range of climatic and solar conditions.

Remote Monitoring and Control

The Chint CPS SCA15KTL-T1/UE is equipped with an LED display that clearly shows the operating status of the inverter. Additionally, it offers the possibility to monitor and manage the system via RS485/Wi-Fi connection and the dedicated app with Bluetooth, allowing easy and convenient remote management. This ensures constant visibility on performance and the ability to diagnose any issues in real-time.

Advanced Installation and Protection

With an IP66 protection rating, this inverter is designed to withstand harsh environmental conditions, protecting the device from dust, sand, and water splashes. It is perfect for installations in outdoor environments or spaces where resistance to weather conditions is crucial.

DC Input
Maximum DC Voltage 1100VDC
Operating Voltage Range for MPPT 200 - 1000VDC
Start-up Voltage 250 VDC
Nominal DC Voltage 600 VDC
Number of MPPT 2
Number of DC Connection Sets per MPPT 1
Maximum DC Short Circuit Current per MPPT 23A
Type of DC Disconnection Integrated switch
AC Output
Nominal AC Power 15kW
Maximum AC Power 16.5 kVA
Nominal AC Voltage 380/400 V
AC Voltage Range 277-520V
Type of Grid Connection 3 / N / PE
Maximum AC Current 25A
Grid Frequency 50/60 Hz
Grid Frequency Range 45 - 55/55 - 65 Hz
Power Factor (cosq) > 0.99 (+/-0.8 adjustable)
Total Harmonic Distortion (THDi) < 3%
System Data
Topology Transformerless
Maximum Efficiency 97.87%
European Efficiency 97.13%
Protections
Protection against DC Connection Reversal Present
Protection against AC Short Circuit Present
Protection against Current Leakage Present
24-hour Grid Monitoring Present
Ground Fault Monitoring Present
Type II Surge Protections (DC and AC side) Present
AFCI (Arc Fault Circuit Interrupter) Present
Environmental Data
Protection Rating IP66
Cooling Method Fans
Operating Temperature -25°C - +60°C
Ambient Humidity 0 - 100%
Altitude 2000 meters
Display and Connection
Display LED + APP (Bluetooth)
Connection RS485/WI-FI (standard) and 4G (Optional)
Mechanical Data
Dimensions (WxHxD) 530x426x200mm
Weight 22 Kg
Type of DC Connection MC4 (Maximum 6 mm²)
Tipo di connessione CA OT/DT terminal (Maximum 35 mmQ)

There are no reviews

Data sheet

Type:
Inverter
Power:
11 to 15KW
Degree of protection:
IP66
WIFI:
Integrated
MPPT:
2
Connection:
Three-phase
