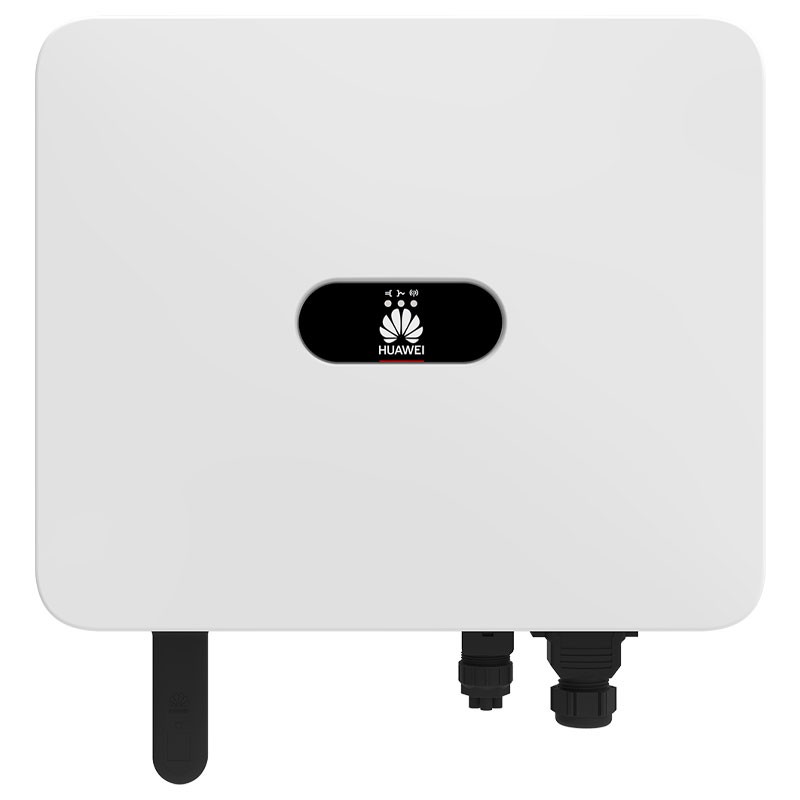

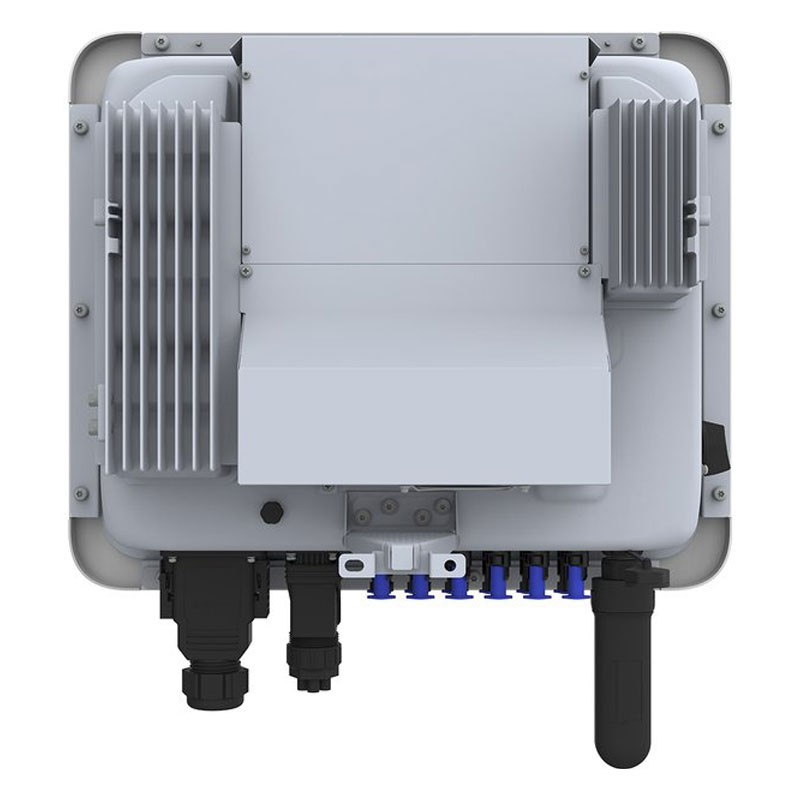

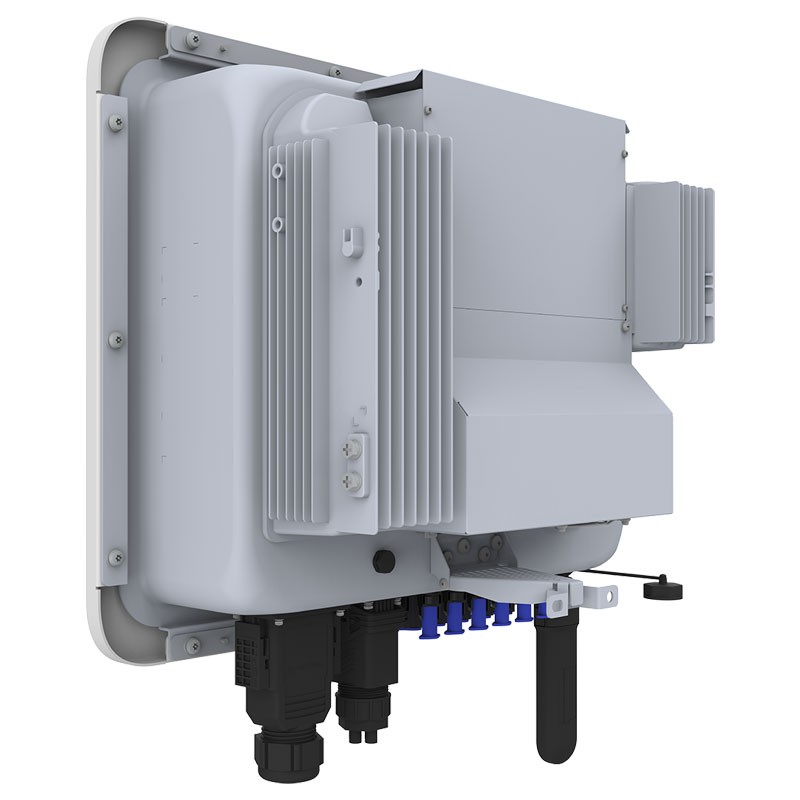

Huawei SUN2000 Three Phase Hybrid Photovoltaic Inverter 20K-MB0

Huawei
Huawei
70A SUN2000-20K-MB0

Three-phase Hybrid Inverter Huawei SUN2000-20K-MB0 - Maximum Efficiency for Industrial and Commercial Photovoltaic Systems:

  • Maximum efficiency: 98.4% (European efficiency 97.3%)

  • Rated output power: 20 kW

  • Maximum apparent power: 22 kVA

  • Rated output voltage: 220/380 V, 230/400 V, 240/415 V; 3W / N + PE

  • Maximum recommended PV power: 30 kWp

  • Number of string inputs: 4

  • Number of MPP trackers: 2, MPPT full-load voltage range 530-800 V

  • Battery compatibility: Huawei Smart ESS LUNA2000-5/10/15-S0

  • Communication: RS485, WLAN, support Smart Dongle 4G or WLAN-FE

  • Protection: IP66, lightning protection, arc flash protection

Do you have questions about this product or did you not find what you were looking for? Ask us!
Huawei SUN2000 Three Phase Hybrid Photovoltaic Inverter 20K-MB0
€2,980.49
€2,980.49

€2,980.49
Tax included
Calculate shipping cost
Items Available: 16
Further availability of the manufacturer
€2,980.49

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Huawei SUN2000/MB0 Three-phase Hybrid Inverter - For Industrial and Commercial Photovoltaic Systems

The Huawei SUN2000-20K-MB0 three-phase hybrid inverter is designed for commercial and industrial PV systems that require high efficiency and intelligent energy management. With a rated power output of 20 kW and a maximum power output of 22 kVA, this inverter can support large-scale storage systems and optimize self-consumption of the energy produced.

Thanks to its compatibility with Huawei LUNA2000 batteries from 5 to 15 kWh, the SUN2000-20K-MB0 allows energy to be stored for later use, making the system flexible and suitable for both direct consumption and feed-in.


High efficiency and performance

The inverter achieves a maximum efficiency of 98.4 percent, ensuring optimal performance of PV systems. The use of the new power optimizers enables up to 30% more energy at the individual module level.


Intelligent module monitoring

With the Module Level Monitoring feature, each PV module can be individually monitored, enabling precise control of system output and efficiency. Built-in connectivity via WLAN or 4G Smart Dongle enables fast and intuitive remote monitoring.


Active safety and advanced protections

The MB0 inverter features active arc protection, lightning protection on DC and AC sides, natural convection cooling and IP66 rating, ensuring safety and reliability even in extreme outdoor environments.


Suitable for large C&I systems

The SUN2000-20K-MB0 enables systems up to 30 kWp with multiple inputs (4 strings) and support for larger storage systems, reducing installation costs and complexity. The inverter is ideal for businesses and residential installations with high energy requirements.


Efficiency

Feature Value
Maximum efficiency 98.4%
European efficiency 98.1%


DC input

Feature Value
Maximum recommended PV power 30,000 Wp
Maximum input voltage 1,100 V
Maximum input current (MPPT) 30 A (two strings) / 20 A (single string)
Maximum short-circuit current 40 A
Start-up voltage 200 V
MPPT operating voltage range 200 ~ 1,000 V
Full-load voltage range 480 ~ 800 V
Rated input voltage 600 V
Maximum number of string inputs 4
Number of MPP trackers 2


ESS Smart String Input

Feature Value
ESS compatible LUNA2000-5/10/15-S0, LUNA2000-7/14/21-S1 (Q1 2024)
Number of battery inputs 2
Maximum charging power 21 kW (single) / 25 kW (double)
Maximum discharge power 22.0 kW
Maximum working current 26.25 A per string
Working voltage range 600 ~ 980 V


AC output

Feature Value
Rated output power 20,000 W
Maximum apparent power 22,000 VA
Peak active power (cosφ = 1) 22,000 W
Rated output voltage 220/380 V, 230/400 V, 240/415 V; 3W/N+PE
Rated output current 30.4 A 380Vac / 28.9 A 400Vac / 27.8 A 415Vac
Maximum output current 33.6 A 380Vac / 31.9 A 400Vac / 30.8 A 415Vac
Rated frequency 50 Hz / 60 Hz
Power factor 0.8 early ... 0.8 lagging
Total harmonic distortion < 3%


Features & Protections

Feature Value
Overvoltage Category PV II / AC III
DC input switch Yes
Islanding protection Yes
AC overcurrent protection Yes
DC reverse polarity protection Yes
DC Overvoltage (Type II) Yes
AC Overvoltage (Type II) Yes, EN/IEC 61643-11
Insulation Monitoring Yes
Residual Current Monitoring (RCMU) Yes
AFCI Yes
Integrated Anti-PID Yes


General Specifications

Feature Value
Operating Temperature -25 °C ~ +60 °C
Relative humidity 0% ~ 100% RH
Operating altitude Up to 4,000 m (derating > 2000 m)
Cooling Smart Air
Display LED, WLAN, FusionSolar App
Communication RS485, WLAN/Ethernet/4G via Dongle, EMMA
Weight 21 kg
Dimensions (W × H × D) 546 × 460 × 228 mm
Degree of protection IP66
Cascaded inverters (with ESS) Max 3


Compatible Optimizers

Feature Value
Compatible Models SUN2000-450W-P2, SUN2000-600W-P, MERC-1100W-P, MERC-1300W-P


Compliance and Certifications

Feature Value
Certifications EN/IEC 62109-1/2, IEC61727, IEC62116, IEC61683, EN50530, ABNT NBR, G99, IRR-DCC-MV, IEC 0-21:2020-12 V1, IEC-016, VDE4105, EN50549-1/-2, UTE15-712-1, UNE217002, RD244, PPDS, TOR Erzeuger, NRS 097-2-1

There are no reviews

Data sheet

Type:
Inverter
Power:
16 to 20KW
MPPT:
2
Connection:
Three-phase
