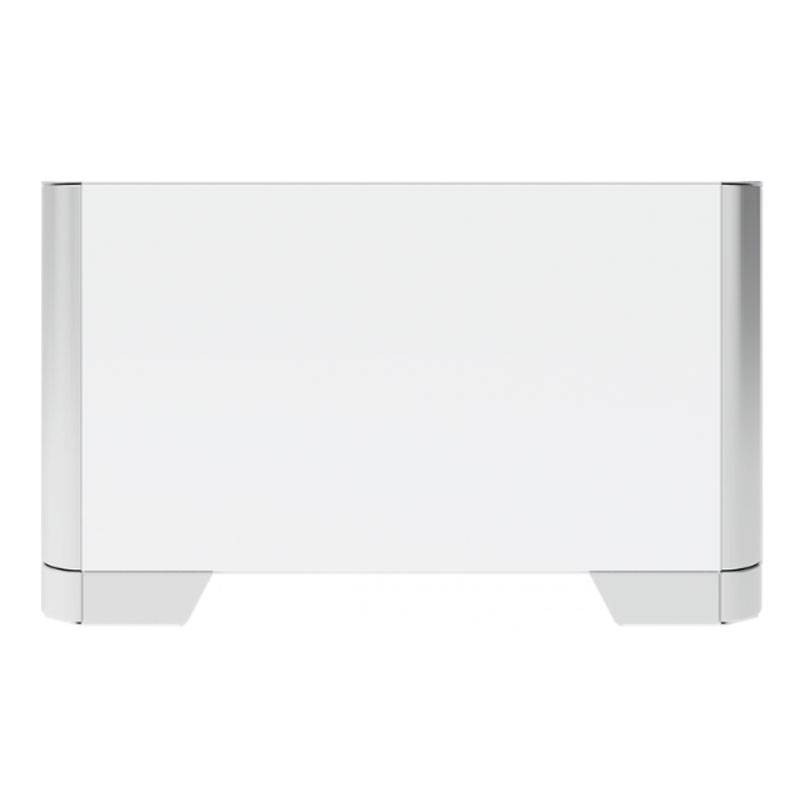

Huawei 5KWh Storage Battery Module LUNA2000-5-E0
70A LUNA2000-5KWH-E0
Huawei LUNA2000-5-E0 Battery Module - Residential Energy Storage 5 kWh for photovoltaic inverters:
-
Compatibility: Huawei SUN2000 single-phase and three-phase residential inverters.
-
Modular installation: up to 3 batteries plus the BMS power module
-
Energy capacity: 5 kWh
-
Rated output power: 2.5 kW
-
Peak power: 3.5 kW (10 s)
-
Technology: lithium iron phosphate (LFP) cell
-
Depth of discharge: 100%
€2,415.83
Items Available: 314
: 130
Frequently bought together
Huawei LUNA2000-5-E0 Battery Module for Residential Energy Storage
The Huawei LUNA2000-5-E0 Battery Module is designed for residential self-consumption systems, offering a modular and scalable solution for solar energy storage. Each module provides 5 kWh of energy storage, with a rated output power of 2.5 kW and peak capacity of up to 3.5 kW for 10 seconds, ideal for handling heavier electrical loads.
Intelligent modular system
The battery module can be combined with two other identical modules and the Huawei LUNA2000-5KW-C0 BMS Power Module, enabling the creation of storage systems of up to 15 kWh with intelligent energy management. Each module optimizes the energy level independently, ensuring maximum efficiency and durability.
Lithium Iron Phosphate (LFP) Technology.
The battery uses safe and reliable LFP cells with high cyclic life and chemical stability, ensuring long service life and optimal safety during operation.
Fast and smart integration
Commissioning is fast, with automatic detection via dedicated Huawei app, enabling monitoring and management of battery modules directly from your smartphone.
Universal compatibility with Huawei inverters
The module is compatible with a wide range of Huawei SUN2000 single-phase and three-phase residential inverters, including:
- SUN2000-2/3/3.68/4/4.6/5/6KTL-L1
- SUN2000-3/4/5/6/8/10KTL-M0 and M1
- SUN2000-3/4/5/6/8/10KTL-LB0
100% Depth of Discharge (DoD)
The module supports full discharge without compromising service life, providing maximum flexibility in the use of stored energy.
Technical Specifications Huawei Battery Module
| Feature | Value |
|---|---|
| Depth of Discharge (DoD) | 100% |
| Energy level optimization | On each individual module |
| Cell type | Lithium Iron Phosphate (LiFePO₄) |
| Integrated energy optimizer | Yes |
| Automatic App detection | Yes |
Electrical Parameters
| Feature | Value |
|---|---|
| Rated voltage (single phase) | 450 V |
| Operating voltage range (single-phase) | 350 - 560 V |
| Rated voltage (three-phase) | 600 V |
| Operating voltage range (three-phase) | 600 - 980 V |
Communication
| Feature | Value |
|---|---|
| Display | LED indicator and state of charge (SoC) |
| Interfaces | RS485 / CAN (parallel only) |
Mechanical Specifications
| Feature | Value |
|---|---|
| Dimensions (W × D × H) | 670 × 150 × 360 mm (26.4 × 5.9 × 14.0 in) |
| Weight | 50 kg (110.2 lb) |
| Installation | Floor-mounted (standard), wall-mounted (optional) |
Environmental Conditions
| Feature | Value |
|---|---|
| Operating temperature | -20 °C ~ +55 °C |
| Operating altitude | Max 4000 m (derating above 2000 m) |
| Installation Environment | Outdoor / Indoor |
| Relative humidity | 5% - 95% |
| Cooling | Natural convection |
| Noise level | < 29 dB |
| Protection rating | IP66 |
Other
| Feature | Value |
|---|---|
| Scalability | Up to 2 systems in parallel |
| Certifications | CE, RCM, CEC, VDE2510-50, IEC62619, IEC60730, UN38.3 |
Performance (1 Power Module + 1 Battery Module)
| Feature | Value |
|---|---|
| Usable battery energy | 5 kWh |
| Max output power | 2.5 kW |
| Peak power output | 3.5 kW (10 s) |
| Rated voltage (single-phase) | 450 V |
| Operating voltage range (single-phase) | 350 - 560 V |
| Rated voltage (three-phase) | 600 V |
| Operating voltage range (three-phase) | 600 - 980 V |
General Specifications
| Feature | Value |
|---|---|
| Dimensions (W × D × H) | 670 × 150 × 600 mm (26.4 × 5.9 × 23.6 in) |
| Weight (including vertical stand) | 63.8 kg (140.7 lb) |
Performance (1 Power Module + 2 Battery Modules)
| Feature | Value |
|---|---|
| Usable battery energy | 10 kWh |
| Max output power | 5.0 kW |
| Peak power output | 7 kW (10 s) |
| Rated voltage (single-phase) | 450 V |
| Operating voltage range (single-phase) | 350 - 560 V |
| Rated voltage (three-phase) | 600 V |
| Operating voltage range (three-phase) | 600 - 980 V |
General
| Feature | Value |
|---|---|
| Dimensions (W × D × H) | 670 × 150 × 960 mm (26.4 × 5.9 × 37.8 in) |
| Weight (including vertical stand) | 250.9 lb (113.8 kg) |
Performance (1 Power Module + 3 Battery Modules)
| Feature | Value |
|---|---|
| Usable battery energy | 15 kWh |
| Max output power | 5.0 kW |
| Peak power output | 7 kW (10 s) |
| Rated voltage (single-phase) | 450 V |
| Operating voltage range (single-phase) | 350 - 560 V |
| Rated voltage (three-phase) | 600 V |
| Operating voltage range (three-phase) | 600 - 980 V |
General
| Feature | Value |
|---|---|
| Dimensions (W × D × H) | 670 × 150 × 1320 mm (26.4 × 5.9 × 60.0 in) |
| Weight (including vertical stand) | 163.8 kg (361.1 lb) |
There are no reviews
Data sheet
- Type: Storage batteries
- Power: 1 to 5KW
