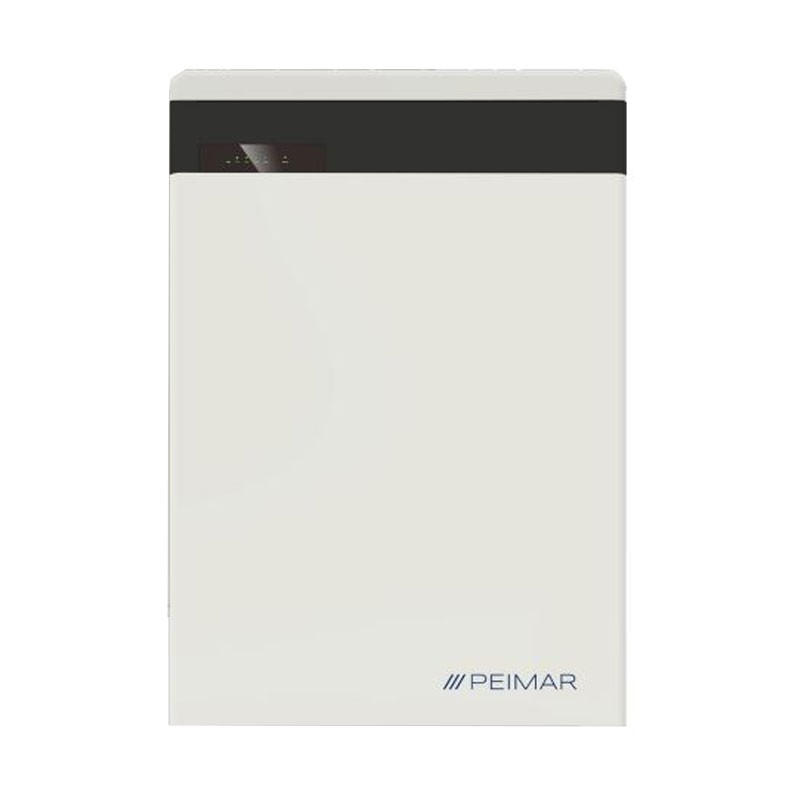

Peimar 5.8 kWh storage battery with BMS PSI-X-BT-H5.8MST-HV
492 PSI-X-BT-H5.8MST
Peimar storage battery 5.8 kWh MASTER battery module (with BMS):
- Battery type Lithium-ion (LiFePO4)
- Battery capacity 50 Ah
- Nominal battery energy 5.8 kWh
- Max. output power 4.0 kW.
Peimar 5.8 kWh storage battery with BMS PSI-X-BT-H5.8MST-HV
€3,786.89
€3,786.89
Tax included
Tax included
Pay in installments with Klarna
Items Available: 5
Features:
- Net weight 72.2 kg
- Dimensions (H x W x D) 474 x 708 x 193 mm
- Operating voltage 100 - 131 V
- Operating temperature range 0 - 55 °C
- Max. depth of discharge 90
- Number of cycles 6000
- Nominal voltage 115.2 V
- Max. charging current 35 A (25A recommended)
- Maximum discharge current 35 A (25A recommended)
- Degree of protection IP55
- Communication CAN, RS485
- Power cables (included) Pair of red/black cables, 2 meters, AWG10, connectors included
- Battery data cable (included) 2 metres
- Battery series cables Included with each PSI-X-BT-H5.8SLV-HV battery
- Configuration Refer to the Noctis X1 and X3 series inverter datasheets.
Compatible inverters:
- Peimar single-phase hybrid inverters PSI-X1P (HY) Noctis X1 series
- Peimar three-phase hybrid inverters PSI-X3P (HY) Noctis X3 series.
