Battery Module for Photovoltaic Riello Aros BATLIO 5120 NEW
RST 6WL2051100A
8032993010355

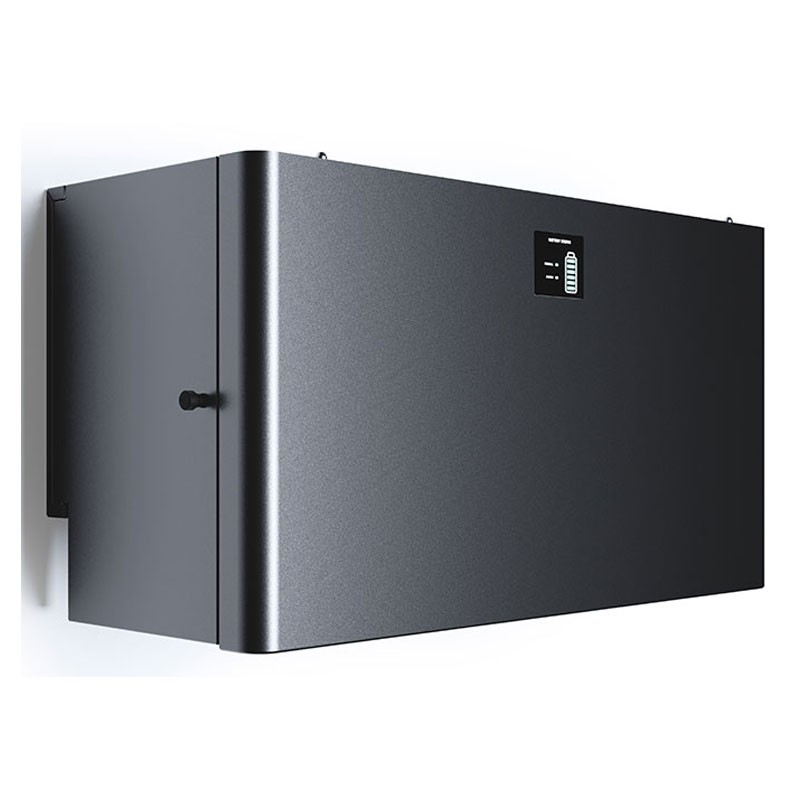

Riello Aros BATLIO 5120 New PV Battery Module, compatible with Rs New hybrid inverters (6ES23K6A - 6ES26K0A).
One or more battery modules (RS BATLIO 5120) can be stacked to expand the overall system capacity. Each battery has its own power control module. The system supports a maximum of six battery modules in parallel, only for 3 to 6 battery configurations is it essential to purchase RS-HYBRID Side Mount connection cables separately. NEW part number XES2RS01A.
€3,404.68
Items Available: 12
: 2
Frequently bought together
Lithium-Ion, Iron, Phosphate Batteries:
- Lithium-iron-phosphate ion batteries for the RS Hybrids' storage system are available in isolated low-voltage modules (51.2 Vdc) for enhanced residential safety and with a capacity of 100 Ah (5120 Wh)
- The system manages a scalability of up to six battery modules connected together in parallel, and the BMS (Battery Management System) is integrated into each individual battery module, this technological choice avoids the risk of a total lack of storage use in case of problems on a single battery module
- In addition, the BMS includes protection for overload, overcurrent, and overtemperature
- The batteries have a high discharge capacity and an operating temperature range of -20 °C to 55 °C.
- The entire system is safe and provides 100 percent protection for the end user by detecting possible tastes of the cell and/or other components.
Specifications:
- Battery type LFP (LiFePO4)
- Nominal battery voltage [V] 51.2
- Battery tens. range [V] 44.8 ÷ 58.4
- Battery module energy [kWh] 5.12
- Max charge/discharge current [A] 100 / 100
- Maximum parallel modules [Pz] 6
- Operating temperature range for charging [°C] 0 ÷ 45
- Operating temperature range for discharging [°C] -20 ÷ 55
- Number of cycles ≥4,000
- Dimensions (WxDxH) [mm] 610x252x330
- Weight (net) [kg] 54.5
- Overcurrent protection DC circuit breaker
- CAN communication protocol
- Certification IEC 62619:2017; EN 62619:2017; IEC 61000-6/2/4:2019; UN 38.3: Rev.7
System configuration with Hybrid Inverter 3600/6000W:
- 1 battery Total battery energy [kWh] 5.12 - Dimensions 610x1072x252mm

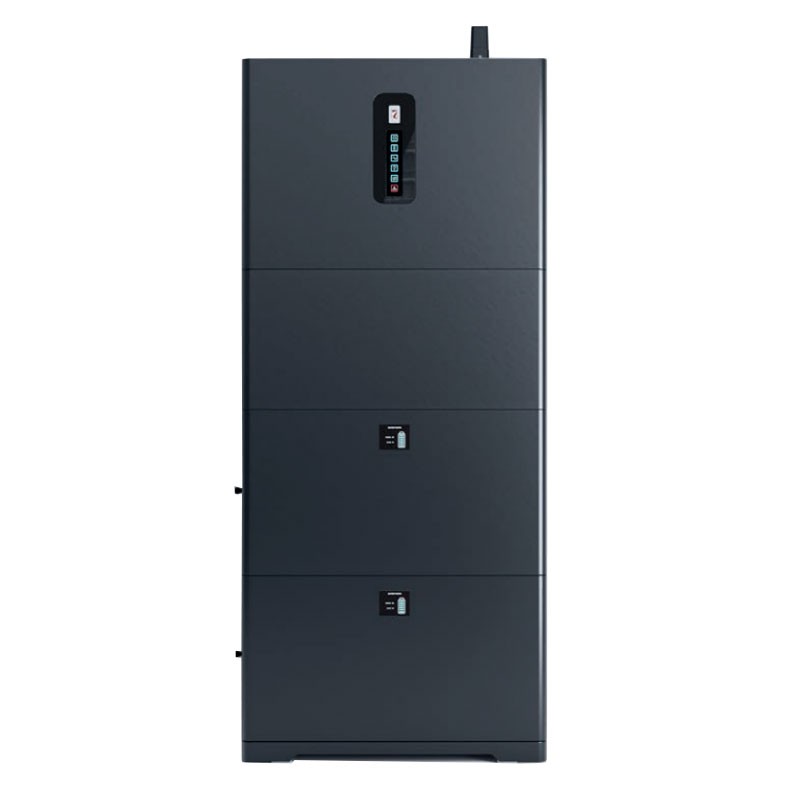

- 2 batteries Total battery energy [kWh] 10.24 - Dimensions 610x1402x252mm
- 3 batteries Total battery energy [kWh] 15.36 - Dimensions 610x1402x252mm/610x372x252
- 4 batteries Total battery energy [kWh] 20.48 - Dimensions 610x1402x252mm/610x702x252
- 5 batteries Total battery energy [kWh] 25.60 - Dimensions 610x1402x252mm/610x1032x252

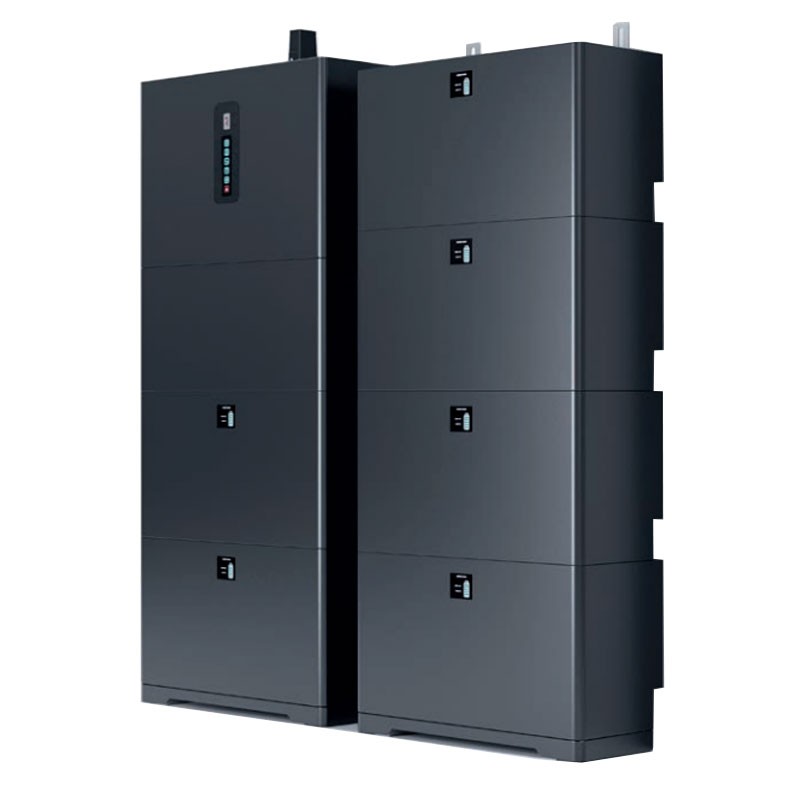

- 6 batteries Total battery energy [kWh] 30.72 - Dimensions 610x1402x252mm/610x1362x252
There are no reviews
Data sheet
- Type: Storage batteries
