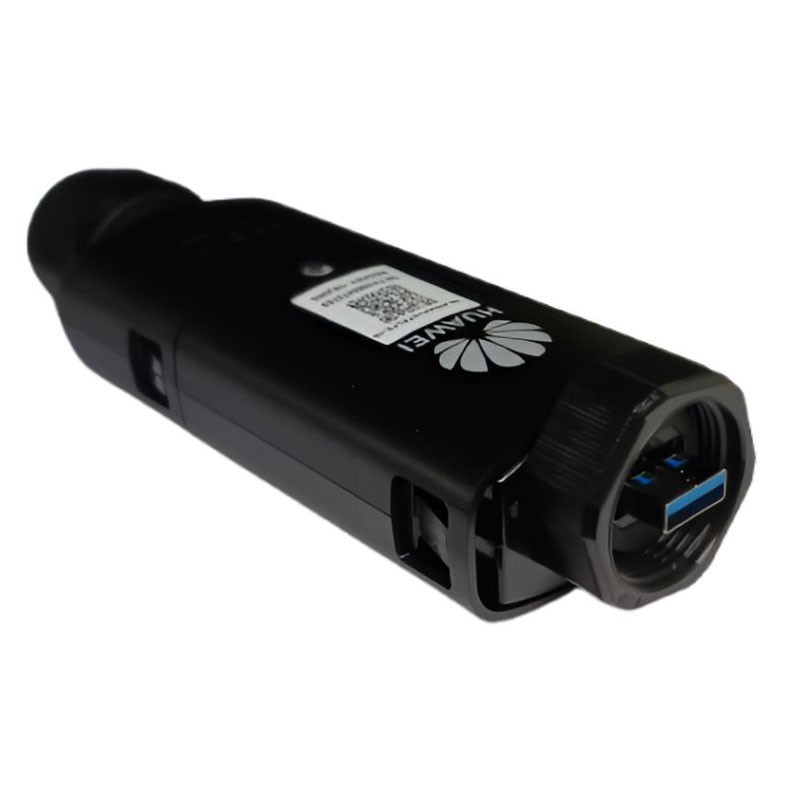

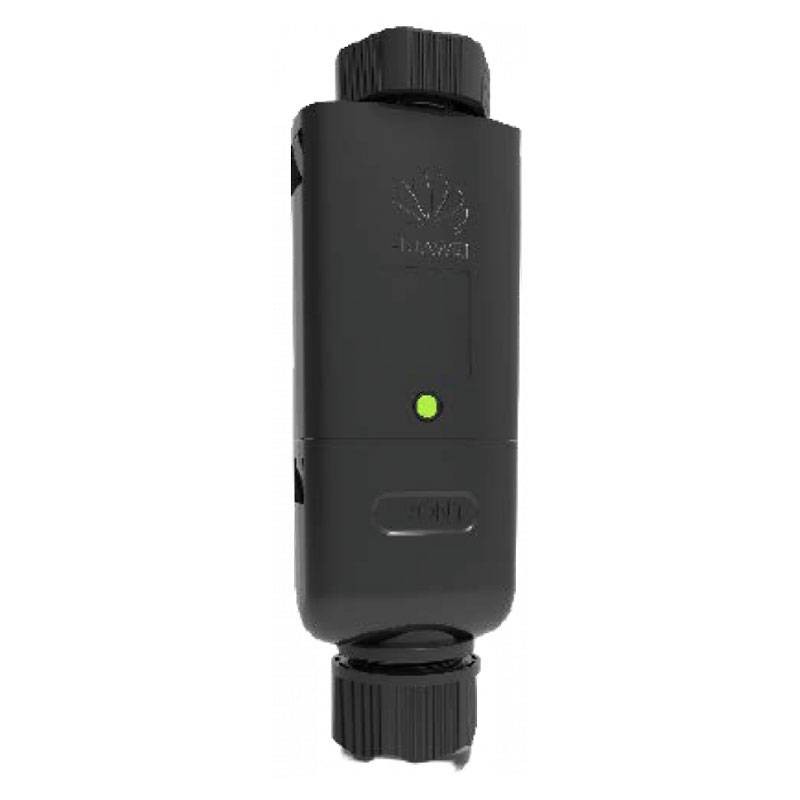

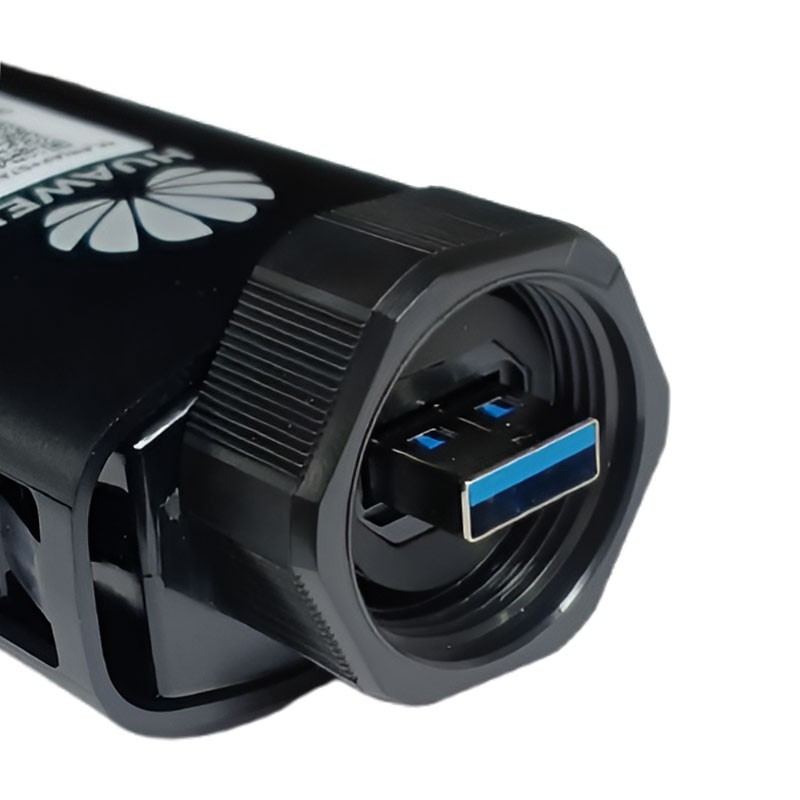

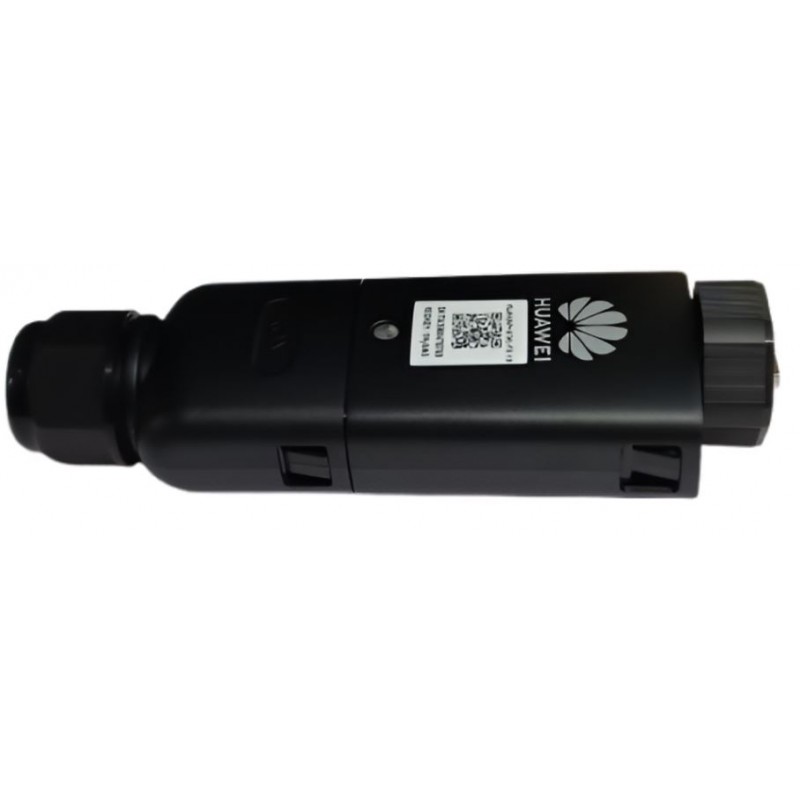

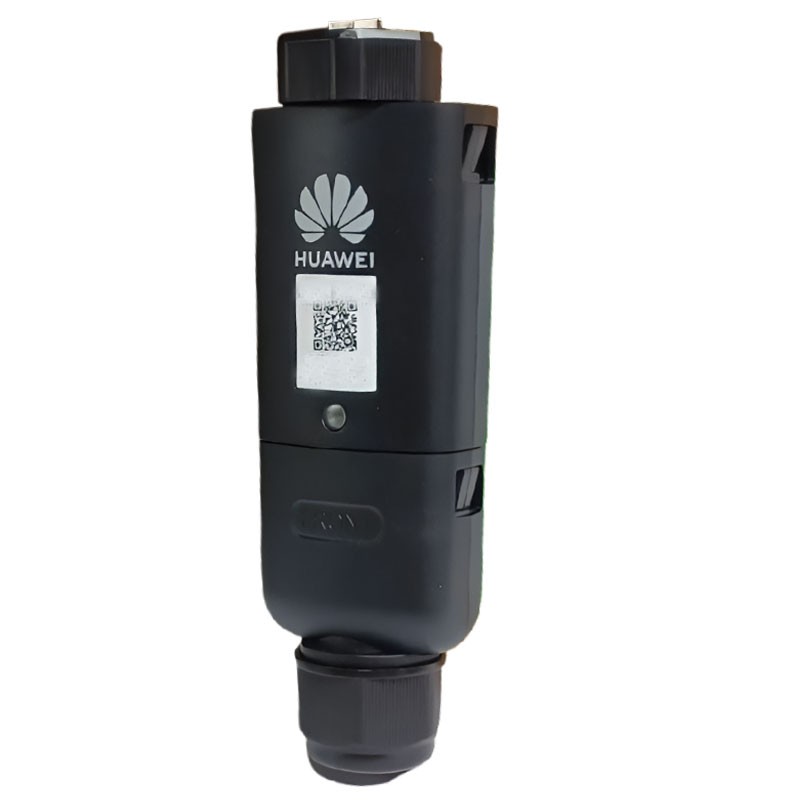

Huawei Smart Dongle-WLAN-FE WLAN and Fast Ethernet
70A SMARTDONGLEA-05
Huawei Smart Dongle-WLAN-FE WLAN and Fast Ethernet:
- Smart Connection: Supports WLAN and Fast Ethernet (FE) communication
- Inverter Compatibility: Broad compatibility with Huawei SUN2000 models
- Plug & Play: Easy to install, supports up to 10 devices
- Reliability: IP65 degree of protection, with automatic reconnection
- 3rd-party monitoring: Supports 3rd-party monitoring systems
- Monitoring support: 3rd-party systems
€64.66
Items Available: 85
: 68
Frequently bought together
Huawei Smart Dongle-WLAN-FE for Huawei SUN2000 Inverters
The Huawei Smart Dongle-WLAN-FE is the ideal solution to complement the connectivity of your Huawei SUN2000 inverters, ensuring connection via both WLAN and Fast Ethernet (FE). This device allows you to monitor and manage your PV system remotely, ensuring complete control and optimization of energy flows directly through compatible third-party apps or software.
Extended compatibility
The dongle is compatible with a wide range of Huawei inverters, from single-phase residential models to large three-phase commercial solutions, including:
- SUN2000-3/3.68/4/4.6/5/6K-LB0
- SUN2000-2/3/3.68/4/4.6/5/6-L1
- SUN2000-3/4/5/6/8/10-M1
- SUN2000-12/15/17/20KTL-M2
- SUN2000-12/15/17/20/25KTL-M5
- SUN2000-30/36/40/50KTL-M3
- SUN2000-100/115KTL-M2
Easy and immediate installation
With Plug & Play technology, the dongle is quickly configured without the need for complex settings. Supports up to 10 simultaneously connected devices, allowing multiple inverters to be managed efficiently.
Guaranteed reliability
IP65-rated, the stick resists dust and water jets, making it ideal for installations outdoors or exposed to changing weather conditions. It also features automatic reconnection, ensuring continuity in data transmission even in the event of temporary disconnections.
Support for third-party monitoring
Enables integration with external monitoring systems, providing flexibility and advanced energy data management capabilities to optimize solar production.
General Data
| Feature | Value |
|---|---|
| Max quantity of devices supported | 10 |
| Max quantity of inverters supported | 10 |
| Connection interface | USB |
| Ethernet interface | 10/100M Ethernet |
| Installation | Plug-and-play |
| LED Indicator | Present |
| Dimensions (W × H × D) | 146 × 48 × 33 mm |
| Weight | 90 g |
| Degree of protection | IP65 |
| Power consumption (typical) | 2,5 W |
| Modes of operation | AP + STA |
| Encryption algorithm | WPA/WPA2 - TKIP/CCMP/AES |
Wireless Parameters
| Feature | Value |
|---|---|
| Supported standards | 802.11 b/g/n |
| Operating frequency | 2.412 GHz to 2.484 GHz |
Environmental Parameters
| Feature | Value |
|---|---|
| Operating Temperature | -30 °C ~ +65 °C |
| Operating relative humidity | 5% - 95% RH |
| Storage Temperature | -40 °C ~ +70 °C |
| Maximum operating altitude | 4.000 m |
prodotto di ottimo livello, indispensabile per un monitoraggio in tempo reale dell'ecosistema composto da inverte, batterie, consumi di rete. huawei un passo avanti alla concorrenza
Data sheet
- Type: Datalogger wireless
