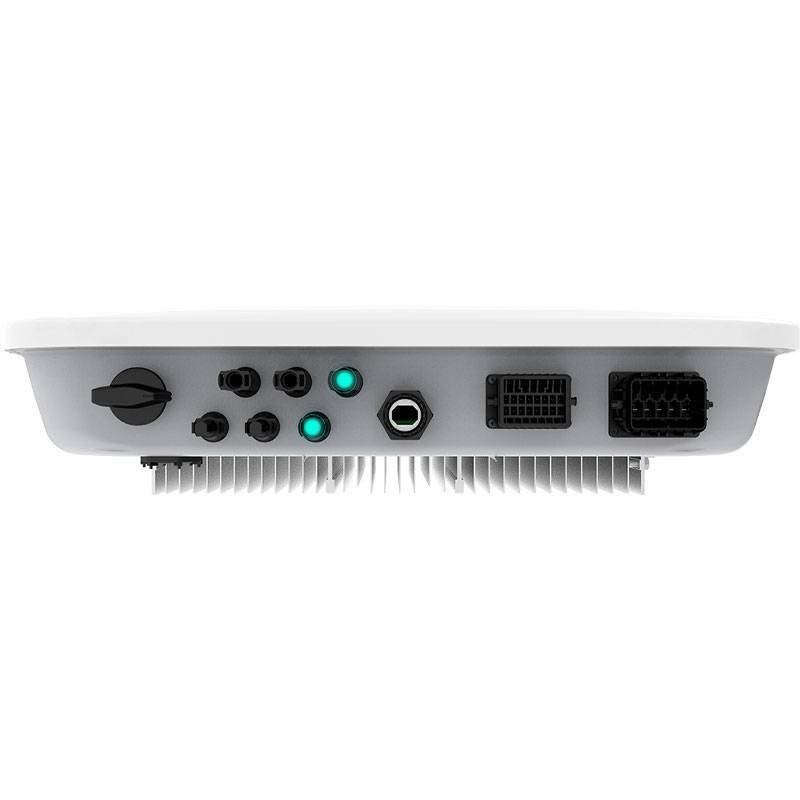

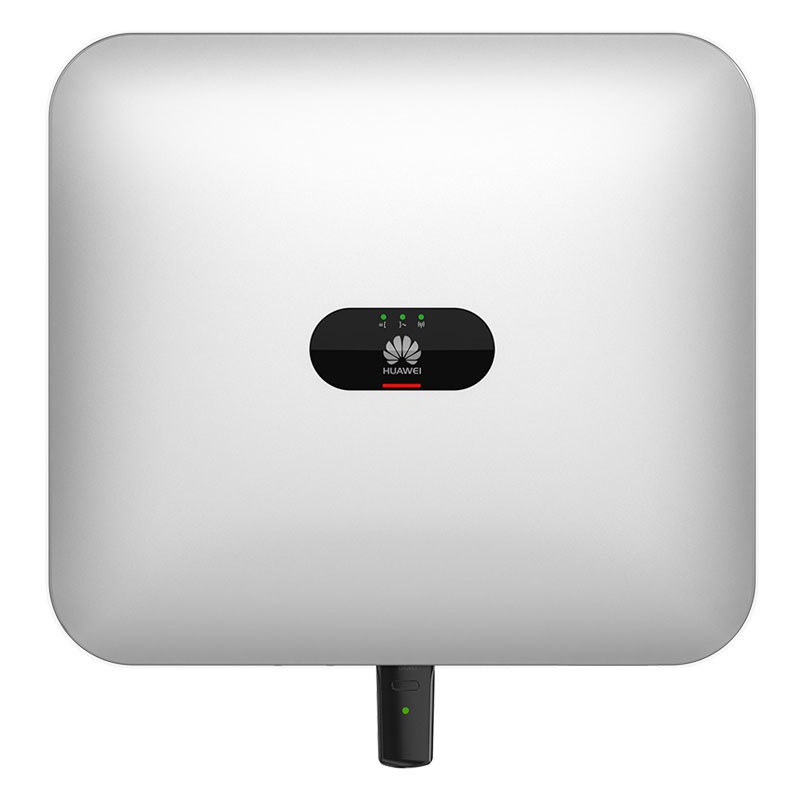

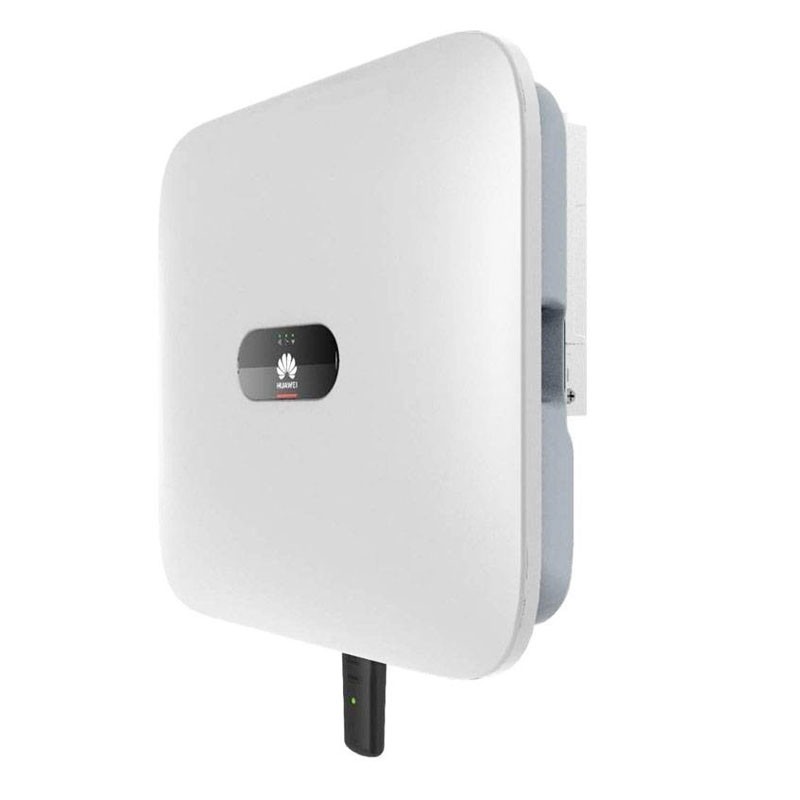

Huawei SUN2000 Three Phase Hybrid Photovoltaic Inverter 10KTL-M1

Huawei
Huawei
70A SUN2000-10KTL-M1

Three-phase Hybrid Inverter Huawei SUN2000-10KTL-M1 is the ideal solution for those who want to maximize the self-consumption of energy from their residential or commercial PV system. Thanks to Huawei's advanced technology, this inverter combines high efficiency, compactness and ease of installation, offering complete management of the energy produced.

  • Maximum efficiency: 98.6 percent

  • Rated output power: 10 kW

  • Maximum apparent power: 11 kVA

  • Rated output voltage: 400 V AC, 3W / N+PE

  • Battery compatibility: Huawei LUNA2000 from 5 kWh to 30 kWh

  • Communication: RS485, WLAN/Ethernet via Smart Dongle-WLAN-FE

  • Dimensions and weight: 525 x 470 x 146.5 mm - 17 kg

  • Active safety: DC/AC arc protection

Do you have questions about this product or did you not find what you were looking for? Ask us!
Huawei SUN2000 Three Phase Hybrid Photovoltaic Inverter 10KTL-M1
€1,310.93
€1,310.93

€1,310.93
Tax included
Calculate shipping cost
Items Available: 25
Further availability of the manufacturer
€1,310.93

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Huawei SUN2000 Three-phase Hybrid Inverter - Advanced Solution for Photovoltaic Installations

With its rated power of 10 kW and apparent power of 11 kVA, the inverter supports three-phase systems up to large loads, ensuring stable and reliable performance. The output voltage of 400 V AC with 3W / N+PE connection ensures optimal power distribution in the building.


ESS Smart Battery Integration

With compatibility with Huawei LUNA2000 batteries ranging from 5 kWh to 30 kWh, the inverter is ready to store the energy produced by PV, enabling optimal energy use even during the night or at times of peak consumption. Intelligent management allows multiple inverters to be connected in series to further expand storage capacity.


Advanced safety and protections

The inverter integrates DC and AC protections, as well as AI-based active arc protection, which immediately detects faults and reduces fire hazards. This ensures safety and reliability for the entire home or commercial building.


Superior yield and optimization

With the use of optimizers, the inverter can generate up to 30 percent more energy, maximizing system efficiency. Automatic module mapping in as little as 5 seconds and a one-fits-all function simplify installation and monitoring.


Smart monitoring with FusionSolar app

Through Huawei's dedicated FusionSolar app, you can monitor system production, battery charge status and energy consumption management in real time, making your home or business more efficient and sustainable


Efficiency

Feature Value
Maximum Efficiency 98.6%
European weighted efficiency 98.1%


Input (PV)

Feature Value
Maximum recommended PV power 15,000 Wp
Max input voltage 1,100 V
Operating voltage range 140 V ~ 980 V
Start-up voltage 200 V
Rated input voltage 600 V
Max input current per MPPT 13.5 A
Max short circuit current 19.5 A
MPPT number 2
Inputs per MPPT (max) 1


Input (DC Battery)

Feature Value
Compatible battery Huawei Smart ESS LUNA2000 5-30 kWh
Operating voltage range 600 ~ 980 V
Maximum operating current 16 A
Maximum charging power 10,000 W
Maximum discharge power 10,000 W


Output (Mains)

Feature Value
Grid connection Three-phase
Rated output power 10,000 W
Maximum apparent power 11,000 VA
Rated output voltage 220/380 V, 230/400 V, 3W / N+PE
Rated frequency 50 Hz / 60 Hz
Maximum output current 16.9 A
Adjustable power factor 0.8 capacitive ... 0.8 inductive
THD (harmonic distortion) ≤ 3%


Output (Backup via Backup Box-B1)

Characteristic Value
Maximum apparent power 3,300 VA
Rated output voltage 220 V / 230 V
Maximum output current 15 A
Power factor 0.8 capacitive ... 0.8 inductive


Features and Protections

Feature Value
Input trip device Yes
Anti-islanding protection Yes
DC reverse polarity protection Yes
Insulation monitoring Yes
DC Overvoltage (Type II) Yes, EN/IEC 61643-11
AC Overvoltage (Type II) Yes, EN/IEC 61643-11
Residual current monitoring Yes
AC overcurrent protection Yes
AC short circuit protection Yes
Electric arc protection Yes
Receiver ripple control Yes
PID Recovery Built-in
Battery charging from mains Yes


General Data

Feature Value
Operating Temperature -25 ~ +60 °C
Operating humidity 0% ~ 100% RH
Operating altitude 0-4000 m (derating >2000 m)
Cooling Natural convection
Display LED + FusionSolar App
Communication RS485, WLAN, Ethernet, 4G (optional)
Weight (with bracket) 17 kg
Dimensions (with bracket) 525 × 470 × 146.5 mm
Protection IP65
Nighttime power consumption < 5.5 W


Compliance and Certifications

Feature Value
Certifications EN/IEC 62109-1, EN/IEC 62109-2, IEC 62116
Network Connection Standards G98, G99, EN 50438, CEI 0-21, VDE-AR-N-4105, AS 4777, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, NRS, IEC61727

There are no reviews

Data sheet

Type:
Inverter
Power:
6 to 10KW
MPPT:
2
Connection:
Three-phase
