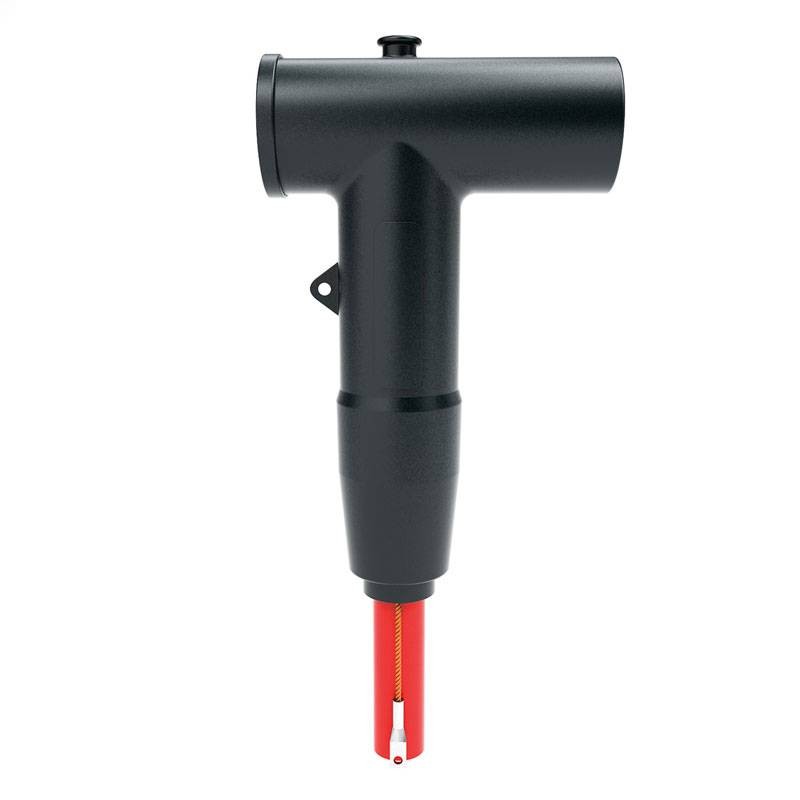

Etelec disconnectable T-terminal for 150-185 sq. mm cables Type C TS273247
ETL TS273247
8053323904229
Etelec Reliable disconnectable T-terminal designed for single-core cables with aluminum wire or tube shield. It provides safety and versatility for indoor and outdoor applications, with the following features:
-
Rated voltage: Up to 24 kV, maximum rating 630 A
-
Compatibility: For cables with copper or aluminum conductor (150-185 sq. mm)
-
Standard interface: Type C, conforming to Enel table GSCC006/7 rev. 03
-
Versatile installation: Suitable for indoor and outdoor applications
-
High-performance materials: EPDM body with mechanically clamped lug
-
Complete kit: Includes terminal, lug, accessories and instructions
€315.13
Out of stock
Incoming
24 kV disconnectable terminal, asymmetrical design and copper/aluminum compatibility
Reliability and safety for unipolar cables up to 24 kV
Etelec's disconnectable terminal is designed for safe and high-performance connections on medium-voltage unipolar cables. With its Type C interface, it ensures compatibility with standardized systems, offering simple and reliable installation.
Durable materials and asymmetrical design
Made of high-quality EPDM, the terminal ensures excellent electrical and mechanical resistance. The asymmetrical T-shaped design optimizes voltage distribution, reducing the risk of partial discharge and extending the life of the installation.
Compatible with copper and aluminum conductors
The terminal supports single-core cables with copper or aluminum conductors, with cross-sections from 150 to 185 sq. mm and aluminum wire or tube shielding. Compatibility with different types of shielding expands its range of application.
Etelec T-terminal with mechanical lug for indoor and outdoor use
Mechanical lug for secure clamping
The kit includes a tin-plated aluminum mechanical clamping lug, which allows quick and secure connection without the need for specific cable glands. This facilitates installation, reducing operating time and costs.
Versatility for indoor and outdoor applications
Designed to operate in a temperature range of -20 to +90 degrees, the terminal is self-extinguishing and provides maximum safety in any environmental condition, both indoors and outdoors.
Technical Specifications Disconnectable terminal
Receptacle Information
| Feature | Value |
|---|---|
| Socket type | External cone |
| Interface | C type |
| Scope | 630 A |
| Execution | Cold |
| Application | Indoor, outdoor |
Cable Information
| Feature | Value |
|---|---|
| Insulation degree | 12/20 kV |
| Copper conductor | Yes |
| Aluminum conductor | Yes |
| Number of conductors | 1 |
| Cable section | 150-185 sq. mm |
| Primary Insulator Diameter | 22.3-28 mm |
| Wire Shielding | Yes |
| Aluminum Tube Shielding | Yes |
Lug Information
| Feature | Value |
|---|---|
| Lug type included | Mechanical tightening |
| Connector material | Tin-plated aluminum |
| Number of poles | 1 |
| Clamping type | Mechanical screw |
| Copper conductor | Yes |
| Aluminum conductor | Yes |
Terminal Information
| Feature | Value |
|---|---|
| Type | Asymmetrical |
| Material | EPDM |
| Design Voltage | 12/20 (24) kV |
| Color | Black |
| Operating temperature | -20/+90 degrees |
| Self-extinguishing | Yes |
Dimensional Information
| Feature | Value |
|---|---|
| Length | 260 mm |
| Width | 85 mm |
| Depth | 196 mm |
There are no reviews
Data sheet
- Type: Terminals
- Cross-Section: 150-185 mmq
