3M medium voltage 3 phase kit up to 36 kV Umax 7000092172
3MI 7000092172
8021684150050
The 3M QT-II 94-EB 63-1 terminal is a self-shrinking kit for single-core MV cables up to 36 kV. It offers quick, safe cold installation and complies with CENELEC standards for indoor applications.
-
For MV unipolar cables up to 36 kV (Umax).
-
Kit for 3 phases, indoor application
-
Cold installation, without flame or heat
-
One-piece insulator made of self-shrinking silicone rubber
-
Integrated electric field control
-
Wide dinstallation temperature range: -20°C / +50°C
-
Complies with CENELEC standard HD 629.1
€217.17
Items Available: 2
: 1
Self-shrinking Medium Voltage kit for applications up to 36 kV Umax
Professional solution for MV cable termination

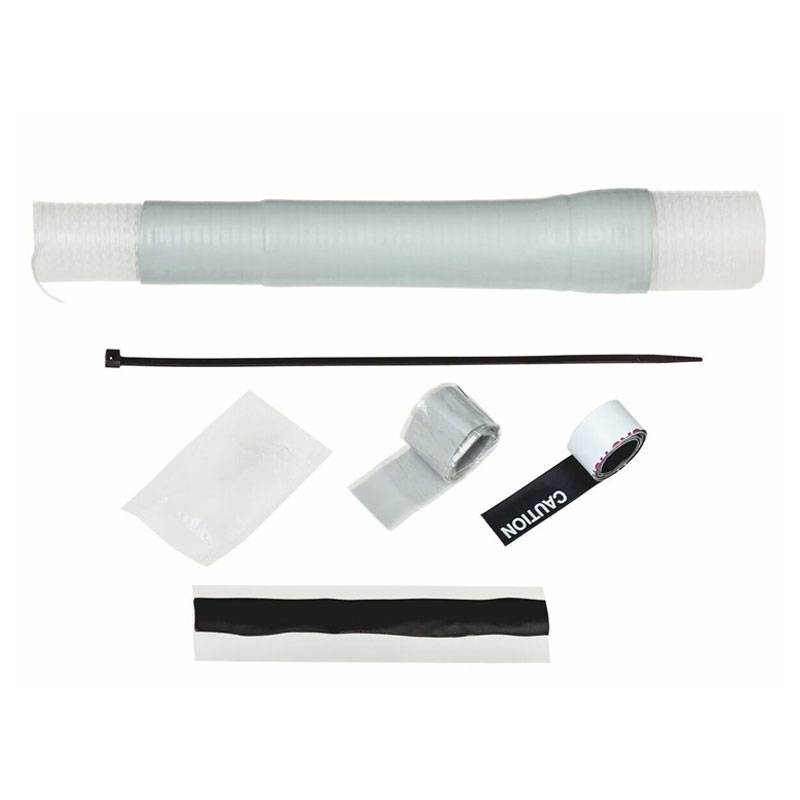

The 3M QT-II 94-EB 63-1 is a self-shrinking terminal designed for safe and reliable termination of single-core Medium Voltage (MV) cables up to 36 kV. The kit includes all the components needed to complete three phase terminations indoors, offering an ideal solution for transformer substations, industrial plants and electrical distribution networks.
Cold Shrink technology: zero flames, maximum safety
3M's patented Cold Shrink technology enables installation without the use of flame or heating tools, increasing work safety, especially in hazardous environments. Silicone rubber insulators are supplied pre-stretched on a coiled backing, which is simply removed during installation to allow the terminal to fit snugly over the cable.
One-piece insulator with electric field control
The terminal is made with a one-piece, non-tracking insulator integrated with an electric field control system, which eliminates the need for additional accessories to manage voltages at the edges of the terminal. This compact, engineered design ensures high electrical and mechanical strength, reducing the risk of partial discharge and extending the life of the system.
Maximum adaptability and regulatory compliance
Due to the elastic properties of silicone rubber, the 3M QT-II 94-EB 63-1 covers a wide range of cable cross sections, simplifying logistics and inventory management. The device meets and exceeds the requirements of European CENELEC standard HD 629.1, ensuring quality, safety and reliability.
Technical specifications of the Medium Voltage kit
| Feature | Description |
|---|---|
| Application Voltage | Medium Voltage |
| Applications | Cable termination |
| Multipole preformed cap | No |
| Fin/rod connector included in the kit | No |
| Insulation outer diameter | 21.336 mm, 21.59 mm, 21.844 mm, 22.098 mm, 22.352 mm, 22.606 mm, 22.86 mm, 23.114 mm, 23.368 mm, 23.622 mm, 23.876 mm, 24.13 mm, 24.384 mm, 24.638 mm, 24.892 mm, 25.146 mm, 25.4 mm, 25.654 mm, 25.908 mm, 26.162 mm, 26.416 mm, 26.67 mm, 26.924 mm, 27.178 mm, 27.432 mm, 27.686 mm, 27.94 mm, 28.194 mm, 28.448 mm, 28.702 mm, 28.956 mm, 29.21 mm, 29.464 mm, 29.718 mm, 29.972 mm, 30.226 mm, 30.48 mm, 30.734 mm, 30,988 mm, 31,242 mm, 31,496 mm, 31,75 mm, 32,004 mm, 32,258 mm, 32,512 mm, 32,766 mm, 33,02 mm, 33,274 mm, 33,528 mm, 33,782 mm |
| Insulation diameter range (cable) | 21.3 mm - 35 mm |
| Minimum conductor size | 50 mm² |
| Maximum conductor size | 150 mm² |
| Internal/External | Internal (18/30 kV) / External (12/20 kV) |
| Brands | 3M™ |
| Number of shirts | 6 |
| Number of conductors | 1 |
| Voltage line | 12/20 kV |
| Cable shielding | Cable shielding |
| Voltage | 12/20 kV, 18/30 kV |
| Rated voltage | 18/30 kV |
| Type of cable | Unarmored cable, with copper shielding, polymer insulation |
| Product type | Cold shrinkage |
There are no reviews
Data sheet
- Type: Terminals
