The 3M QT-II 93-EB 63-1 terminal for Medium Voltage up to 24 kV offers simple, safe cold installation that complies with CENELEC standard HD 629.1. Ideal for single-pole MV cables indoors
-

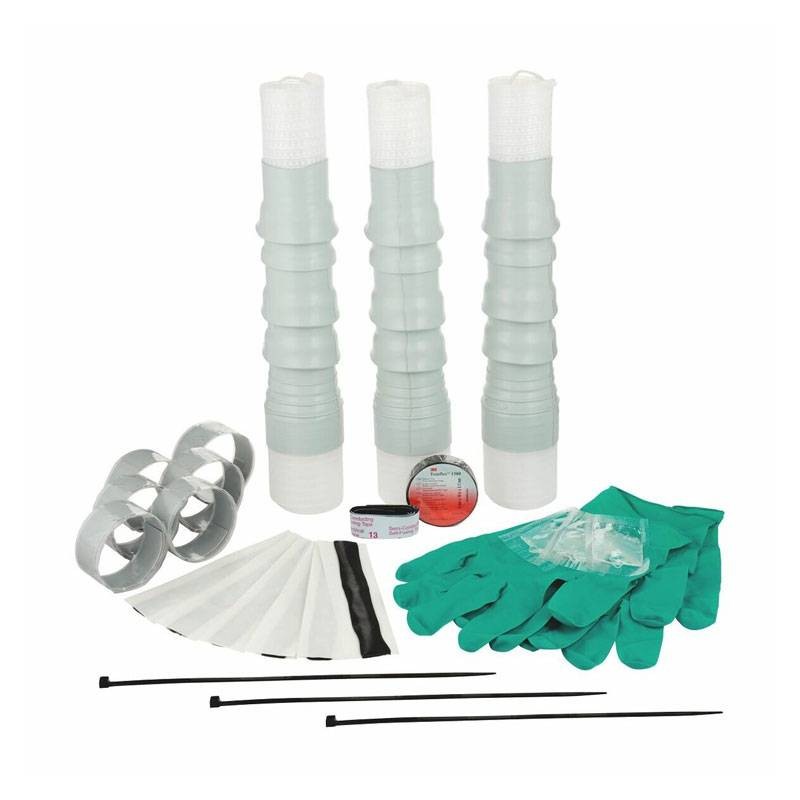

Kit for 3 single-pole phases up to 24 kV (Umax)
-
Cold application, without heat or flame
-
Insulating body made of self-shrinking silicone rubber
-
One-piece insulator with integrated electric field control
-
Compatible with single-pole polymeric MV cables
-
Wide installation temperature range: -20°C / +50°C
€147.69
Items Available: 2
: 1

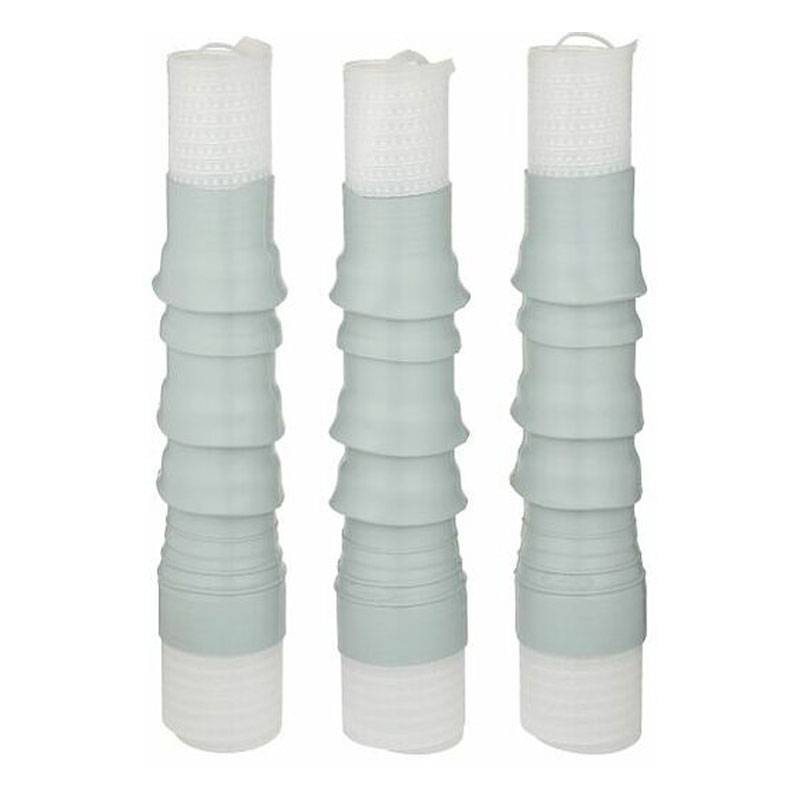

QT-II 93-EB 63-1 terminal Self-shrinking Medium Voltage kit for applications up to 24 kV
Safe and fast solution for MV terminations
The 3M QT-II 93-EB 63-1 terminal is a professional component designed to terminate single-pole Medium Voltage (MV) cables up to 24 kV indoors. The kit includes all the elements needed to carry out the termination of three single-pole phases, making it perfect for quick and safe installations in industrial plants, transformer substations and electrical distribution networks.
Cold-shrink technology: simplified installation
Thanks to 3M's exclusive Cold Shrink technology, the terminal comes pre-stretched on a spiral support and can be installed without heat or flame, increasing safety and reducing work time. This system is ideal for sensitive environments where the use of open flame is prohibited or discouraged. Simply slip off the coil and the self-shrinking silicone rubber body automatically adapts to the cable, ensuring a reliable and durable seal.
Advanced insulator and integrated field control
The insulator body is made of high-performance silicone rubber, providing mechanical strength, thermal stability and durability. The one-piece structure includes an integrated electric field control system, eliminating the need to install additional components for electrical stress management. This solution ensures an even distribution of the electric field along the termination, preventing partial discharges and prolonging the life of the cable.
Compatibility and regulatory compliance
The terminal is designed for MV polymer cable applications and can cover a wide range of conductor cross-sections due to the flexibility of the insulating material. The installation temperature range of -20°C to +50°C allows use in a variety of environmental conditions. In addition, the terminal exceeds the requirements of CENELEC standard HD 629.1, a guarantee of quality and compliance with European standards.
Technical specifications of the 3M Medium Voltage Kit
| Feature | Description |
|---|---|
| Voltage Application | Medium Voltage |
| Applications | Cable termination |
| Multipole preformed cap | No |
| Fin/rod connector included in the kit | No |
| Insulation outer diameter (metric measurements) | 21.336 mm, 21.59 mm, 21.844 mm, 22.098 mm, 22.352 mm, 22.606 mm, 22.86 mm, 23.114 mm, 23.368 mm, 23.622 mm, 23.876 mm, 24.13 mm, 24.384 mm, 24.638 mm, 24.892 mm, 25.146 mm, 25.4 mm, 25.654 mm, 25.908 mm, 26.162 mm, 26.416 mm, 26.67 mm, 26.924 mm, 27.178 mm, 27.432 mm, 27.686 mm, 27.94 mm, 28.194 mm, 28.448 mm, 28.702 mm, 28.956 mm, 29.21 mm, 29.464 mm, 29.718 mm, 29.972 mm, 30.226 mm, 30.48 mm, 30.734 mm, 30,988 mm, 31,242 mm, 31,496 mm, 31,75 mm, 32,004 mm, 32,258 mm, 32,512 mm, 32,766 mm, 33,02 mm, 33,274 mm, 33,528 mm, 33,782 mm |
| Maximum conductor size | 240 mm² |
| Minimum conductor size | 70 mm² |
| Internal/External | Internal (12/20 kV) / External (6/10 kV) |
| Cable insulation outer diameter range (metric measurements) | 21.3 mm - 35 mm |
| Brands | 3M™ |
| Number of jackets | 4 |
| Number of conductors | 1 |
| Voltage line | 12/20 kV |
| Cable shielding | Cable shielding |
| Voltage | 6/10 kV, 12/20 kV |
| Rated voltage | 12/20 kV |
| Cable type | Unarmored cable, with copper shielding, polymer insulation |
| Product type | Cold shrinkage |
