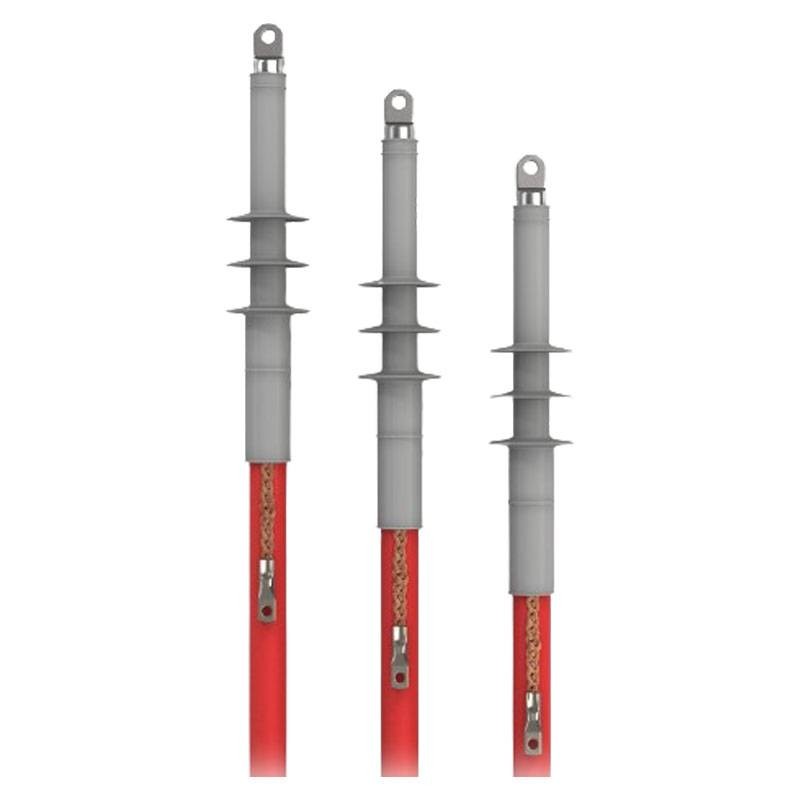

Etelec Heat-shrink end caps for cables 25-95 sq. mm 3pcs TB240701
ETL TB240701
8033712906270
Etelec Heat-shrink end caps for indoor applications for single-core extruded-insulation cables up to 24 kV with copper wire or strip shield with the following characteristics:
- Design: Self-shrinking
- Maximum insulation voltage: 24 kV
- Number of conductors: 1
- Min-max conductor section: 25-95 sq mm
- Insulation degree: 12-20 kV
- Length: 305 mm
- Colour: Grey
Kit Contents: Single silicone rubber body with electric field control and anti-tracking function, insulating filler tapes, liquid silicone lubricant, installation instructions.
Pack of 3 pieces.
€80.83
Items Available: 15
Kit of three heat-shrink end caps for indoor applications for single-core extruded-insulation cables up to 24 kV with wire or copper tape shield.
Features:
- Family: Medium Voltage
- Primary Insulator Diameter: 14-25 mm
- Leakage line length: 410 mm
- Outer Sheath Material: Silicone
- Operating Temperature: -20/+90 degrees
- Unipolar cable
- Elicord cable
- Copper conductor
- Aluminum Conductor
- Copper wire shielding
- Copper Tape Shielding
There are no reviews
Data sheet
- Type: Terminals
