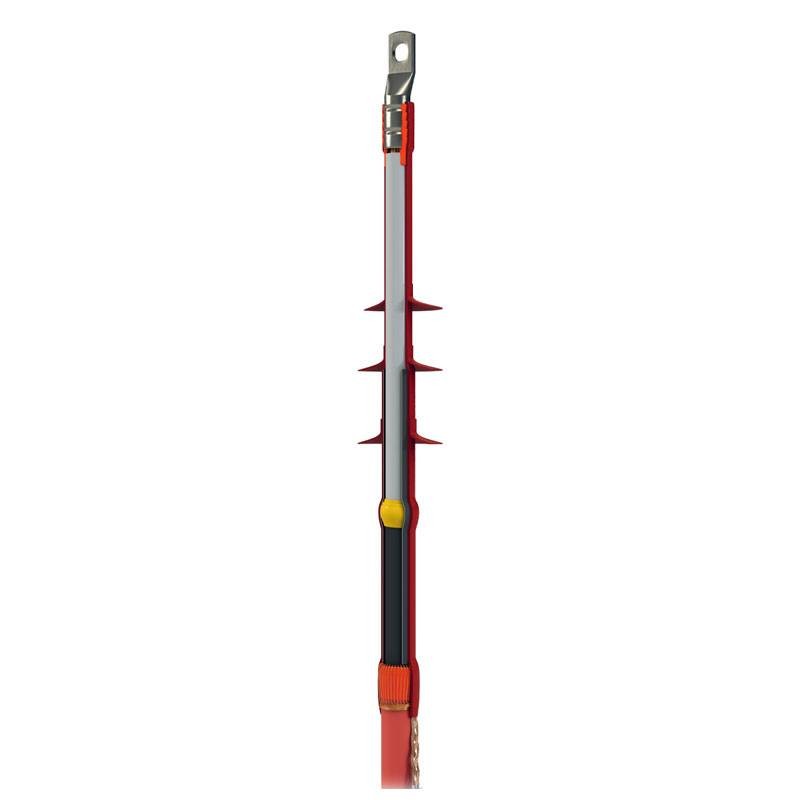

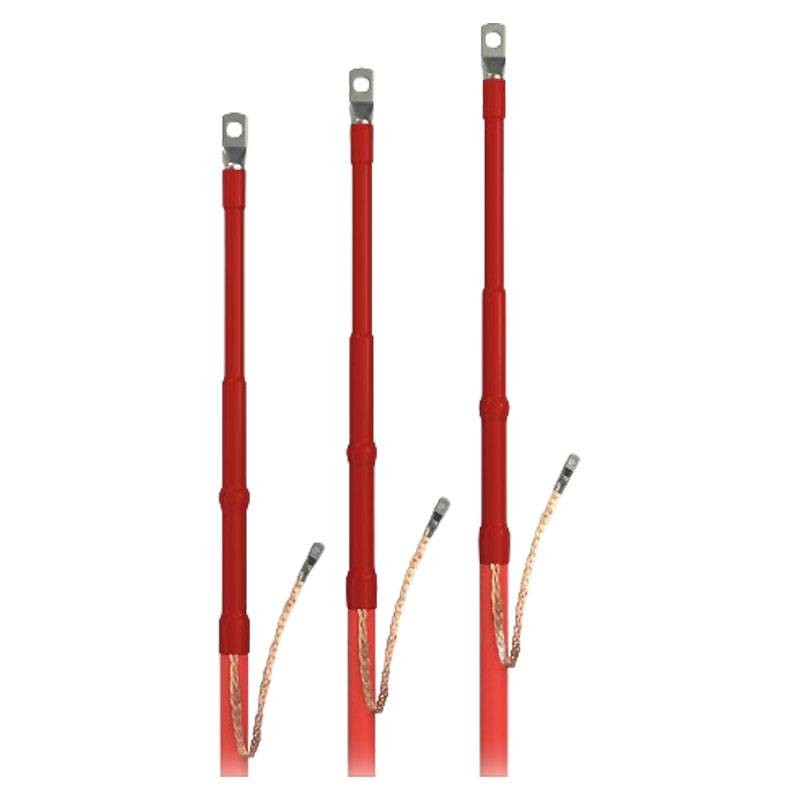

Etelec Heat-shrink end caps for 95-240 sq. mm cables 3pcs TT242401
ETL TT242401
8033501686291
Etelec Heat-shrink end caps for indoor applications for single-core extruded-insulation cables up to 24 kV with copper wire or copper tape screen with the following characteristics:
- Execution: heat shrink
- Maximum insulation voltage: 24 kV
- Number of conductors: 1
- Min-max conductor cross-section: 95-240 sq mm
- Insulation degree: 12-20 kV
- Length: 450 mm
- Colour: Red
Kit contents: Non-marking outer sheaths, inner sheaths for electric field control, filler and thermo-fuse tapes, instructions.
Pack of 3 pieces.
€48.04
Items Available: 43
: 3
Kit of three heat-shrink end caps for indoor and outdoor applications for single-core extruded-insulation cables up to 24 kV with wire or copper tape shield.
Features:
- Family: Medium Voltage
- Primary Insulator Diameter: 20.8-30 mm
- Breakaway Line Length: 450 mm
- Outer Sheath Material: Polyolefin
- Operating Temperature: -20/+90 degrees
- Single-core cable
- Elicord cable
- Copper conductor
- Aluminum Conductor
- Copper wire shielding
- Copper Tape Shielding
There are no reviews
Data sheet
- Type: Terminals
