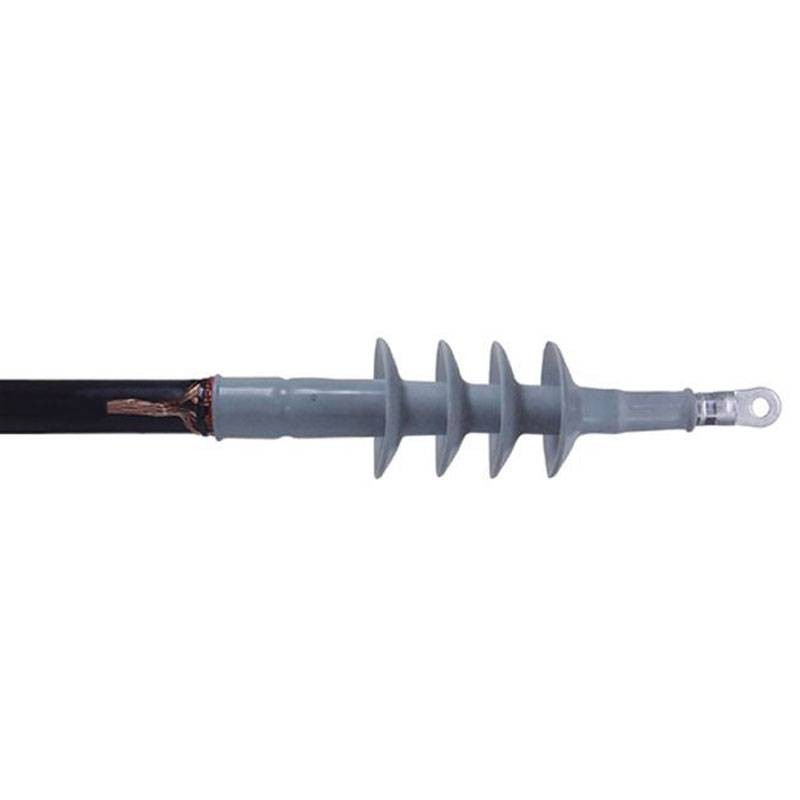

Cellpack Single-pole silicone outdoor terminal CAE-F 1P 36 kV 199198
CEL 199198
4010311054865
Cellpack CAE-F Unipolar Silicon Outdoor Terminal, for Unipolar Polymeric Cables, with the following characteristics:
-
Rated voltage: 18/30 (36) kV 19/33 (36) kV
-
Application: Outdoor, industrial or infrastructure use
-
Suitable for unipolar cables: PVC, PE, VPE, EPR
-
Min insulation diameter: 23.1 mm
-
Nominal cable cross-section: 50 mm² to 240 mm²
-
Mounting: Silicone slip-on for quick installation
-
Terminal length: 440 mm
€235.49
Items Available: 2
: 1
Cellpack unipolar silicone terminal for outdoor terminations up to 36 kV
The Cellpack CAE-F single-core silicone terminal is designed for use on single-core plastic cables (PVC, PE, VPE, EPR), with both removable and graphitized conductive layers. Ideal for outdoor environments, this terminal ensures reliable and long-lasting performance even in adverse weather conditions, thanks to its rugged, high-strength silicone construction.
Easy, safe and ready-to-use installation
Thanks to slip-on technology, installation is quick and safe. No special tools are required, making installation suitable even for urgent work or complex operating conditions. The terminal is compatible with compression lugs, offering versatility for different plant configurations.
Compatibility and applications
The CAE-F is suitable for:
-
High-voltage wiring (up to 36 kV) in industrial settings
-
Urban and rural electrical distribution systems
-
Terminal connections for MV secondary substations
-
Energy infrastructure projects exposed to the elements
Technical Characteristics Slip-on Cellpack Silicone Terminal
Electrical Characteristics
| Parameter | Value |
|---|---|
| Rated voltage U/U (Um) | 18/30 (36) kV - 19/33 (36) kV |
| Reference standard | CENELEC HD 629.1 |
Dimensions and Compatibility
| Parameter | Value |
|---|---|
| Length | 440 mm |
| Insulation diameter (minimum) | 23.1 mm |
| Screen diameter | 93 mm |
| Compatible cable cross section | 50 mm² to 240 mm² |
Installation and Materials
| Parameter | Value |
|---|---|
| Mounting | Slip-on (silicone) |
| Application | Exterior |
| End material | Silicone insulation |
| Can be used with compression lugs | Yes |
There are no reviews
Data sheet
- Type: Terminals
