3M 20 kV medium voltage terminal for unipolar cables 95-240 sq. mm 3 pcs
3MI 7100080124
4054596031326

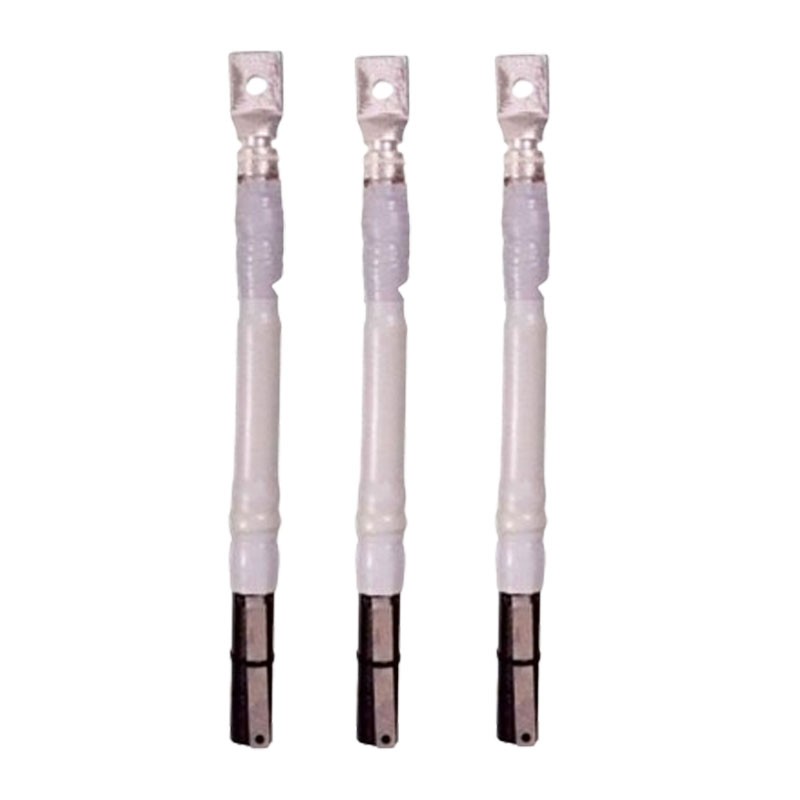

3M TB31-QT20/185 medium voltage 3-piece single-pole cable terminal with the following features:
- Indoor installation
- Type QTII smooth
- Rated insulation voltage to earth: U0 12 kV
- Rated insulation voltage between phase-to-phase: U 20 kV
- Maximum insulation voltage: Um 24 kV
- Dry test voltage in industrial frequency 50Hz: 50 kV
- Atmospheric impulse test voltage: 125 kV
The selling price is for 3 pcs.
Complete kit consisting of 3 indivisible pieces and accessories for proper operation of medium voltage, and for the execution of three single-pole terminations.
€120.36
Items Available: 4
: 2
TB31QT20 is an indoor Medium Voltage Termination for single-core extruded radial electric field cables with voltage 12/20 - 24 kV.
The insulator of the TB31QT20 consists of a single insulating body made of smooth anti-trace silicone rubber expanded on a spiral. The insulator also incorporates the electric field control element. Shrinkage is accomplished cold, without the use of equipment, by unwinding the spiral.

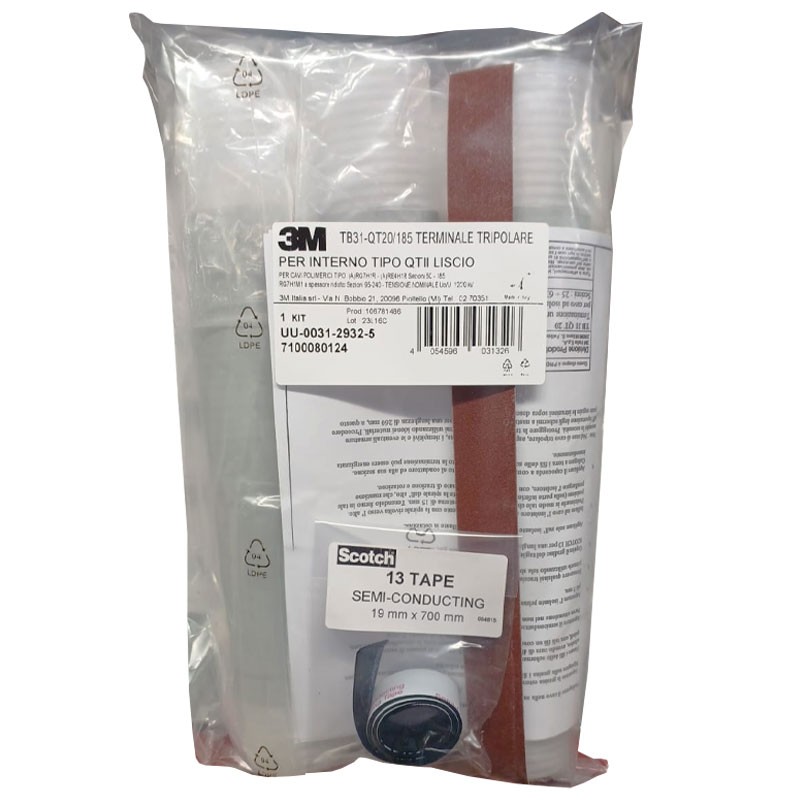

The package contains all the materials for making three single-pole terminations.
For installation on RG7H1R 12/20 kV type cables:
- Housable cross-sections: 50-185
- Diameter housable on primary insulation: 19.8 to 33 mm
- Diameter housable on outer sheath: 23 - 35 mm
- Maximum length: 279 mm
For installation on RG7H1M1 type cables (small diameter insulation) 12/20 kV:
- Housable cross-sections: 95-240
- Diameter housable on primary insulation: 19.8 - 33 mm
- Diameter housable on outer sheath: 23 35 mm
- Maximum length: 279 mm
There are no reviews
Data sheet
- Type: Terminals
