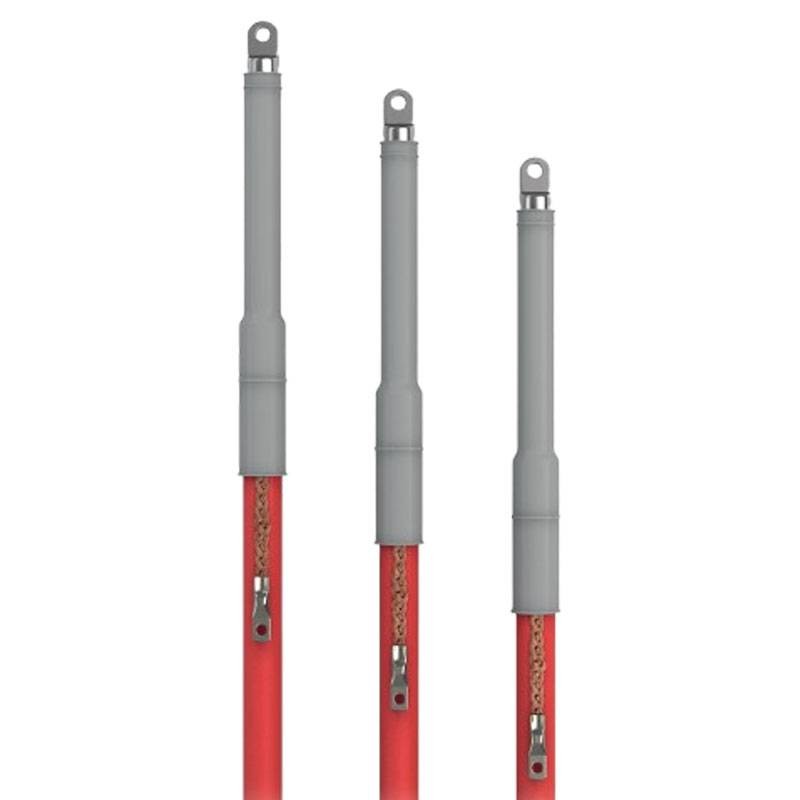

Etelec self-shrinking terminals for 24-36 kV cables 95-300 sq. mm 3pcs TBX20
ETL TBX20
8053323909019
Etelec self-shrinking terminal for unipolar cables, designed for indoor applications, the self-shrinking terminal provides effective insulation for 36 kV and 24 kV unipolar cables. The compact design makes it ideal for cabins with limited space, ensuring safe and reliable installation, with the following features:
-
Design: Self-tracting
-
Maximum insulation voltage: 36 kV
-
Number of conductors: 1
-
Conductor cross-section: 70-300 sq mm for voltage up to 36 kV
-
Conductor cross-section: 95-300 sq mm for voltage up to 24 kV
-
Insulation degree: 18/30 and 12/20 kV
-
Diameter on insulation: 19-40 mm
-
Terminal length: 390 mm
-
Color: Gray
-
Complete kit: Includes lubricant, insulation tapes and instructions for easy assembly
€144.88
Items Available: 8
Etelec Terminals Reliable 24-36 kV insulation, innovative and durable materials
Reliable insulation for unipolar cables up to 24 and 36 kV
This self-shrinking terminal is designed to provide safe and effective insulation for medium-voltage cables with extruded insulation. The compact design and absence of bells make it ideal for installations in cabins with limited space, without compromising electrical safety.
Innovative materials for high durability
The unique silicone rubber body offers excellent electric field control and anti-tracking properties, reducing the risk of partial discharge and extending the life of the connection system. Kit includes insulating tapes and silicone lubricant for easy installation.
Self-shrinking terminals copper aluminum compatibility and maximum safety
Compatibility with copper and aluminum conductors
The terminal is suitable for unipolar copper and aluminum conductors with wire or copper tape shielding. It covers a wide range of cross-sections, supporting conductors from 70 to 300 sq. mm for voltages up to 36 kV and 95 to 240 sq. mm for voltages up to 24 kV.
Safety and reliability under all conditions
With an operating temperature range of -20 to +90 degrees and self-extinguishing properties, the self-shrinking terminal ensures reliable protection over time. The insulation rating up to 24 kV makes it perfect for indoor applications on medium-voltage systems.
Technical Specifications Etelec Terminal
Terminal Information
| Feature | Value |
|---|---|
| Execution | Self-retraction |
| Application | Indoor and outdoor |
| Insulation grade | 18/30 and 12/20 kV |
| Maximum insulation voltage | 36 kV |
| Number of conductors | 1 |
| Conductor section | 70-300 sq. mm |
| Length (L) | 390 mm |
| Material Outer Sheath | Silicone |
| Outer Sheath Color | Gray |
| Operating Temperature | -20/+90 degrees |
| Self-extinguishing | Yes |
Cable Information
| Feature | Value |
|---|---|
| Rated insulation degree | 18/30 and 12/20 kV |
| Single-core cable | Yes |
| Elicord cable | Yes |
| Copper conductor | Yes |
| Aluminum conductor | Yes |
| Primary Insulator Diameter | 19-40 mm |
| Copper Wire Shielding | Yes |
| Copper Tape Shielding | Yes |
There are no reviews
Data sheet
- Diameter: 19mm
- Type: Terminals
- Cross-Section: 70-300 mmq
40mm
95-300 mmq
