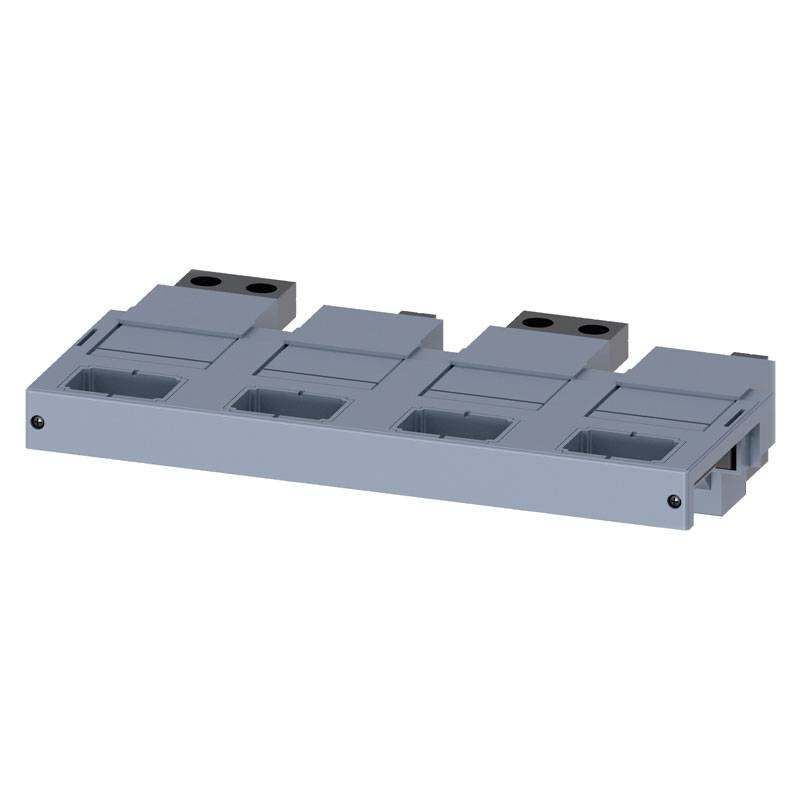

3WL10 and 3VA27 Siemens 4P Rear Terminal Adapter 3VW90110AL33
SIE 3VW90110AL33
4042949082637
Siemens horizontally or vertically rotatable main rear connections for 3WL10 and 3VA27 4-pole switches, ideal for fixed mounting, with the following features:
-
Main rear connections for fixed mounting
-
4-pole configuration
-
Rotatable positioning: horizontally or vertically
-

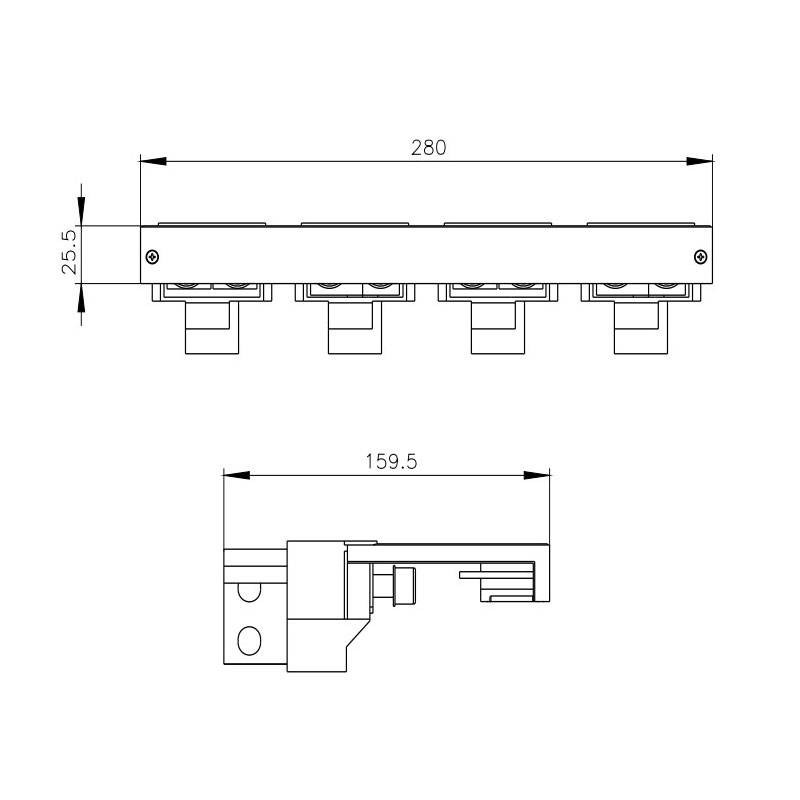

Compact design: 61 mm x 90 mm x 140 mm
-
Versatile solution for industrial electrical systems
€171.53
Items Available: 16
: 2
Back main connections Siemens versatility and integration
The Siemens module is designed to provide an efficient and adaptable electrical connection in installations using 3WL10 and 3VA27 series switches. With the ability to rotate, the rear connections can be oriented either horizontally or vertically, improving wiring flexibility in compact electrical panels.
Ideal for fixed mounting
This accessory is specifically designed for 4-pole fixed-mount switches, making it perfect for permanent installations in industrial environments, advanced civil electrical installations, and power distribution systems that require safety and reliability.
Compact design for optimized installations
With compact dimensions, it allows optimized space in electrical panels without compromising ease of installation and mechanical strength. The structure is designed to withstand the stresses typical of industrial environments.
Guaranteed compatibility
Fully compatible with Siemens 3WL10 and 3VA27 ranges, this accessory ensures seamless integration with circuit breakers, facilitating maintenance and expansion of existing electrical systems.
Technical Specifications Siemens terminal adapter
| Designation | Main rear connections |
| Mounting Type. | Fixed |
| Number of poles | 4 |
| Positioning | Horizontal/vertical rotatable |
| Compatibility | 3WL10 / 3VA27 series switches |
| Height | 61 mm |
| Width | 90 mm |
| Depth | 140 mm |
There are no reviews
Data sheet
- Type: Terminals
