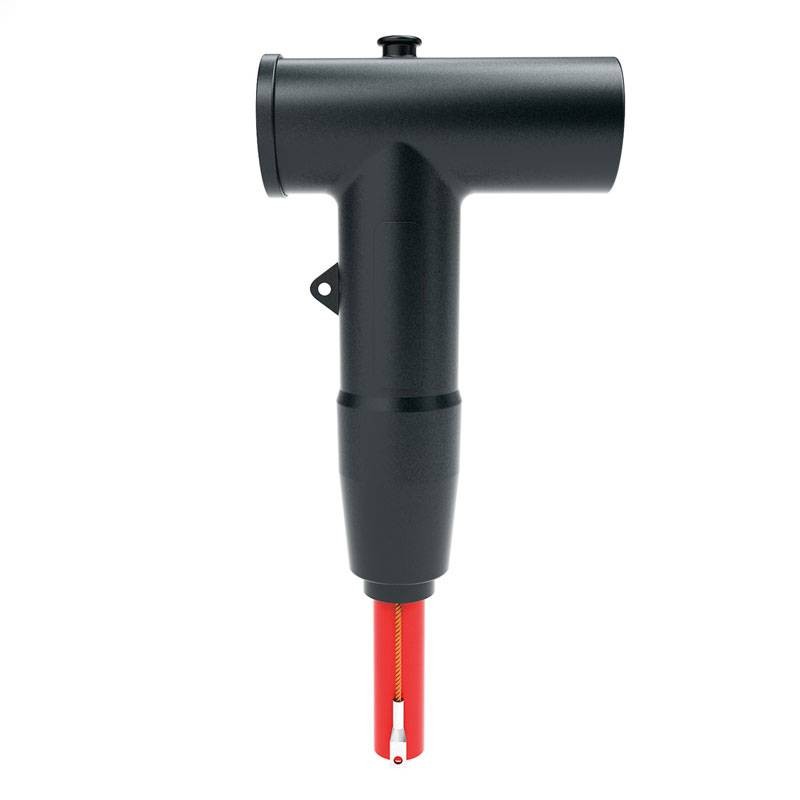

Etelec disconnectable T-terminal for 70-120 sq. mm cables Type C TS273226
ETL TS273226
8053323901990
Reliable Etelec disconnectable T-terminal designed for single-core cables with aluminum wire or tube shield. It provides safety and versatility for indoor and outdoor applications, with the following features:
-
Rated voltage: Up to 24 kV, maximum rating 630 A
-
Compatibility: For cables with copper or aluminum conductor (70-120 sq. mm)
-
Standard interface: Type C, conforming to Enel table GSCC006/7 rev. 03
-
Versatile installation: Suitable for indoor and outdoor applications
-
High-performance materials: EPDM body with mechanically clamped lug
-
Complete kit: Includes terminal, lug, accessories and instructions
€289.75
Items Available: 8
24 kV Disconnectable terminal, asymmetrical design and copper/aluminum compatibility
Reliability and safety for unipolar cables up to 24 kV
Etelec's disconnectable terminal is designed for safe and high-performance connections on medium-voltage unipolar cables. With its Type C interface, it ensures compatibility with standardized systems, offering simple and reliable installation.
Durable materials and asymmetrical design
Made of high-quality EPDM, the terminal ensures excellent electrical and mechanical resistance. The asymmetrical T-shaped design optimizes voltage distribution, reducing the risk of partial discharge and extending the life of the installation.
Compatible with copper and aluminum conductors
The terminal supports single-core cables with copper or aluminum conductors, with cross-sections from 70 to 120 sq mm and aluminum wire or tube shielding. Compatibility with different types of shielding expands its range of application.
Etelec T-terminal with mechanical lug for indoor and outdoor use
Mechanical lug for secure clamping
The kit includes a mechanical clamping lug made of tinned aluminum, which allows a quick and secure connection without the need for specific cable glands. This facilitates installation, reducing operating time and costs.
Versatility for indoor and outdoor applications
Designed to operate in a temperature range of -20 to +90 degrees, the terminal is self-extinguishing and provides maximum safety in any environmental condition, both indoors and outdoors.
Technical Specifications Disconnectable terminal
Receptacle Information
| Feature | Value |
|---|---|
| Socket type | External cone |
| Interface | C type |
| Scope | 630 A |
| Execution | Cold |
| Application | Indoor, outdoor |
Cable Information
| Feature | Value |
|---|---|
| Insulation degree | 12/20 kV |
| Copper conductor | Yes |
| Aluminum conductor | Yes |
| Number of conductors | 1 |
| Cable section | 70-120 sq. mm |
| Primary Insulator Diameter | 17.6-26.6 mm |
| Wire Shielding | Yes |
| Aluminum Tube Shielding | Yes |
Lug Information
| Feature | Value |
|---|---|
| Lug type included | Mechanical tightening |
| Connector material | Tin-plated aluminum |
| Number of poles | 1 |
| Clamping type | Mechanical screw |
| Copper conductor | Yes |
| Aluminum conductor | Yes |
Terminal Information
| Feature | Value |
|---|---|
| Type | Asymmetrical |
| Material | EPDM |
| Design Voltage | 12/20 (24) kV |
| Color | Black |
| Operating temperature | -20/+90 degrees |
| Self-extinguishing | Yes |
Dimensional Information
| Feature | Value |
|---|---|
| Length | 260 mm |
| Width | 85 mm |
| Depth | 196 mm |
There are no reviews
Data sheet
- Type: Terminals
- Cross-Section: 70-120 mmq
