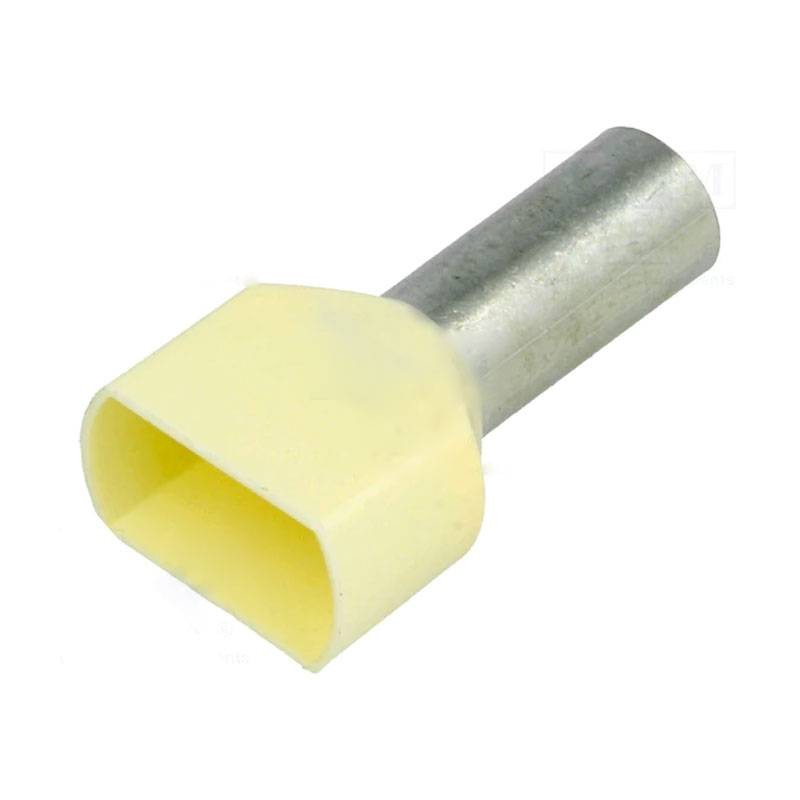

BM socket terminals 2x10 mm² ivory 100 pieces 00562
BMM 00562
8013629005624
BM bush terminals for copper conductors, pre-insulated, double cable with the following characteristics:
- Terminal material: tinned copper
- Insulation material: polypropylene (PP) without flame retardant
- Operating temperature: 105 °C max
- Cross-section: 2x10 mm²
- AWG/MCM cross-section: 8
- Color: ivory

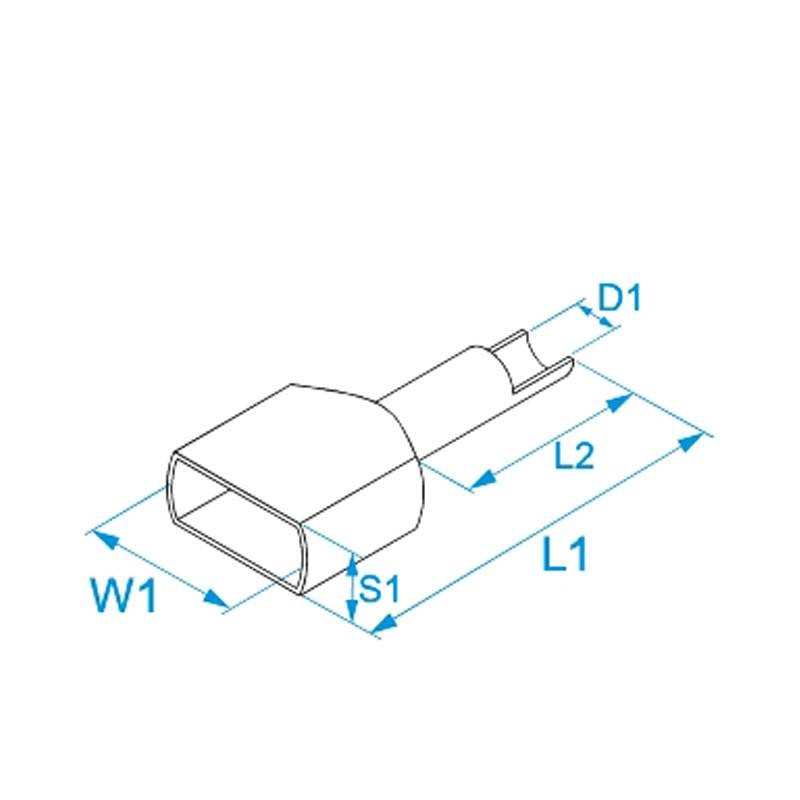

- Dimensions: 13x26x14x6.4x7.2 mm (W1 - L1 - L2 - D1 - S1)
- Reference standards: DIN 46228-1 (non-insulated socket terminals up to 50mm²), UL486F (insulated and non-insulated socket terminals), CSA C22.2 No.291-14 (insulated and non-insulated socket terminals)
Package of 100 pieces.
€18.87
Items Available: 58
: 17
There are no reviews
Data sheet
- Type: Terminals
- Cross-Section: 2-10mm9
