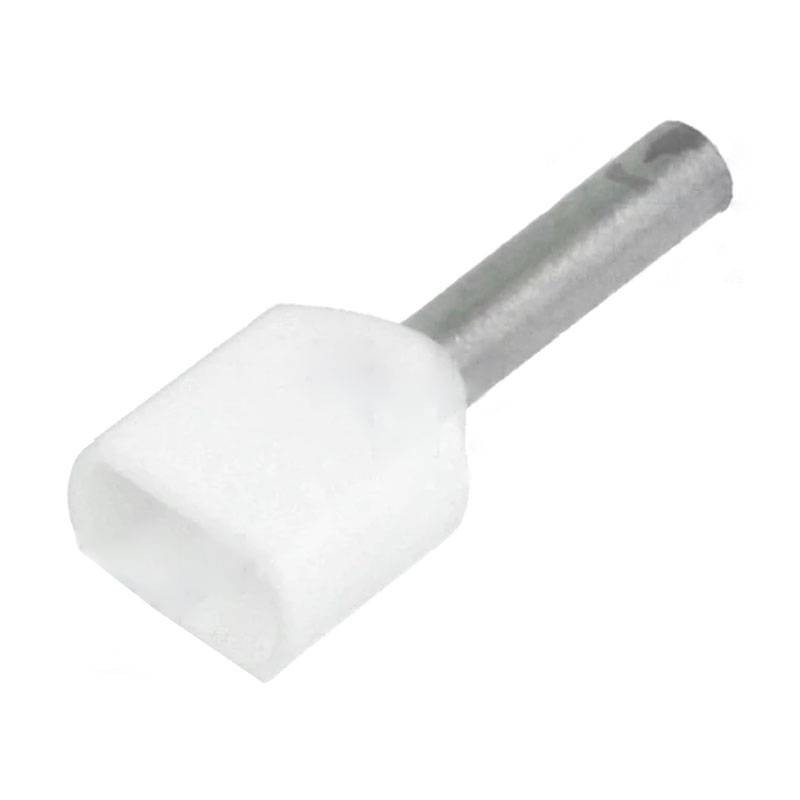

BM socket terminals 2x0.75 mm² white 200 pieces 00552
BMM 00552
8013629005525
BM bush terminals for copper conductors, pre-insulated, double cable with the following characteristics:
- Terminal material: tinned copper
- Insulation material: polypropylene (PP) without flame retardant
- Operating temperature: 105 °C max.
- Cross-section: 2x0.75 mm²
- AWG/MCM cross-section: 18
- Color: white

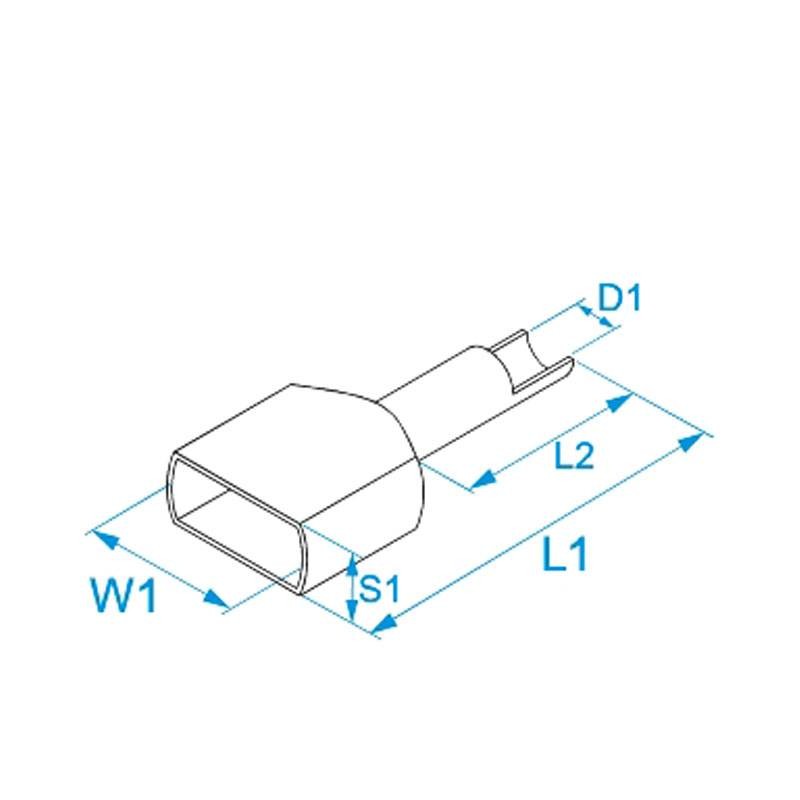

- Dimensions: 5x15x8x1.7x2.8 mm (W1 - L1 - L2 - D1 - S1)
- Reference standards: DIN 46228-1 (non-insulated sleeve terminals up to 50mm²), UL486F (insulated and non-insulated sleeve terminals), CSA C22.2 No.291-14 (insulated and non-insulated sleeve terminals)
Pack of 200 pieces.
BM socket terminals 2x0.75 mm² white 200 pieces 00552
€5.72
€5.72
Tax included
Tax included
Pay in installments with Klarna
Items Available: 36
Data sheet
- Type:
- Terminals
- Cross-Section:
- 2-0,75mmq
