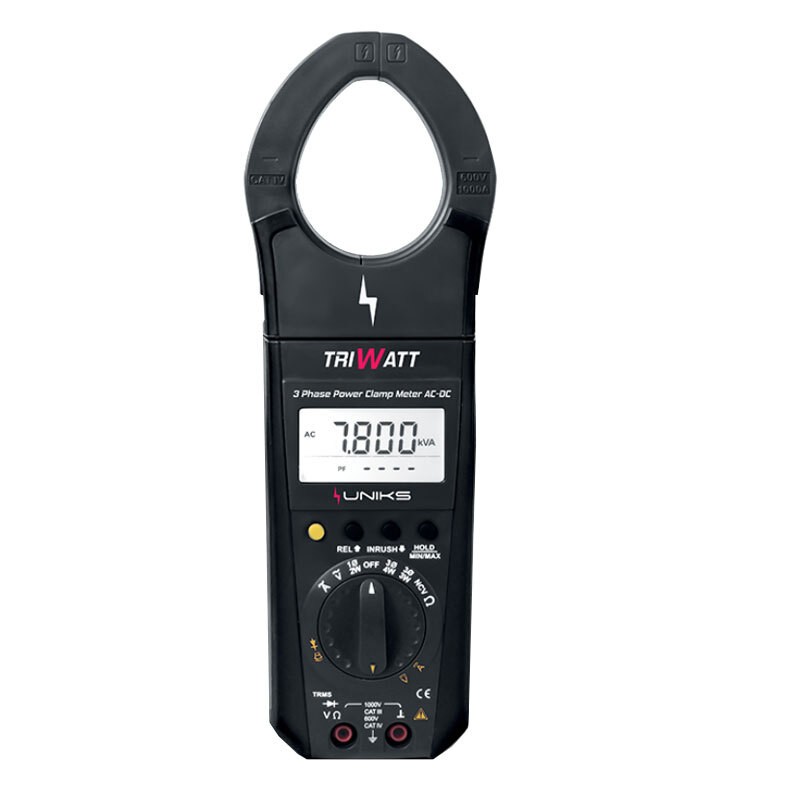

Uniks Triwatt current clamp for three-phase network analysis TRIWATT
UNK TRIWATT
8052461741956
Uniks Triwatt current clamp for three-phase network analysis RMS, AC/DC 1000A is an innovative current clamp for performing three-phase network analysis in balanced and unbalanced systems.
€446.06
Items Available: 4
Designed to increase user safety and comfort during measuring procedures. Rotating jaws facilitate measuring in hard to reach places or vertical bars.
The jaws can be opened or closed with the trigger positioned on the underside. This allows the user to place their hand in a safer location than a live conductor.
The trigger design will also make it easier to open the jaws by allowing the force needed to open to be distributed.
In addition to detecting quantities such as voltage, current, frequency, power and energy, the TRIWATT Current Clamp also indicates the values of Voltage and Current Harmonics up to the 50th.
Features:
- DC and AC Power
- Active, Reactive and Active Power in single-phase systems
- Active, Reactive and Active Power in three-phase systems with and without neutral (3W or 4W neutral)
- Algorithm for calculating three-phase power in balanced or unbalanced systems
- Measurement of Energy KWh
- Measurement of current or voltage harmonics up to 49th
- Power Factor / Cosphi
- Phase shift angle
- THD% Total Harmonic Distortion
- Distortion Factor (DF)
- Crest Factor (CF)
- Peak Value
Power and Energy:
TRIWATT allows to calculate the TOTAL POWER in THREE-PHASE systems even in case of Unbalanced loads. Through the switch it will be immediate to choose the type of system that you want to analyze:
- 2W Single-phase 4W Three-phase with Neutral 4W Three-phase without Neutral
- Once the measurement STEPS have been performed, it will be possible to display all the parameters related to the Total Power of the system or to the single Powers for Phase 1-2-3.
- The display will show the value of the POWER FACTOR/Cosphi and if it is Capacitive or Inductive.
- It will be possible to measure the consumed ENERGY directly from the Display.
TRIWATT is an innovative clamp meter to perform three-phase network analysis in balanced and unbalanced systems. Designed to increase user safety and comfort during measurement procedures. Rotating jaws facilitate measurement in hard-to-access locations or vertical busbars.
The jaws can be opened or closed with the trigger located on the underside. This allows the user to place their hand in a safer location than a live conductor. The trigger design will also make it easier to open the jaws by allowing you to distribute the force needed to open.
Features:
- AC/DC voltage up to 1000V (True RMS)
- AC/DC Current up to 1000A (True RMS)
- Ah (Ampere hour)
- Inrush Current (InRush)
- Active, Reactive and Active Power in single phase systems
- Active, Reactive and Active Power in three-phase systems with and without neutral (3W or 4W neutral)
- Algorithm for calculating three-phase power in balanced or unbalanced systems
- Measurement of Energy KWh
- Measurement of current or voltage harmonics up to 49th
- Power Factor / Cosphi
- Phase shift angle
- THD% Total Harmonic Distortion
- Distortion Factor (DF)
- Crest Factor (CF)
- Peak Value
- VFD Filter
- Advanced hold function for scrolling through values after locking them
- NCV (Non contact Voltage)
- Display Seven-segment display
- Character height Main display character: 11.5 mm
- Secondary display character: 7.2 mm
- Number of digits 4 digits
- Maximum counting 9999 counts for V, I and P and 4000 counts for Resistance
- Out-of-scale indication "OL" is displayed
- Polarity indication The " ? "is displayed for negative values
- Power supply Battery 9V battery according to IEC6F22 IEC6LR61
- Consumption 14 mA average (without backlight) Battery life
- Battery life Approx. 48 hours
- Electrical safety: According to IEC 61010?1 2010?06
- Measurement category CAT III 1000V CAT IV 600V
- Pollution degree 2
- High Voltage (HV) 7.4 kV between housing and input - 4.26 kV between housing with jaws and input
- Ingress protection IP 50 for housing IP 20 for terminal
- According to IEC 61010?1 2010?06
- EMC Electromagnetic compatibility
- Emission IEC 61326:2012 Class B
- Immunity IEC61326:2012 IEC61000?4?2 8 kV Air discharge 4 kV Contact discharge IEC61000?4?3 3V/m
- Environmental Conditions Operating Temperature Range 0 to +55 °C - Storage Temperature Range ?20 °C +70 °C
- Relative humidity 0 to 75% non-condensing
- Altitude up to 2000m
- Mechanical Configuration
- Dimensions 90mm(W) x 270mm (L) x 70mm(H)
- Weight 600 grams approx. including batteries
There are no reviews
Data sheet
- Type: Current Clamps
